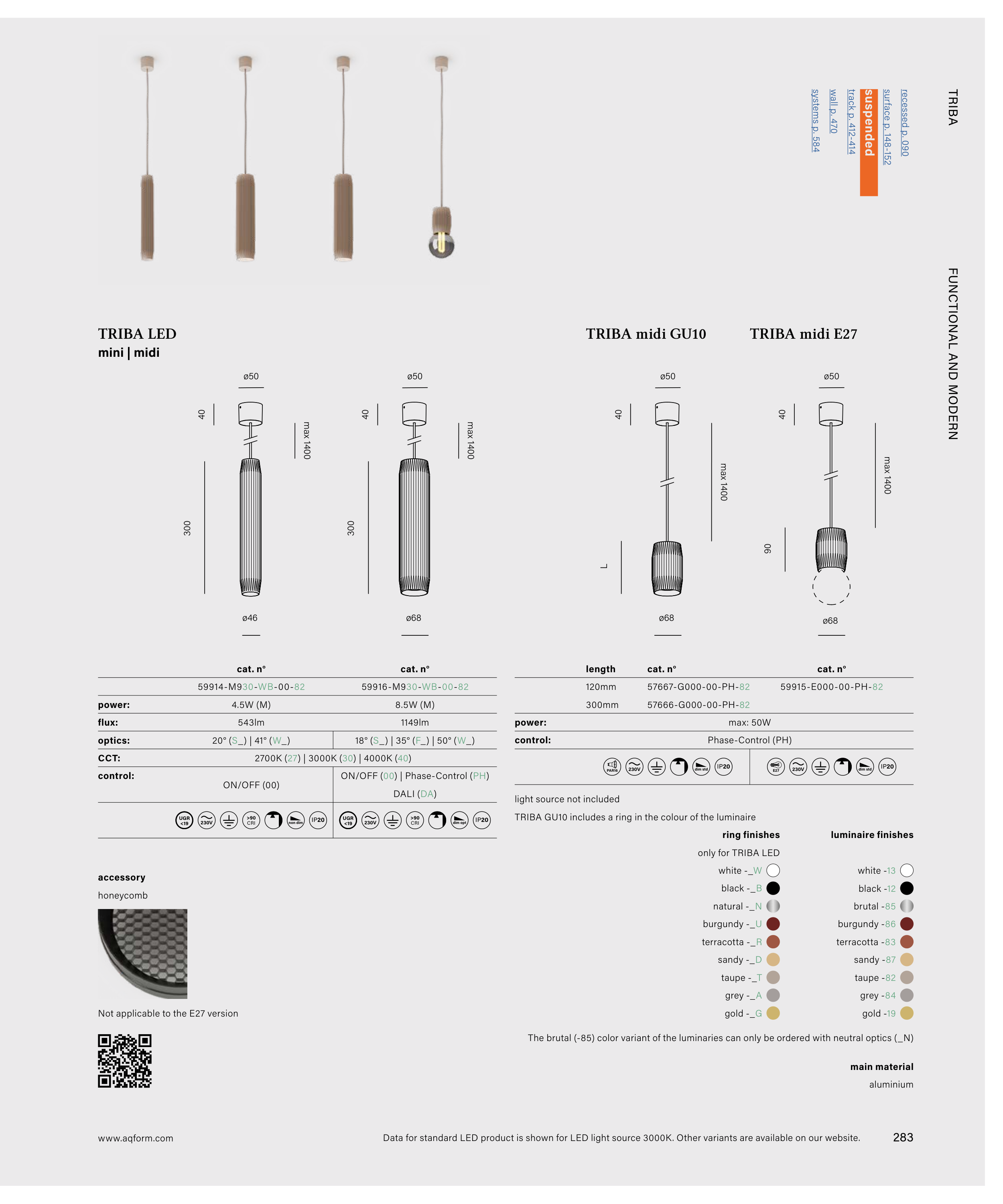

TRIBA
ø46
300
40
ø50
max 1400
ø68
300
40
ø50
max 1400
ø68
90
40
ø50
max 1400
ø68
L
40
ø50
max 1400
4.5W (M)
543lm
8.5W (M)
1149lm
2700K (27) | 3000K (30) | 4000K (40)
18° (S_) | 35° (F_) | 50° (W_)
20° (S_) | 41° (W_)
ON/OFF (00) | Phase-Control (PH)
DALI (DA)
ON/OFF (00)
59914-M930-WB-00-82
59916-M930-WB-00-82
59915-E000-00-PH-82
57667-G000-00-PH-82
57666-G000-00-PH-82
cat. n°
cat. n°
cat. n°
cat. n°
230V
230V
230V
230V
E27
PAR16
CRI
>90
CRI
>90
dim opt
non dim
IP20
IP20
dim std
dim std
power:
control:
max: 50W
Phase-Control (PH)
TRIBA LED
mini | midi
TRIBA midi E27
TRIBA midi GU10
only for TRIBA LED
power:
flux:
optics:
CCT:
control:
aluminium
IP20
IP20
accessory
honeycomb
light source not included
main material
natural -_N
brutal -85
The brutal (-85) color variant of the luminaries can only be ordered with neutral optics (_N)
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
white -_W
burgundy -_U
burgundy -86
black -_B
sandy -_D
sandy -87
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
Not applicable to the E27 version
length
120mm
300mm
recessed p. 090
surface p. 148-152
suspended
track p. 412-414
wall p. 470
systems p. 584
UGR
<19
UGR
<19
TRIBA GU10 includes a ring in the colour of the luminaire
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
FUNCTIONAL AND MODERN
