35
62
L
cat. n°

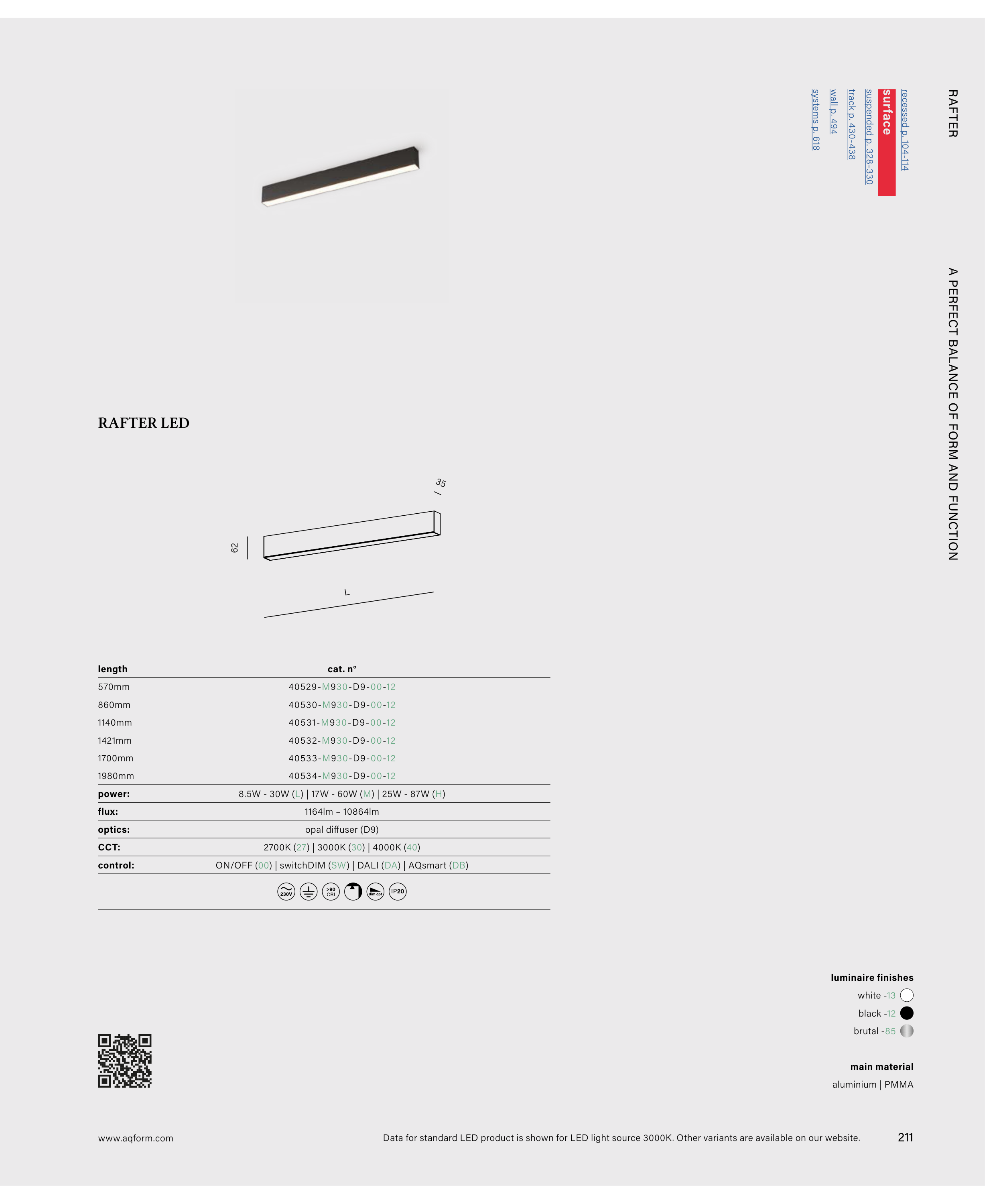

RAFTER LED
40529-M930-D9-00-12
40530-M930-D9-00-12
40531-M930-D9-00-12
40532-M930-D9-00-12
40533-M930-D9-00-12
40534-M930-D9-00-12
length
570mm
860mm
1140mm
1421mm
1700mm
1980mm
8.5W - 30W (L) | 17W - 60W (M) | 25W - 87W (H)
1164lm – 10864lm
2700K (27) | 3000K (30) | 4000K (40)
opal diffuser (D9)
ON/OFF (00) | switchDIM (SW) | DALI (DA) | AQsmart (DB)
power:
flux:
optics:
CCT:
control:
230V
CRI
>90
dim opt
IP20
white -13
black -12
luminaire finishes
main material
RAFTER
aluminium | PMMA
brutal -85
recessed p. 104-114
surface
suspended p. 328-330
track p. 430-438
wall p. 494
systems p. 618
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
211
A PERFECT BALANCE OF FORM AND FUNCTION
