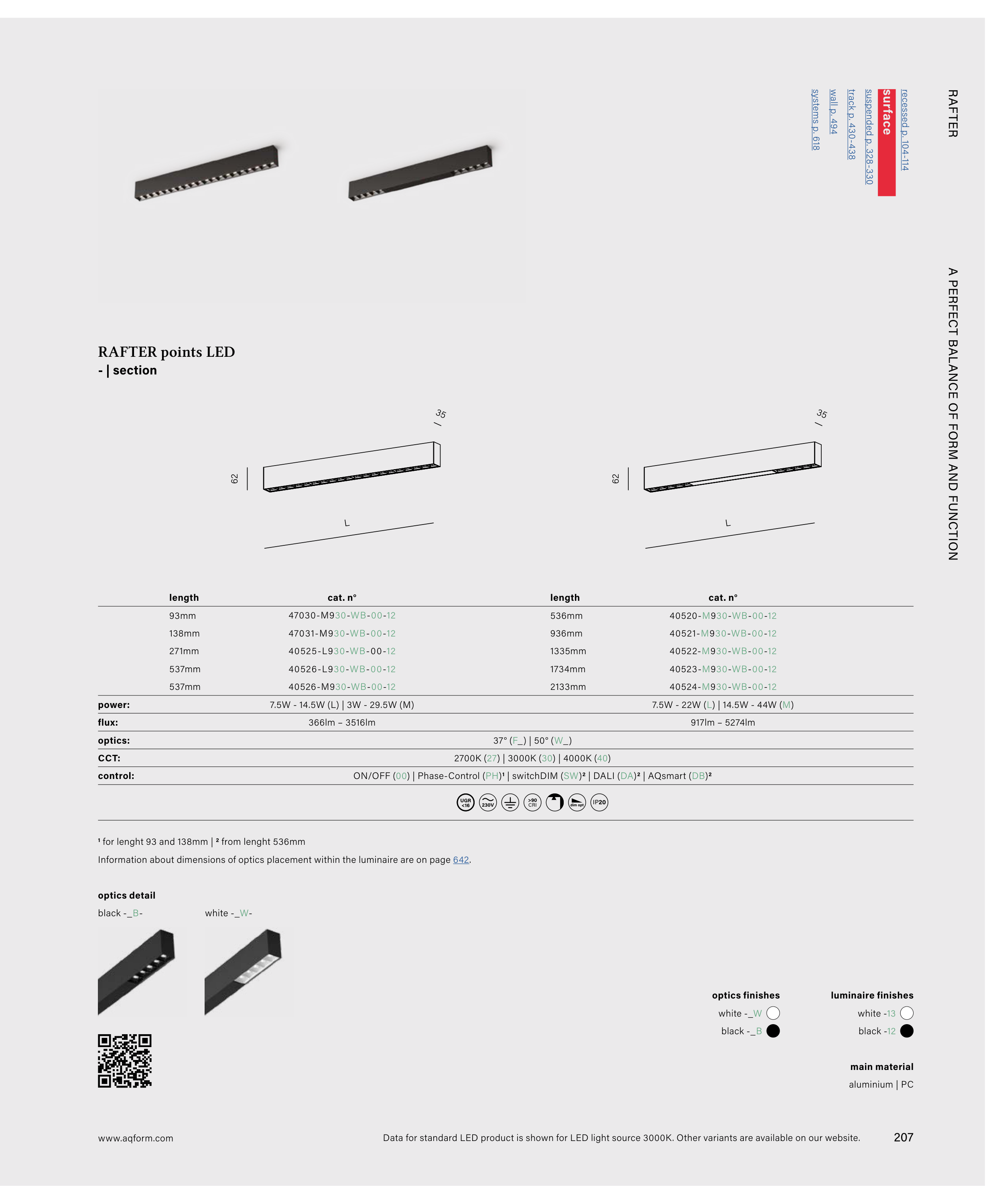

RAFTER points LED
- | section
white -_W
black -_B
optics finishes
optics detail
black -_B-
white -_W-
main material
RAFTER
cat. n°
cat. n°
47030-M930-WB-00-12
47031-M930-WB-00-12
40525-L930-WB-00-12
40526-L930-WB-00-12
40526-M930-WB-00-12
40520-M930-WB-00-12
40521-M930-WB-00-12
40522-M930-WB-00-12
40523-M930-WB-00-12
40524-M930-WB-00-12
length
length
93mm
138mm
271mm
537mm
537mm
536mm
936mm
1335mm
1734mm
2133mm
7.5W - 14.5W (L) | 3W - 29.5W (M)
366lm – 3516lm
7.5W - 22W (L) | 14.5W - 44W (M)
917lm – 5274lm
2700K (27) | 3000K (30) | 4000K (40)
37° (F_) | 50° (W_)
ON/OFF (00) | Phase-Control (PH)1 | switchDIM (SW)2 | DALI (DA)2 | AQsmart (DB)2
power:
flux:
optics:
CCT:
control:
230V
UGR
<16
CRI
>90
dim opt
IP20
Information about dimensions of optics placement within the luminaire are on page 642.
1 for lenght 93 and 138mm | 2 from lenght 536mm
recessed p. 104-114
surface
suspended p. 328-330
track p. 430-438
wall p. 494
systems p. 618
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
