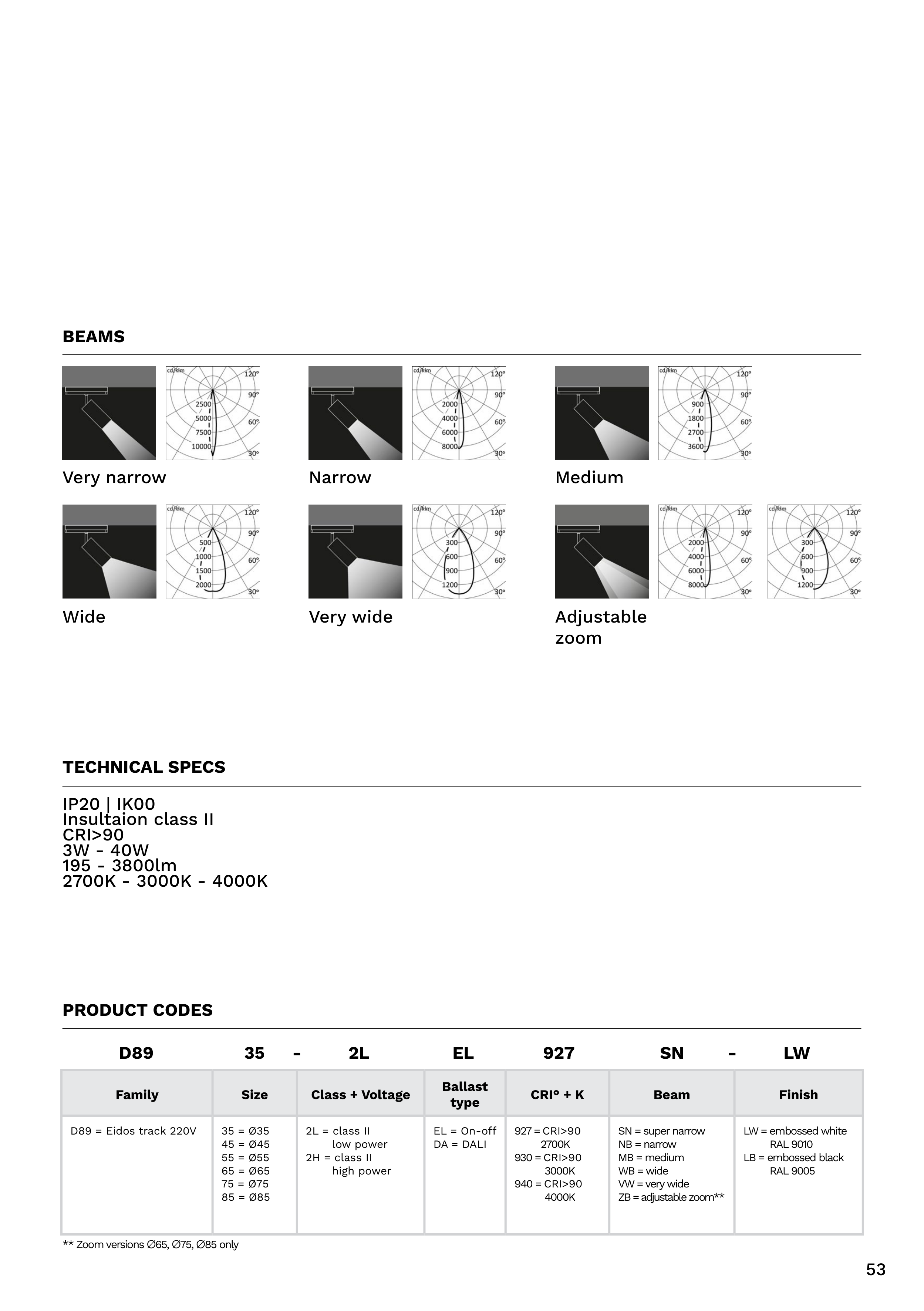

53
BEAMS
Narrow
Wide
Very narrow
Very wide
Medium
PRODUCT CODES
Family
Size
Class + Voltage
Ballast
type
CRI° + K
Beam
Finish
D89 = Eidos track 220V
35 = Ø35
45 = Ø45
55 = Ø55
65 = Ø65
75 = Ø75
85 = Ø85
2L = class II
low power
2H = class II
high power
EL = On-off
DA = DALI
927 = CRI>90
2700K
930 = CRI>90
3000K
940 = CRI>90
4000K
SN = super narrow
NB = narrow
MB = medium
WB = wide
VW = very wide
ZB = adjustable zoom**
LW = embossed white
RAL 9010
LB = embossed black
RAL 9005
D89
35
2L
EL
SN
927
LW
-
-
** Zoom versions Ø65, Ø75, Ø85 only
Adjustable
zoom
IP20 | IK00
Insultaion class II
CRI>90
3W - 40W
195 - 3800lm
2700K - 3000K - 4000K
TECHNICAL SPECS
