21
BOSSINI
BLACK LINE
21
BOSSINI
Z00002
Parti esterne
External parts
Aufputzteile
Parties externes
Partes externas
Детали наружныеДетали наружные
100
210
120
n45
n45
119
104
2
ATTENZIONE: LA PARTE INCASSO NON FA PARTE DEL CODICE INZ003
MA SERVE SOLO PER QUOTARE L'ALTEZZA TOTALE CON LA
PARTE ESTERNA ASSEMBLATA
INZ003
100
210
120
42
76
G 1/2"
G 1/2"
G 1/2"
G 1/2"
G 1/2"
HOT
COLD
IN
IN
OUT
OUT
OUT
192
38
9
138
17
69
G 1/2"
OUT
G 1/2"
OUT
Ø 45
Ø 45
119
40-57 15
6
Z00061
Parti esterne
External parts
Aufputzteile
Parties externes
Partes externas
Детали наружныеДетали наружные
119
40-57
15
210
100
138
120
45
45
6
119
40-57
15
210
100
138
120
45
45
6

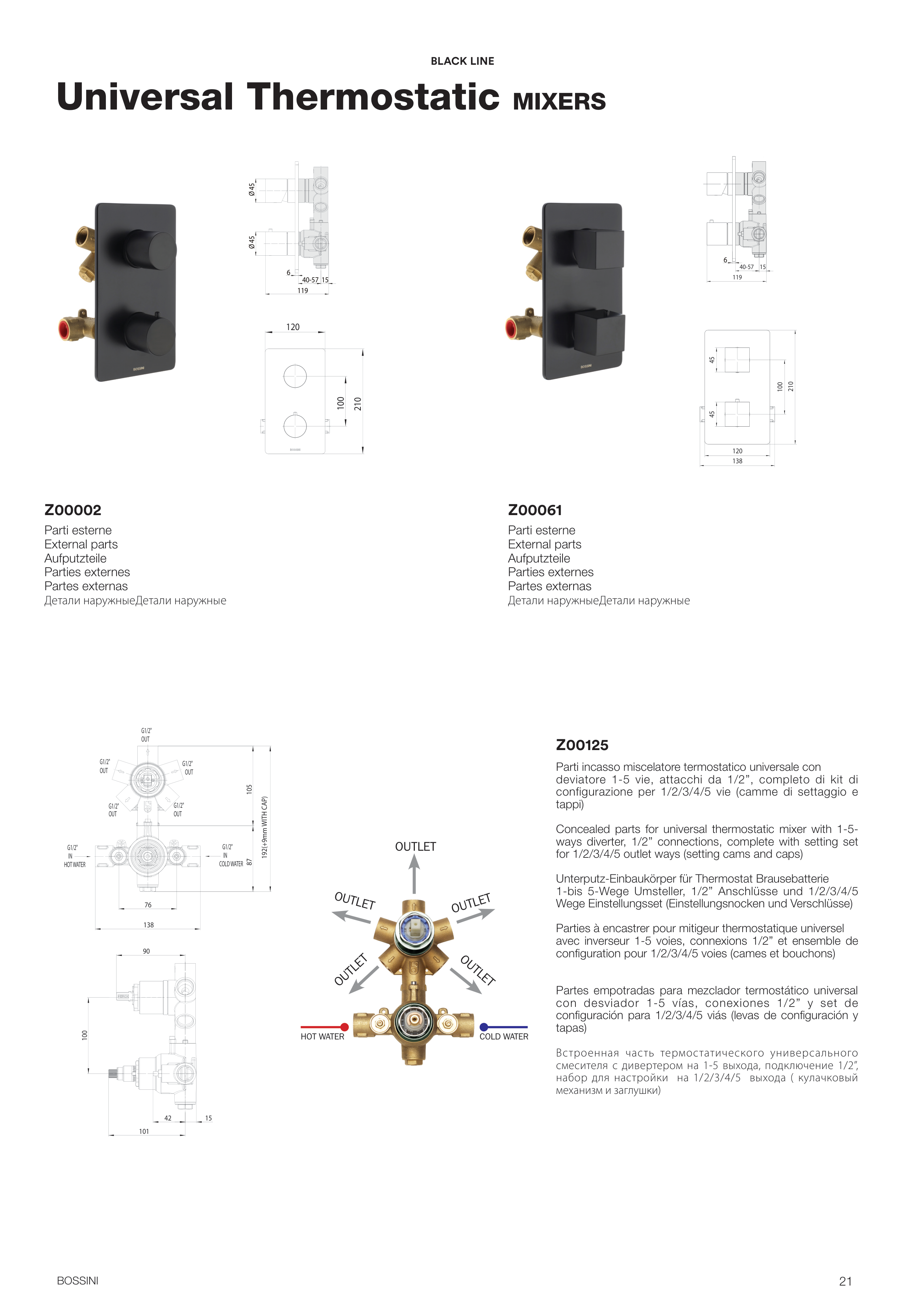

Universal Thermostatic MIXERS
Z00125
Parti incasso miscelatore termostatico universale con
deviatore 1-5 vie, attacchi da 1/2”, completo di kit di
configurazione per 1/2/3/4/5 vie (camme di settaggio e
tappi)
Concealed parts for universal thermostatic mixer with 1-5-
ways diverter, 1/2” connections, complete with setting set
for 1/2/3/4/5 outlet ways (setting cams and caps)
Unterputz-Einbaukörper für Thermostat Brausebatterie
1-bis 5-Wege Umsteller, 1/2” Anschlüsse und 1/2/3/4/5
Wege Einstellungsset (Einstellungsnocken und Verschlüsse)
Parties à encastrer pour mitigeur thermostatique universel
avec inverseur 1-5 voies, connexions 1/2” et ensemble de
configuration pour 1/2/3/4/5 voies (cames et bouchons)
Partes empotradas para mezclador termostático universal
con desviador 1-5 vías, conexiones 1/2” y set de
configuración para 1/2/3/4/5 viás (levas de configuración y
tapas)
Встроенная часть термостатического универсального
смесителя с дивертером на 1-5 выхода, подключение 1/2”,
набор для настройки на 1/2/3/4/5 выхода ( кулачковый
механизм и заглушки)
OUTLET
OUTLET
OUTLET
OUTLET
OUTLET
HOT WATER
COLD WATER
101
100
90
15
42
G1/2"
IN
HOT WATER
G1/2"
IN
COLD WATER
G1/2"
OUT
G1/2"
OUT
G1/2"
OUT
G1/2"
OUT
G1/2"
OUT
138
192(+9mm WITH CAP)
76
87
105
101
100
90
15
42
G1/2"
IN
HOT WATER
G1/2"
IN
COLD WATER
G1/2"
OUT
G1/2"
OUT
G1/2"
OUT
G1/2"
OUT
G1/2"
OUT
138
192(+9mm WITH CAP)
76
87
105
BLACK LINE
