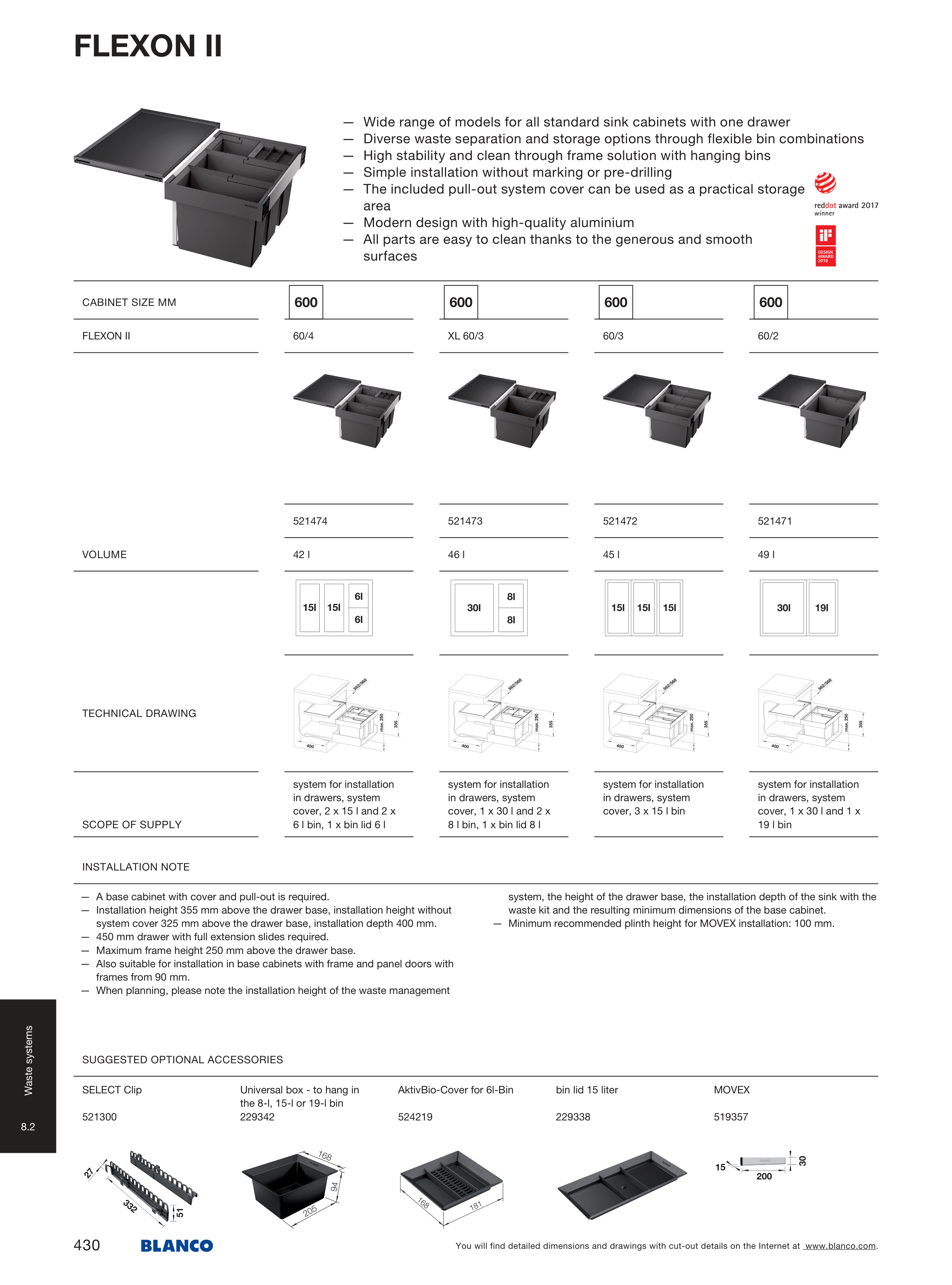

FLEXON II
— Wide range of models for all standard sink cabinets with one drawer
— Diverse waste separation and storage options through flexible bin combinations
— High stability and clean through frame solution with hanging bins
— Simple installation without marking or pre-drilling
— The included pull-out system cover can be used as a practical storage
area
— Modern design with high-quality aluminium
— All parts are easy to clean thanks to the generous and smooth
surfaces
SUGGESTED OPTIONAL ACCESSORIES
CABINET SIZE MM
FLEXON II
60/4
XL 60/3
60/3
60/2
521 474
521 473
521 472
521 471
VOLUME
42 l
46 l
45 l
49 l
TECHNICAL DRAWING
400
355
max. 250
562/568
562/568
400
355
max. 250
400
355
max. 250
562/568
400
355
max. 250
562/568
SCOPE OF SUPPLY
system for installation
in drawers, system
cover, 2 x 15 l and 2 x
6 l bin, 1 x bin lid 6 l
system for installation
in drawers, system
cover, 1 x 30 l and 2 x
8 l bin, 1 x bin lid 8 l
system for installation
in drawers, system
cover, 3 x 15 l bin
system for installation
in drawers, system
cover, 1 x 30 l and 1 x
19 l bin
— A base cabinet with cover and pull-out is required.
— Installation height 355 mm above the drawer base, installation height without
system cover 325 mm above the drawer base, installation depth 400 mm.
— 450 mm drawer with full extension slides required.
— Maximum frame height 250 mm above the drawer base.
— Also suitable for installation in base cabinets with frame and panel doors with
frames from 90 mm.
— When planning, please note the installation height of the waste management
system, the height of the drawer base, the installation depth of the sink with the
waste kit and the resulting minimum dimensions of the base cabinet.
— Minimum recommended plinth height for MOVEX installation: 100 mm.
INSTALLATION NOTE
SELECT Clip
521 300
332
27
Universal box - to hang in
the 8-l, 15-l or 19-l bin
229 342
AktivBio-Cover for 6l-Bin
524 219
bin lid 15 liter
229 338
MOVEX
519 357
200
15
30
Waste systems
8.2
430
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
