SUGGESTED OPTIONAL ACCESSORIES

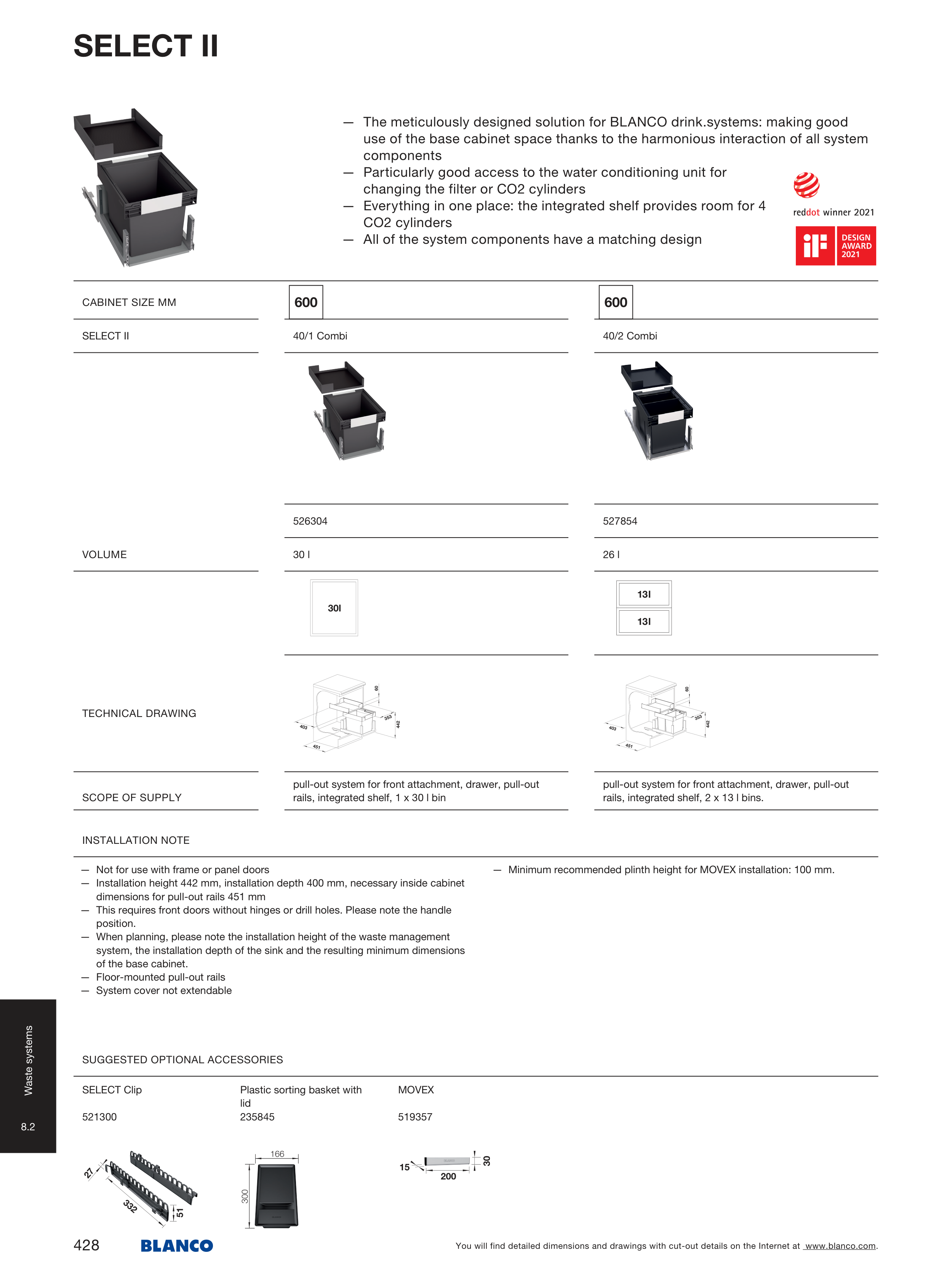

SELECT II
— The meticulously designed solution for BLANCO drink.systems: making good
use of the base cabinet space thanks to the harmonious interaction of all system
components
— Particularly good access to the water conditioning unit for
changing the filter or CO2 cylinders
— Everything in one place: the integrated shelf provides room for 4
CO2 cylinders
— All of the system components have a matching design
CABINET SIZE MM
SELECT II
40/1 Combi
40/2 Combi
526 304
527 854
VOLUME
30 l
26 l
30l
TECHNICAL DRAWING
60
353
403
451
442
60
353
403
451
442
SCOPE OF SUPPLY
pull-out system for front attachment, drawer, pull-out
rails, integrated shelf, 1 x 30 l bin
pull-out system for front attachment, drawer, pull-out
rails, integrated shelf, 2 x 13 l bins.
— Not for use with frame or panel doors
— Installation height 442 mm, installation depth 400 mm, necessary inside cabinet
dimensions for pull-out rails 451 mm
— This requires front doors without hinges or drill holes. Please note the handle
position.
— When planning, please note the installation height of the waste management
system, the installation depth of the sink and the resulting minimum dimensions
of the base cabinet.
— Floor-mounted pull-out rails
— System cover not extendable
— Minimum recommended plinth height for MOVEX installation: 100 mm.
INSTALLATION NOTE
SELECT Clip
521 300
332
27
Plastic sorting basket with
lid
235 845
MOVEX
519 357
200
15
30
Waste systems
8.2
428
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
