SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

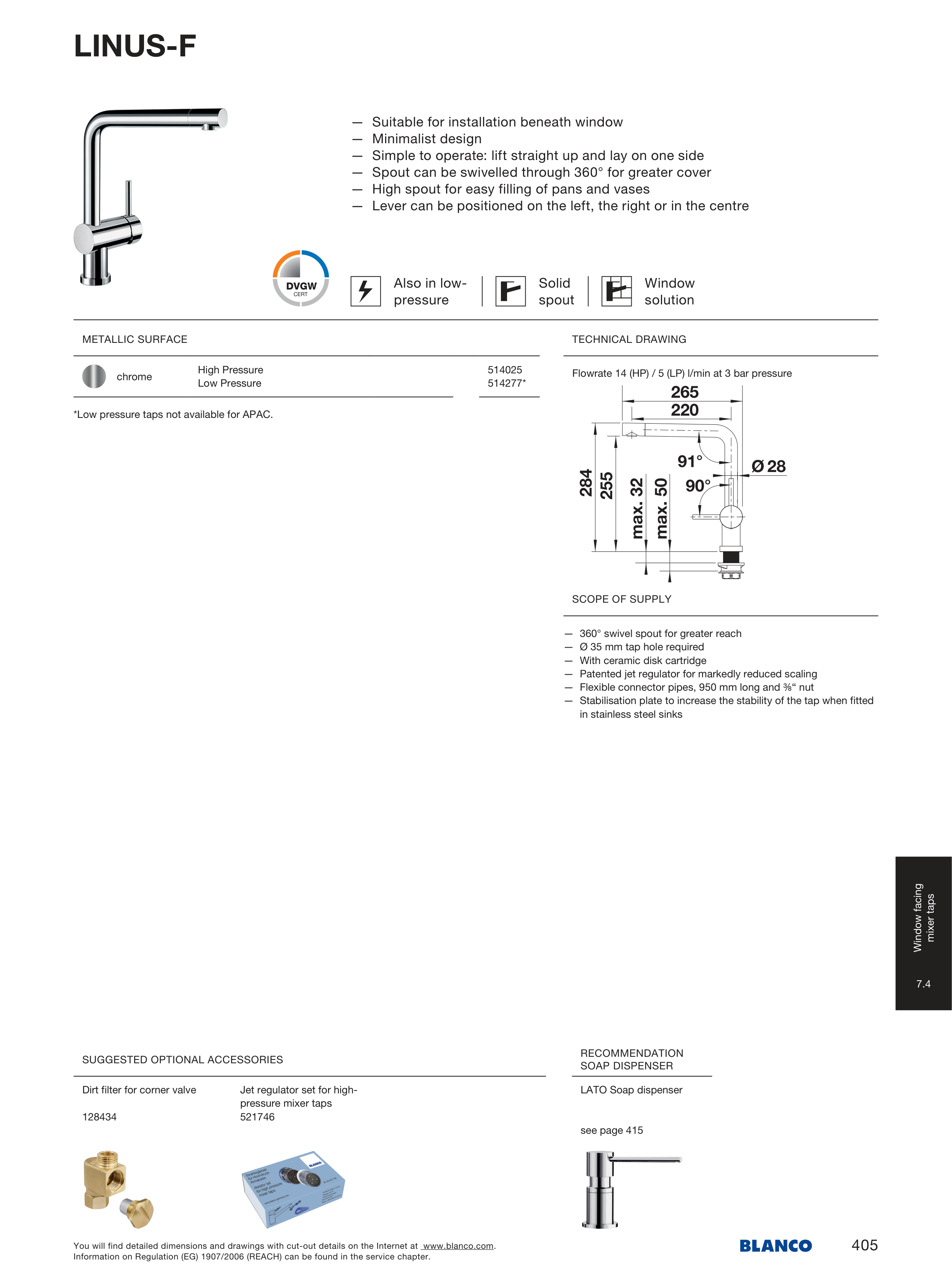

LINUS-F
— Suitable for installation beneath window
— Minimalist design
— Simple to operate: lift straight up and lay on one side
— Spout can be swivelled through 360° for greater cover
— High spout for easy filling of pans and vases
— Lever can be positioned on the left, the right or in the centre
Also in low-
pressure
Solid
spout
Window
solution
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 950 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
METALLIC SURFACE
chrome
High Pressure
Low Pressure
514 025
514 277 *
220
265
Ø 28
284
255
90°
91°
max. 32
max. 50
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 14 (HP) / 5 (LP) l/min at 3 bar pressure
*Low pressure taps not available for APAC.
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Window facing
mixer taps
7.4
405
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
