SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

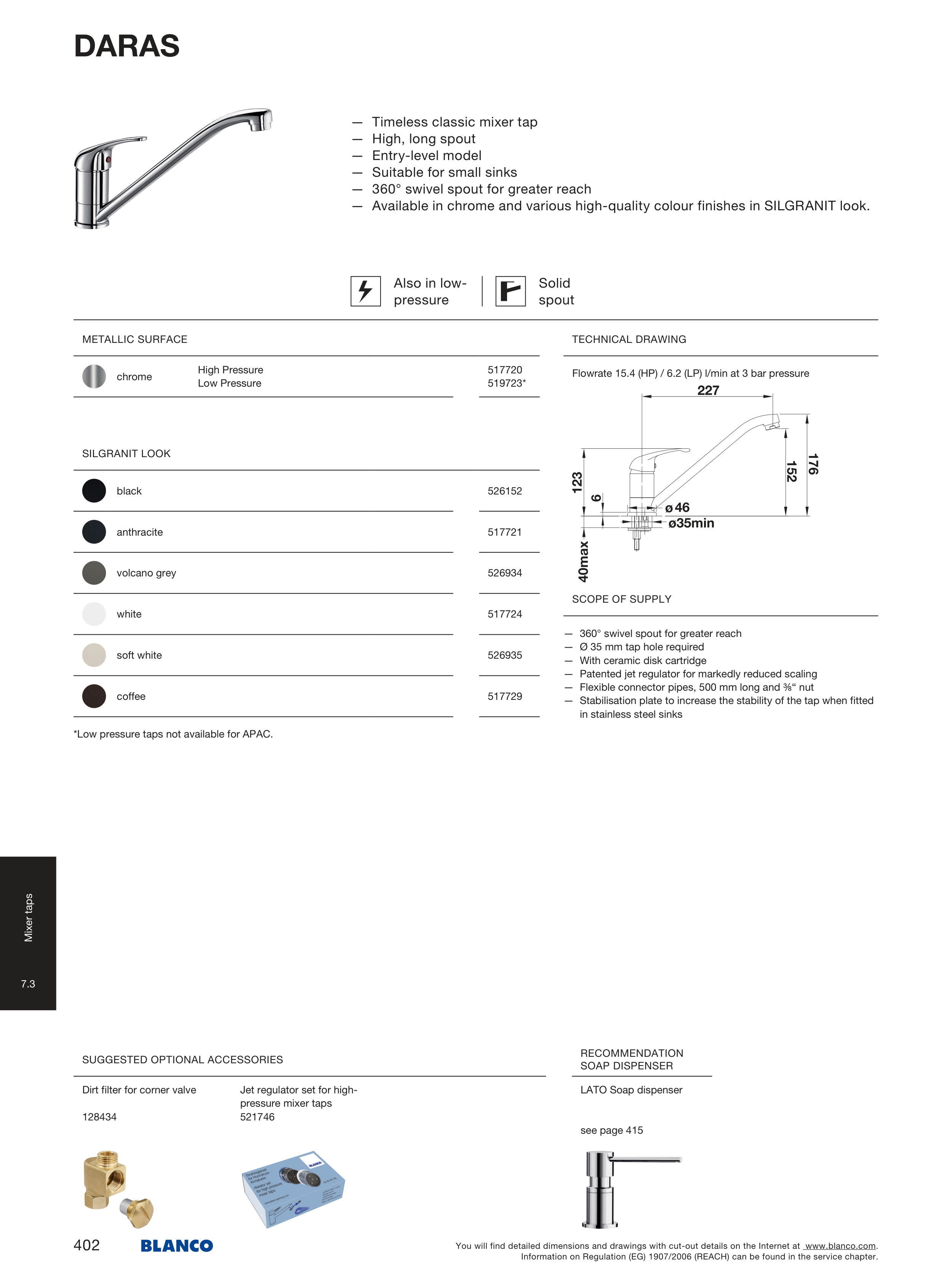

DARAS
— Timeless classic mixer tap
— High, long spout
— Entry-level model
— Suitable for small sinks
— 360° swivel spout for greater reach
— Available in chrome and various high-quality colour finishes in SILGRANIT look.
Also in low-
pressure
Solid
spout
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Flexible connector pipes, 500 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
METALLIC SURFACE
chrome
High Pressure
Low Pressure
517 720
519 723 *
SILGRANIT LOOK
black
526 152
anthracite
517 721
volcano grey
526 934
white
517 724
soft white
526 935
coffee
517 729
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 15.4 (HP) / 6.2 (LP) l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Jet regulator set for high-
pressure mixer taps
521 746
Mixer taps
7.3
*Low pressure taps not available for APAC.
402
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
