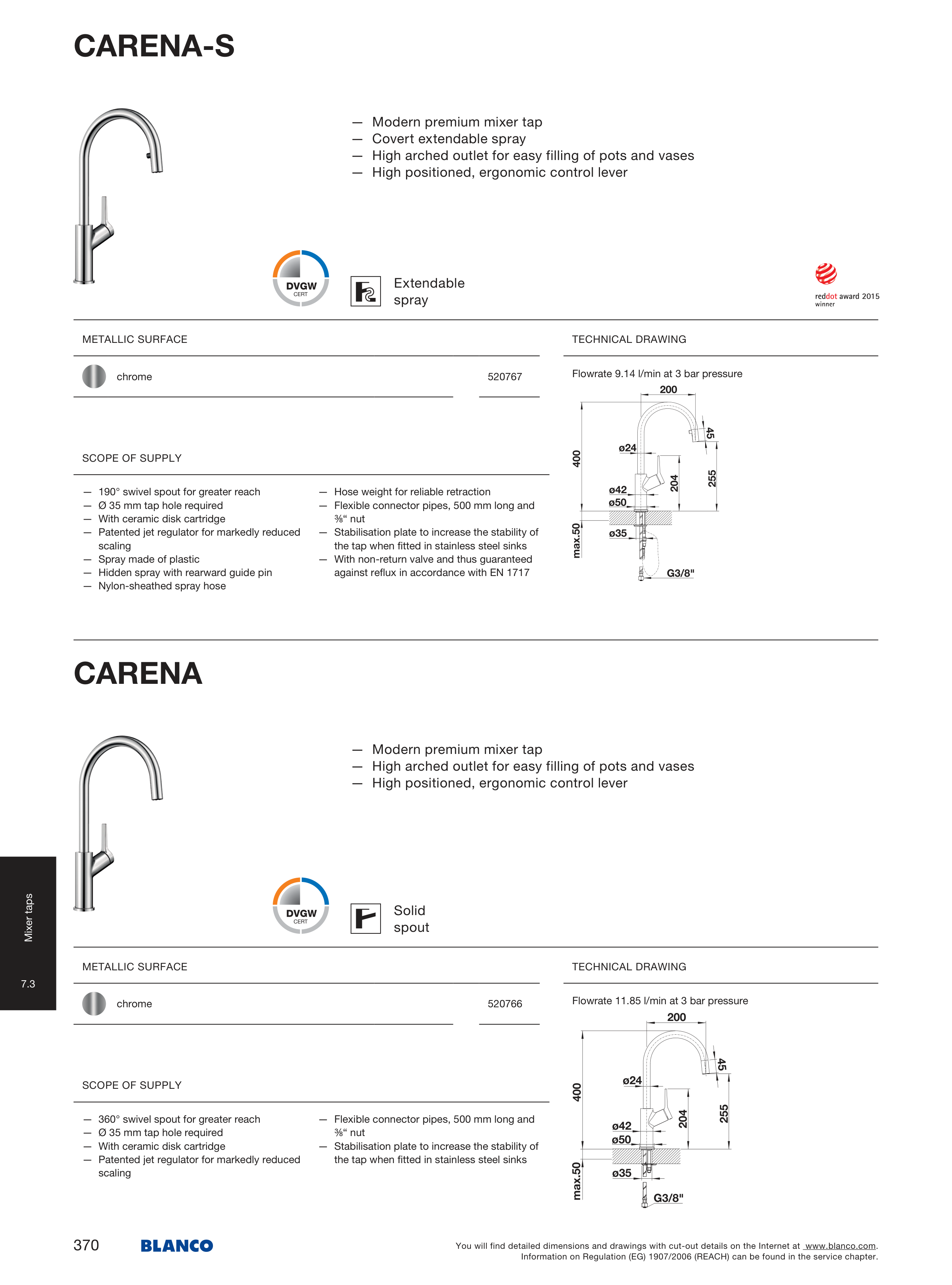

CARENA-S
— Modern premium mixer tap
— Covert extendable spray
— High arched outlet for easy filling of pots and vases
— High positioned, ergonomic control lever
Extendable
spray
METALLIC SURFACE
chrome
520 767
Flowrate 9.14 l/min at 3 bar pressure
TECHNICAL DRAWING
SCOPE OF SUPPLY
— 190° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced
scaling
— Spray made of plastic
— Hidden spray with rearward guide pin
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 500 mm long and
⅜“ nut
— Stabilisation plate to increase the stability of
the tap when fitted in stainless steel sinks
— With non-return valve and thus guaranteed
against reflux in accordance with EN 1717
CARENA
— Modern premium mixer tap
— High arched outlet for easy filling of pots and vases
— High positioned, ergonomic control lever
Solid
spout
METALLIC SURFACE
chrome
520 766
Flowrate 11.85 l/min at 3 bar pressure
TECHNICAL DRAWING
SCOPE OF SUPPLY
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced
scaling
— Flexible connector pipes, 500 mm long and
⅜“ nut
— Stabilisation plate to increase the stability of
the tap when fitted in stainless steel sinks
Mixer taps
7.3
370
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
