SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

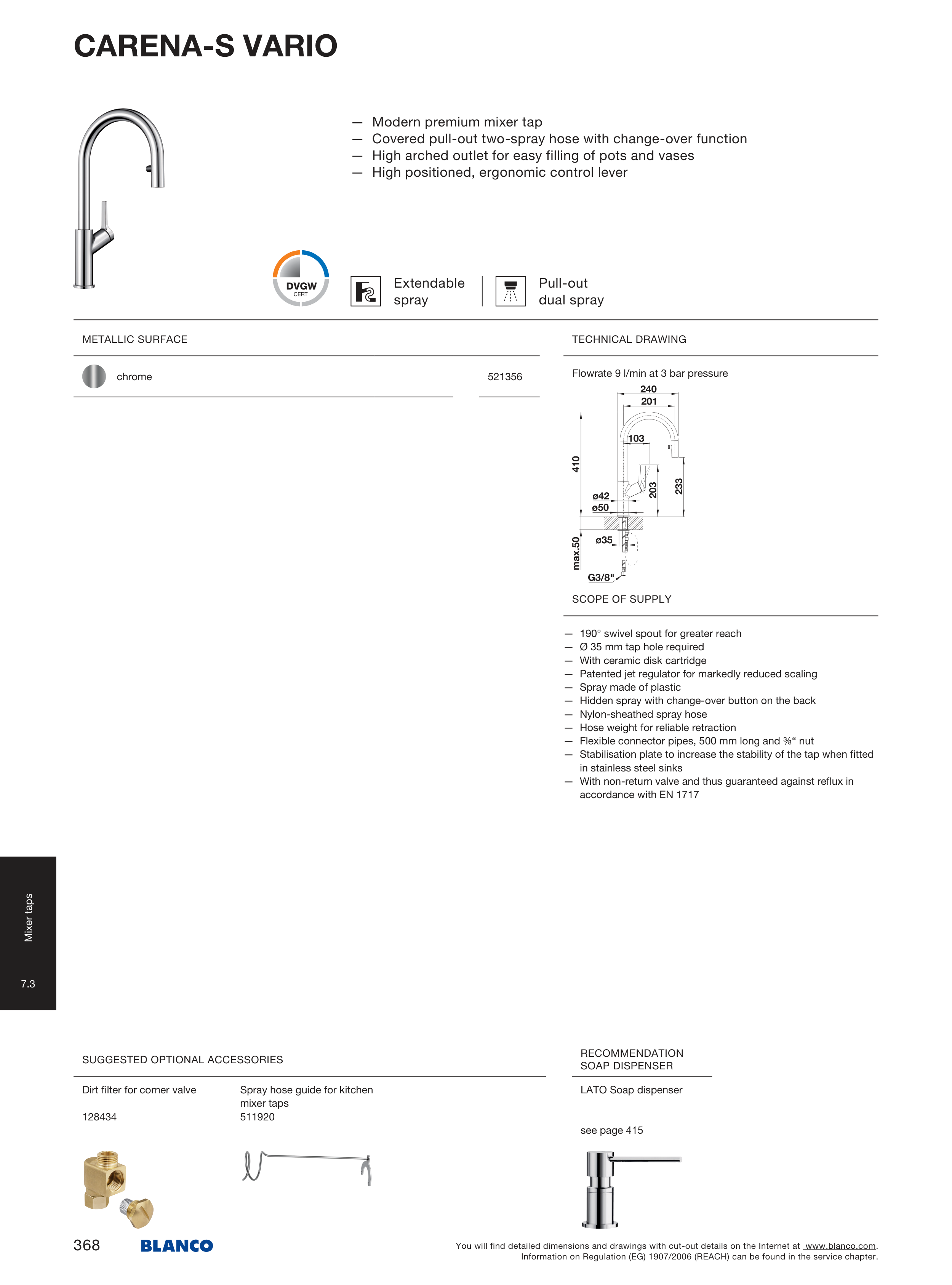

CARENA-S VARIO
— Modern premium mixer tap
— Covered pull-out two-spray hose with change-over function
— High arched outlet for easy filling of pots and vases
— High positioned, ergonomic control lever
Extendable
spray
Pull-out
dual spray
— 190° swivel spout for greater reach
— Ø 35 mm tap hole required
— With ceramic disk cartridge
— Patented jet regulator for markedly reduced scaling
— Spray made of plastic
— Hidden spray with change-over button on the back
— Nylon-sheathed spray hose
— Hose weight for reliable retraction
— Flexible connector pipes, 500 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
— With non-return valve and thus guaranteed against reflux in
accordance with EN 1717
METALLIC SURFACE
chrome
521 356
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 9 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Spray hose guide for kitchen
mixer taps
511 920
Mixer taps
7.3
368
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
