SUGGESTED OPTIONAL ACCESSORIES
RECOMMENDATION
SOAP DISPENSER

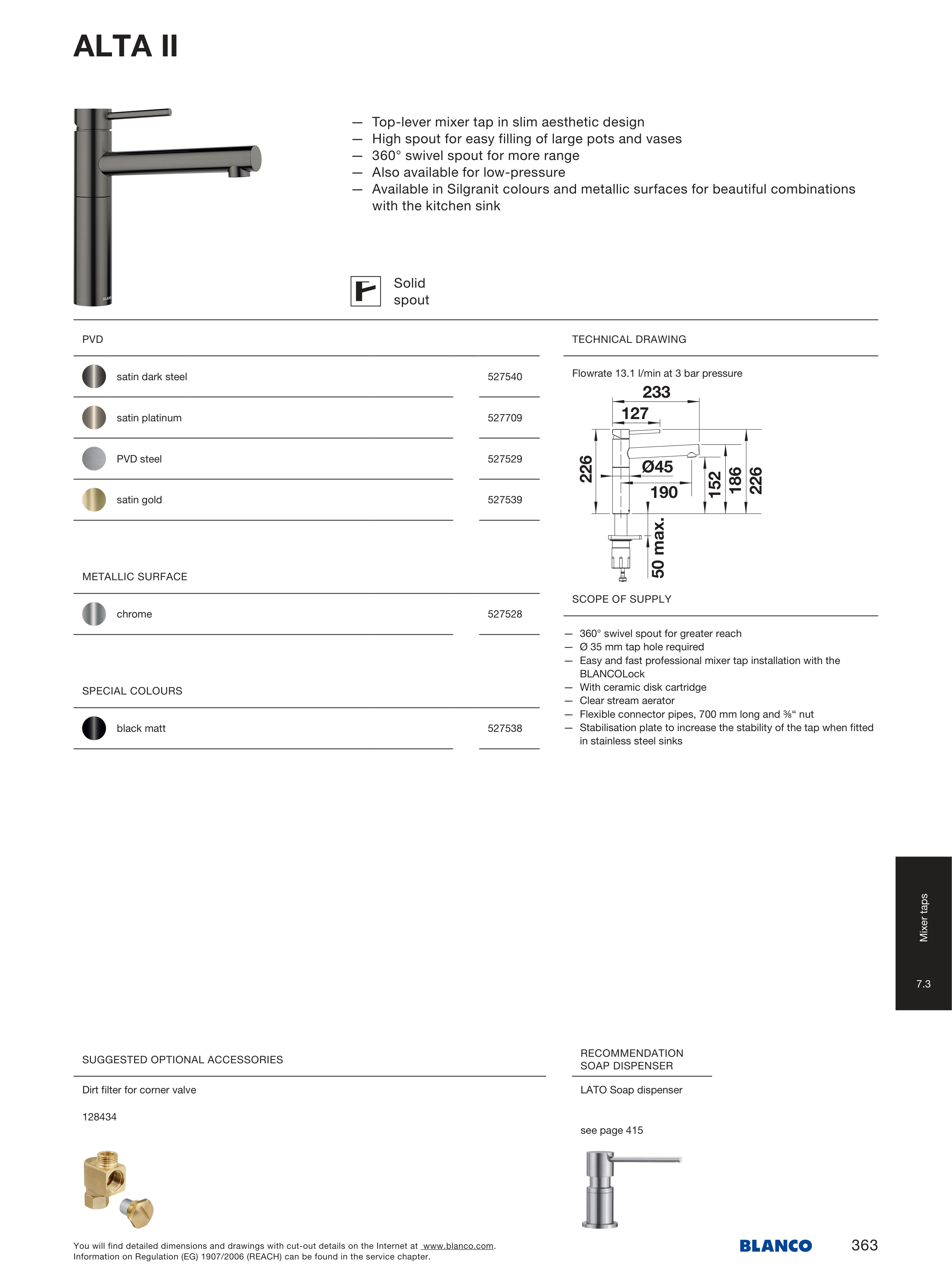

ALTA II
— Top-lever mixer tap in slim aesthetic design
— High spout for easy filling of large pots and vases
— 360° swivel spout for more range
— Also available for low-pressure
— Available in Silgranit colours and metallic surfaces for beautiful combinations
with the kitchen sink
Solid
spout
— 360° swivel spout for greater reach
— Ø 35 mm tap hole required
— Easy and fast professional mixer tap installation with the
BLANCOLock
— With ceramic disk cartridge
— Clear stream aerator
— Flexible connector pipes, 700 mm long and ⅜“ nut
— Stabilisation plate to increase the stability of the tap when fitted
in stainless steel sinks
PVD
satin dark steel
527 540
satin platinum
527 709
PVD steel
527 529
satin gold
527 539
METALLIC SURFACE
chrome
527 528
SPECIAL COLOURS
black matt
527 538
233
127
186
226
152
226
Ø45
190
50 max.
TECHNICAL DRAWING
SCOPE OF SUPPLY
Flowrate 13.1 l/min at 3 bar pressure
LATO Soap dispenser
see page 415
Dirt filter for corner valve
128 434
Mixer taps
7.3
363
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
