SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH DINAS 45 S

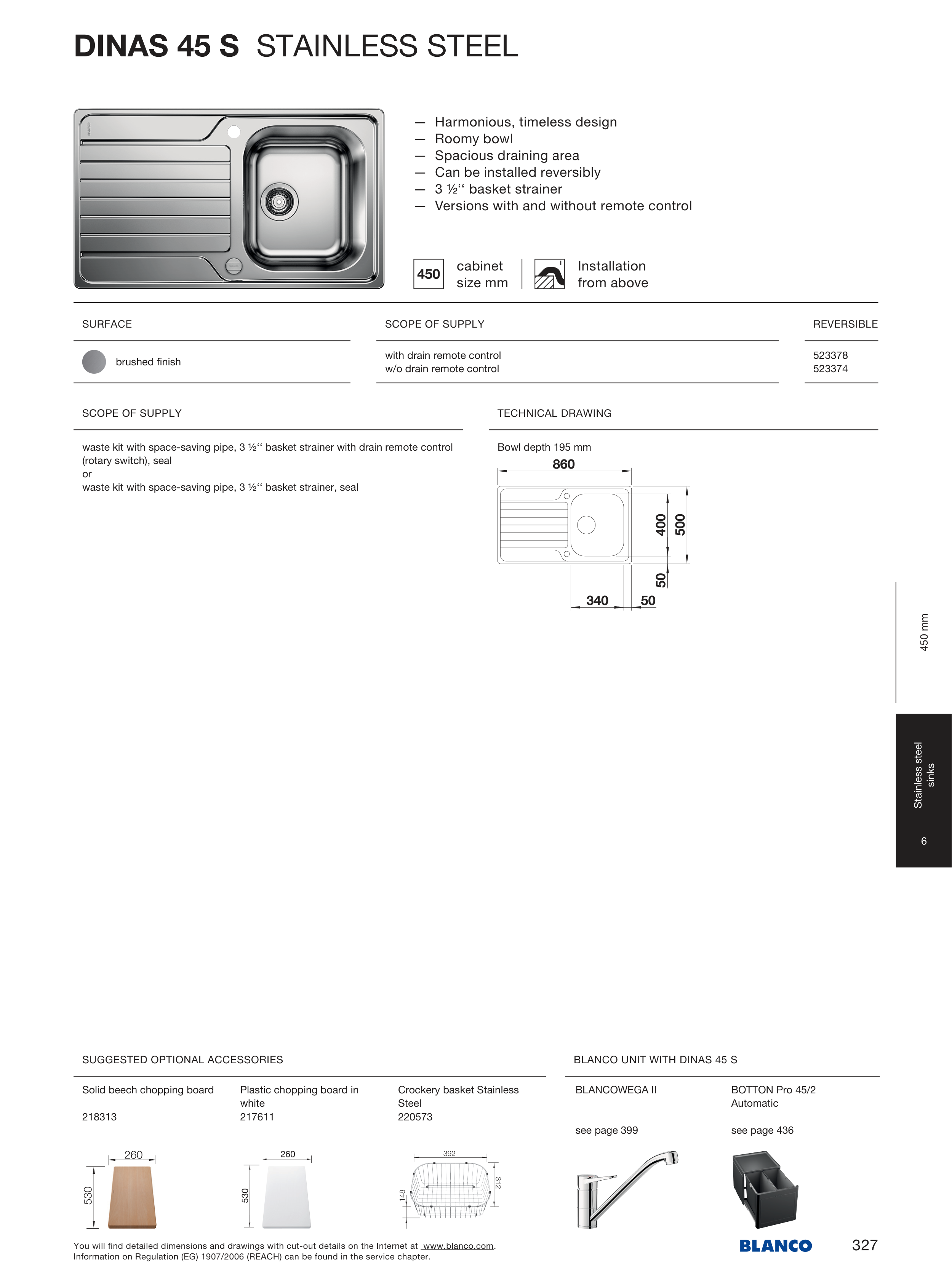

DINAS 45 S STAINLESS STEEL
— Harmonious, timeless design
— Roomy bowl
— Spacious draining area
— Can be installed reversibly
— 3 ½‘‘ basket strainer
— Versions with and without remote control
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ basket strainer with drain remote control
(rotary switch), seal
or
waste kit with space-saving pipe, 3 ½‘‘ basket strainer, seal
Bowl depth 195 mm
SURFACE
SCOPE OF SUPPLY
REVERSIBLE
brushed finish
with drain remote control
w/o drain remote control
523 378
523 374
Solid beech chopping board
218 313
Plastic chopping board in
white
217 611
Crockery basket Stainless
Steel
220 573
BLANCOWEGA II
see page 399
BOTTON Pro 45/2
Automatic
see page 436
450 mm
Stainless steel
sinks
6
327
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
