SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH TOP EZS 11 X 4

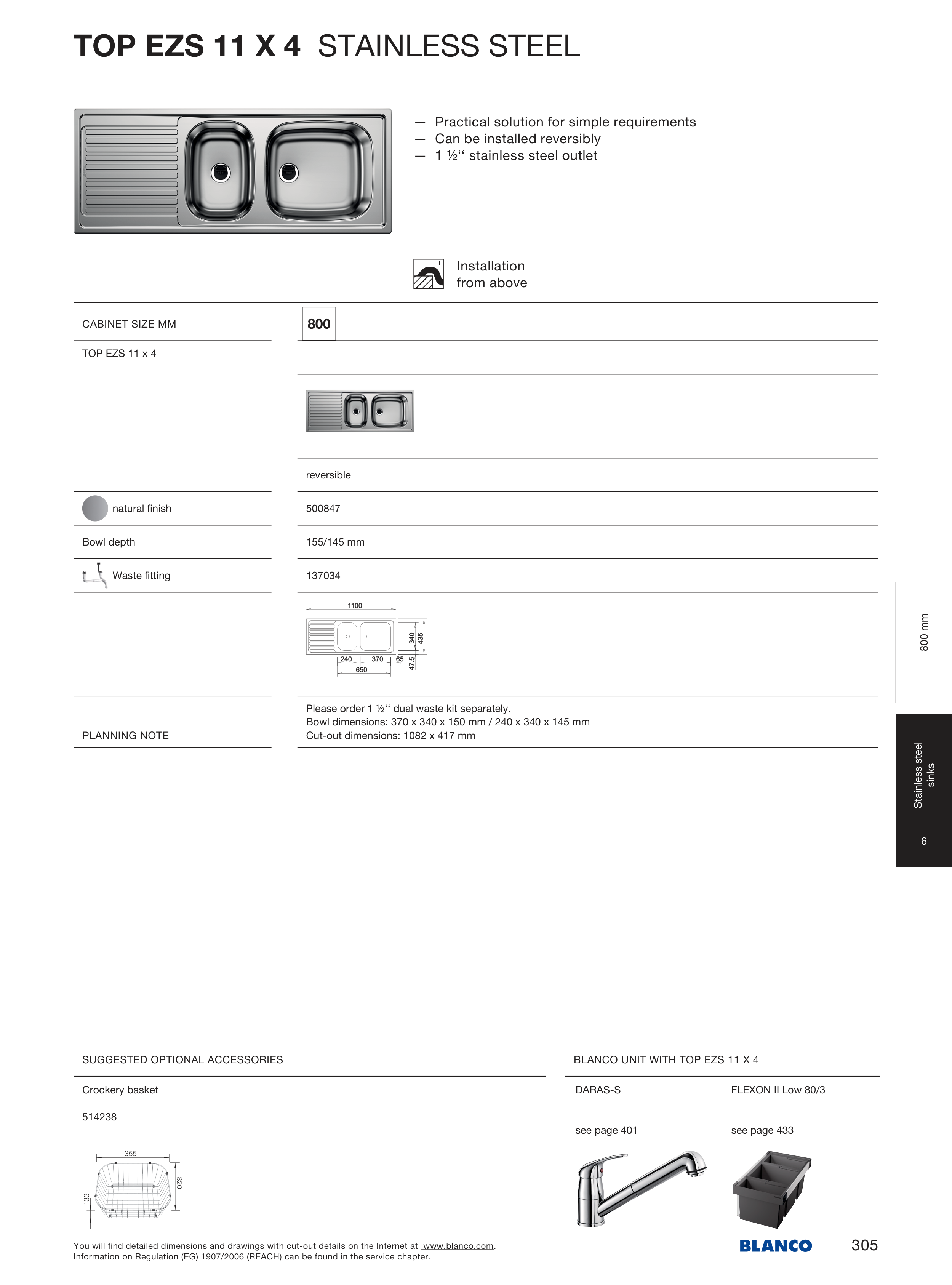

TOP EZS 11 X 4 STAINLESS STEEL
— Practical solution for simple requirements
— Can be installed reversibly
— 1 ½‘‘ stainless steel outlet
Installation
from above
CABINET SIZE MM
TOP EZS 11 x 4
reversible
natural finish
500 847
Bowl depth
155/145 mm
Waste fitting
137 034
PLANNING NOTE
Please order 1 ½‘‘ dual waste kit separately.
Bowl dimensions: 370 x 340 x 150 mm / 240 x 340 x 145 mm
Cut-out dimensions: 1082 x 417 mm
Crockery basket
514 238
DARAS-S
see page 401
FLEXON II Low 80/3
see page 433
800 mm
Stainless steel
sinks
6
305
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
