SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH ZENAR 45 S-F

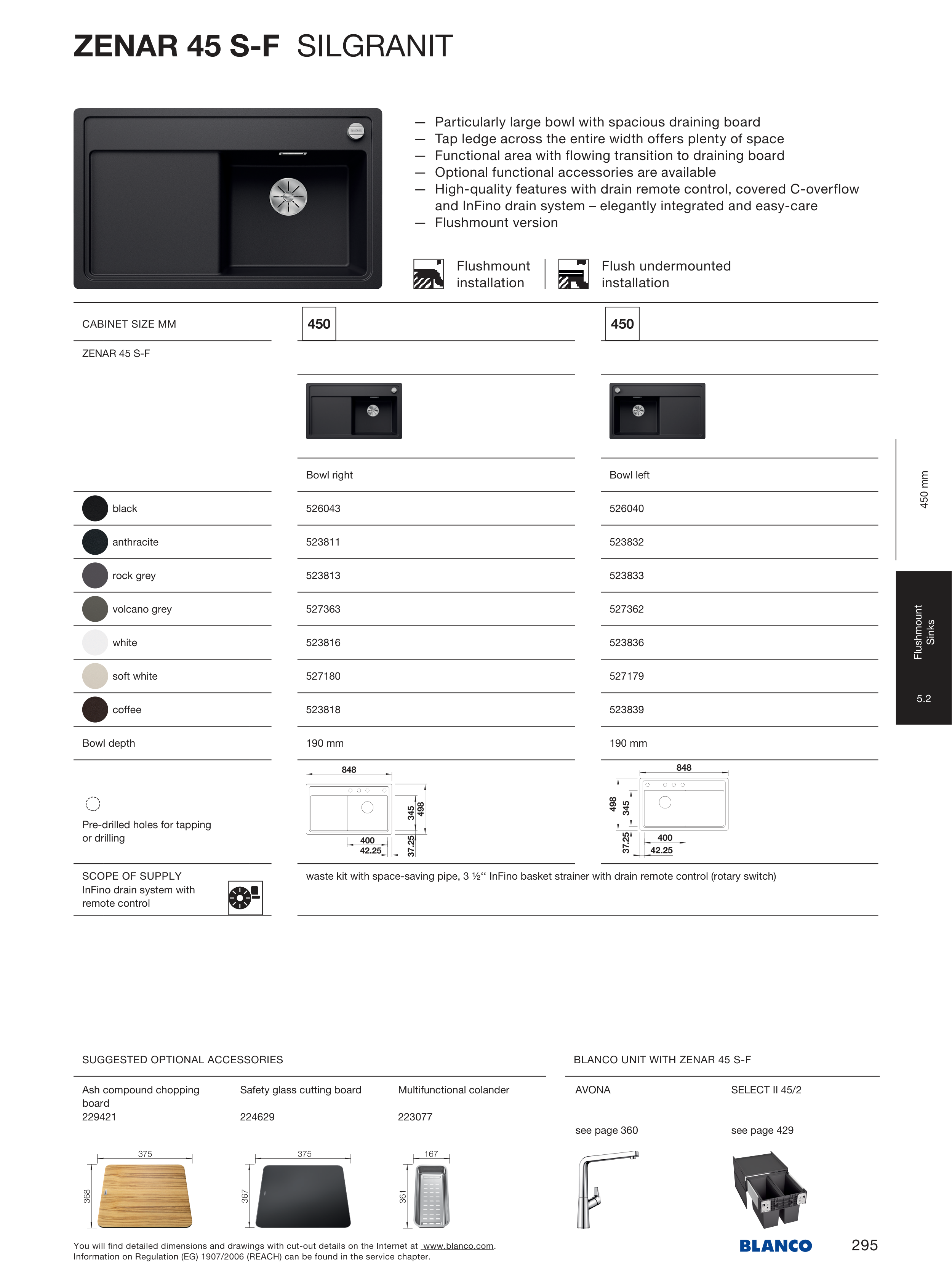

ZENAR 45 S-F SILGRANIT
— Particularly large bowl with spacious draining board
— Tap ledge across the entire width offers plenty of space
— Functional area with flowing transition to draining board
— Optional functional accessories are available
— High-quality features with drain remote control, covered C-overflow
and InFino drain system – elegantly integrated and easy-care
— Flushmount version
Flushmount
installation
Flush undermounted
installation
CABINET SIZE MM
ZENAR 45 S-F
Bowl right
Bowl left
black
526 043
526 040
anthracite
523 811
523 832
rock grey
523 813
523 833
volcano grey
527 363
527 362
white
523 816
523 836
soft white
527 180
527 179
coffee
523 818
523 839
Bowl depth
190 mm
190 mm
Pre-drilled holes for tapping
or drilling
SCOPE OF SUPPLY
InFino drain system with
remote control
waste kit with space-saving pipe, 3 ½‘‘ InFino basket strainer with drain remote control (rotary switch)
Ash compound chopping
board
229 421
Safety glass cutting board
224 629
Multifunctional colander
223 077
AVONA
see page 360
SELECT II 45/2
see page 429
450 mm
Flushmount
Sinks
5.2
295
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
