SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH AXIA III 6 S-F

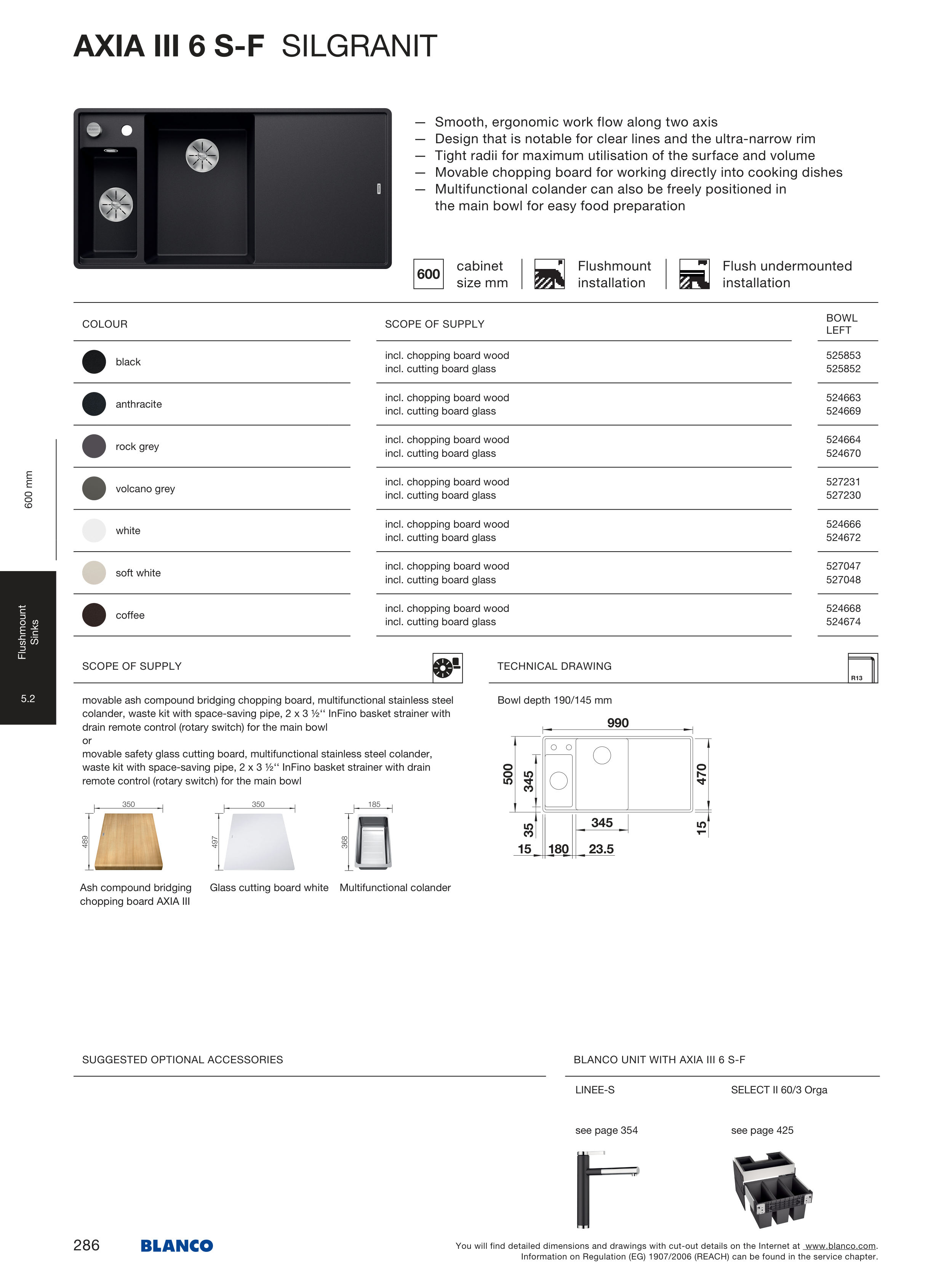

AXIA III 6 S-F SILGRANIT
— Smooth, ergonomic work flow along two axis
— Design that is notable for clear lines and the ultra-narrow rim
— Tight radii for maximum utilisation of the surface and volume
— Movable chopping board for working directly into cooking dishes
— Multifunctional colander can also be freely positioned in
the main bowl for easy food preparation
cabinet
size mm
Flushmount
installation
Flush undermounted
installation
SCOPE OF SUPPLY
TECHNICAL DRAWING
movable ash compound bridging chopping board, multifunctional stainless steel
colander, waste kit with space-saving pipe, 2 x 3 ½‘‘ InFino basket strainer with
drain remote control (rotary switch) for the main bowl
or
movable safety glass cutting board, multifunctional stainless steel colander,
waste kit with space-saving pipe, 2 x 3 ½‘‘ InFino basket strainer with drain
remote control (rotary switch) for the main bowl
990
15
35
500
345
23.5
15
345
180
470
Bowl depth 190/145 mm
COLOUR
SCOPE OF SUPPLY
BOWL
LEFT
black
incl. chopping board wood
incl. cutting board glass
525 853
525 852
anthracite
incl. chopping board wood
incl. cutting board glass
524 663
524 669
rock grey
incl. chopping board wood
incl. cutting board glass
524 664
524 670
volcano grey
incl. chopping board wood
incl. cutting board glass
527 231
527 230
white
incl. chopping board wood
incl. cutting board glass
524 666
524 672
soft white
incl. chopping board wood
incl. cutting board glass
527 047
527 048
coffee
incl. chopping board wood
incl. cutting board glass
524 668
524 674
Multifunctional colander
Glass cutting board white
Ash compound bridging
chopping board AXIA III
LINEE-S
see page 354
SELECT II 60/3 Orga
see page 425
600 mm
Flushmount
Sinks
5.2
286
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
