SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH ADIRA XL 6 S

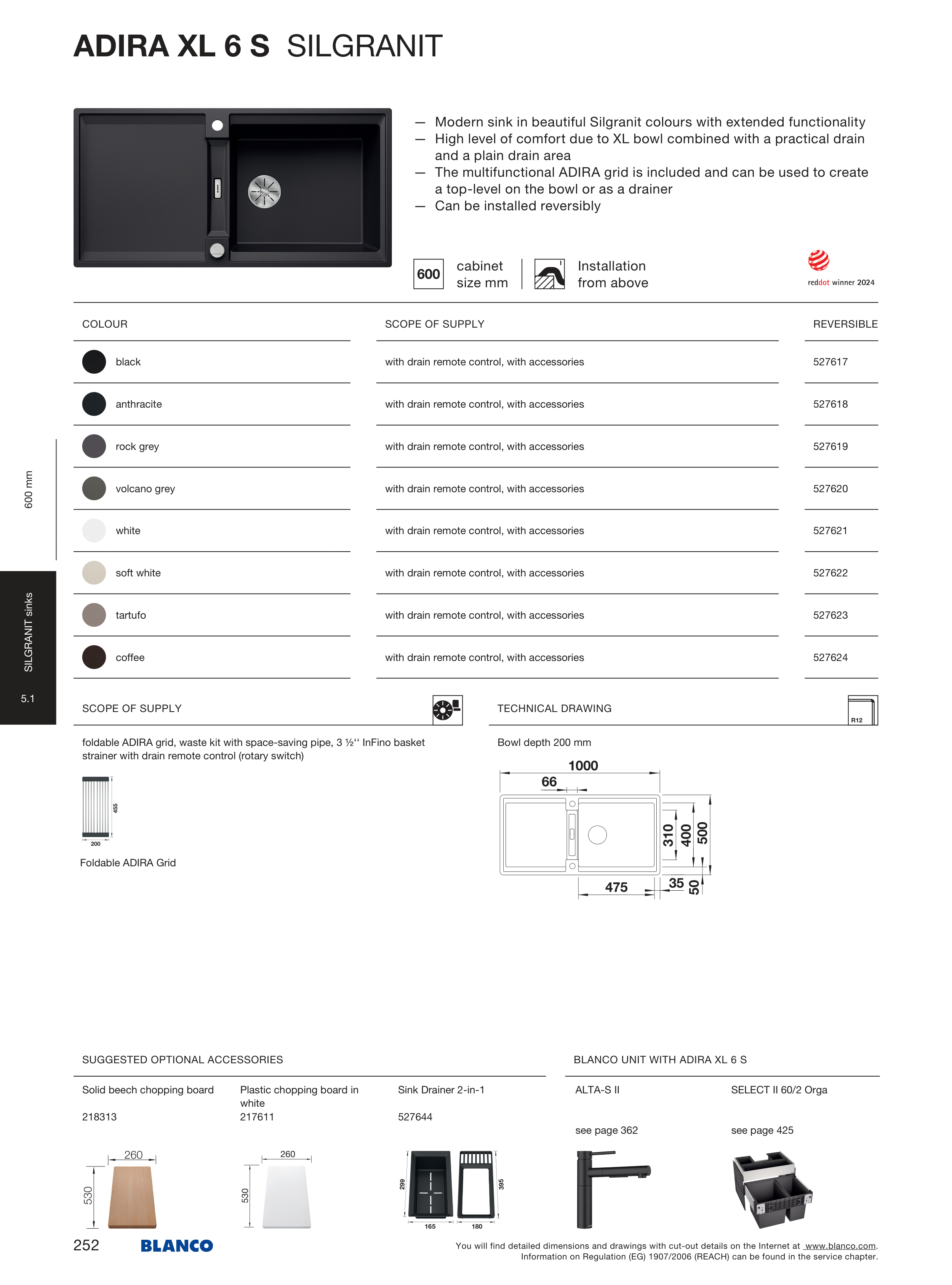

ADIRA XL 6 S SILGRANIT
— Modern sink in beautiful Silgranit colours with extended functionality
— High level of comfort due to XL bowl combined with a practical drain
and a plain drain area
— The multifunctional ADIRA grid is included and can be used to create
a top-level on the bowl or as a drainer
— Can be installed reversibly
cabinet
size mm
Installation
from above
SCOPE OF SUPPLY
TECHNICAL DRAWING
foldable ADIRA grid, waste kit with space-saving pipe, 3 ½‘‘ InFino basket
strainer with drain remote control (rotary switch)
475
1000
66
35
50
500
400
310
Bowl depth 200 mm
COLOUR
SCOPE OF SUPPLY
REVERSIBLE
black
with drain remote control, with accessories
527 617
anthracite
with drain remote control, with accessories
527 618
rock grey
with drain remote control, with accessories
527 619
volcano grey
with drain remote control, with accessories
527 620
white
with drain remote control, with accessories
527 621
soft white
with drain remote control, with accessories
527 622
tartufo
with drain remote control, with accessories
527 623
coffee
with drain remote control, with accessories
527 624
200
455
Foldable ADIRA Grid
Solid beech chopping board
218 313
Plastic chopping board in
white
217 611
Sink Drainer 2-in-1
527 644
180
395
165
299
ALTA-S II
see page 362
SELECT II 60/2 Orga
see page 425
600 mm
SILGRANIT sinks
5.1
252
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
