SUGGESTED OPTIONAL ACCESSORIES
BLANCO UNIT WITH SUBLINE 320-F

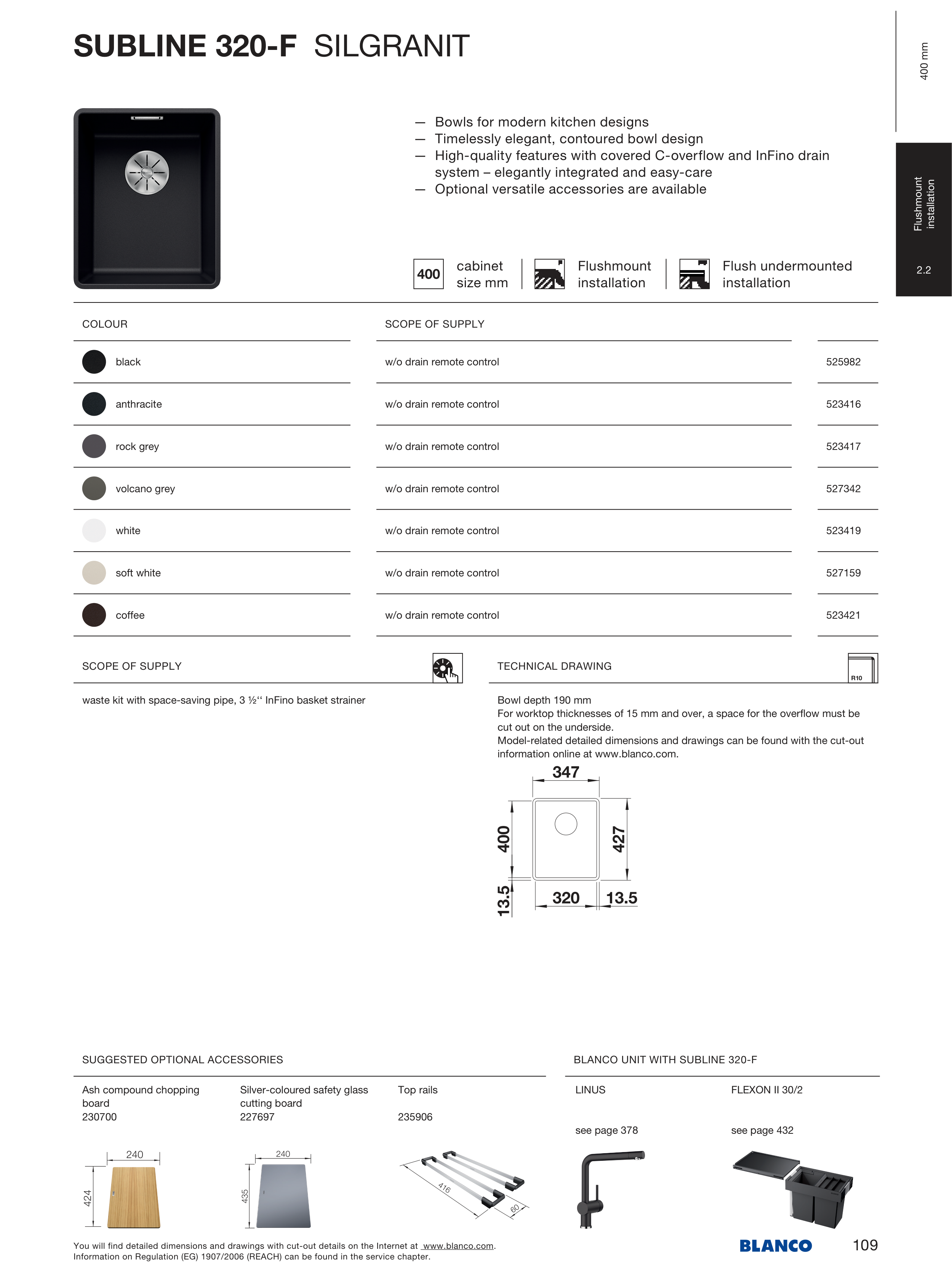

SUBLINE 320-F SILGRANIT
— Bowls for modern kitchen designs
— Timelessly elegant, contoured bowl design
— High-quality features with covered C-overflow and InFino drain
system – elegantly integrated and easy-care
— Optional versatile accessories are available
cabinet
size mm
Flushmount
installation
Flush undermounted
installation
SCOPE OF SUPPLY
TECHNICAL DRAWING
waste kit with space-saving pipe, 3 ½‘‘ InFino basket strainer
Bowl depth 190 mm
For worktop thicknesses of 15 mm and over, a space for the overflow must be
cut out on the underside.
Model-related detailed dimensions and drawings can be found with the cut-out
information online at www.blanco.com.
COLOUR
SCOPE OF SUPPLY
black
w/o drain remote control
525 982
anthracite
w/o drain remote control
523 416
rock grey
w/o drain remote control
523 417
volcano grey
w/o drain remote control
527 342
white
w/o drain remote control
523 419
soft white
w/o drain remote control
527 159
coffee
w/o drain remote control
523 421
Ash compound chopping
board
230 700
Silver-coloured safety glass
cutting board
227 697
Top rails
235 906
LINUS
see page 378
FLEXON II 30/2
see page 432
400 mm
Flushmount
installation
2.2
109
You will find detailed dimensions and drawings with cut-out details on the Internet at www.blanco.com.
Information on Regulation (EG) 1907/2006 (REACH) can be found in the service chapter.
