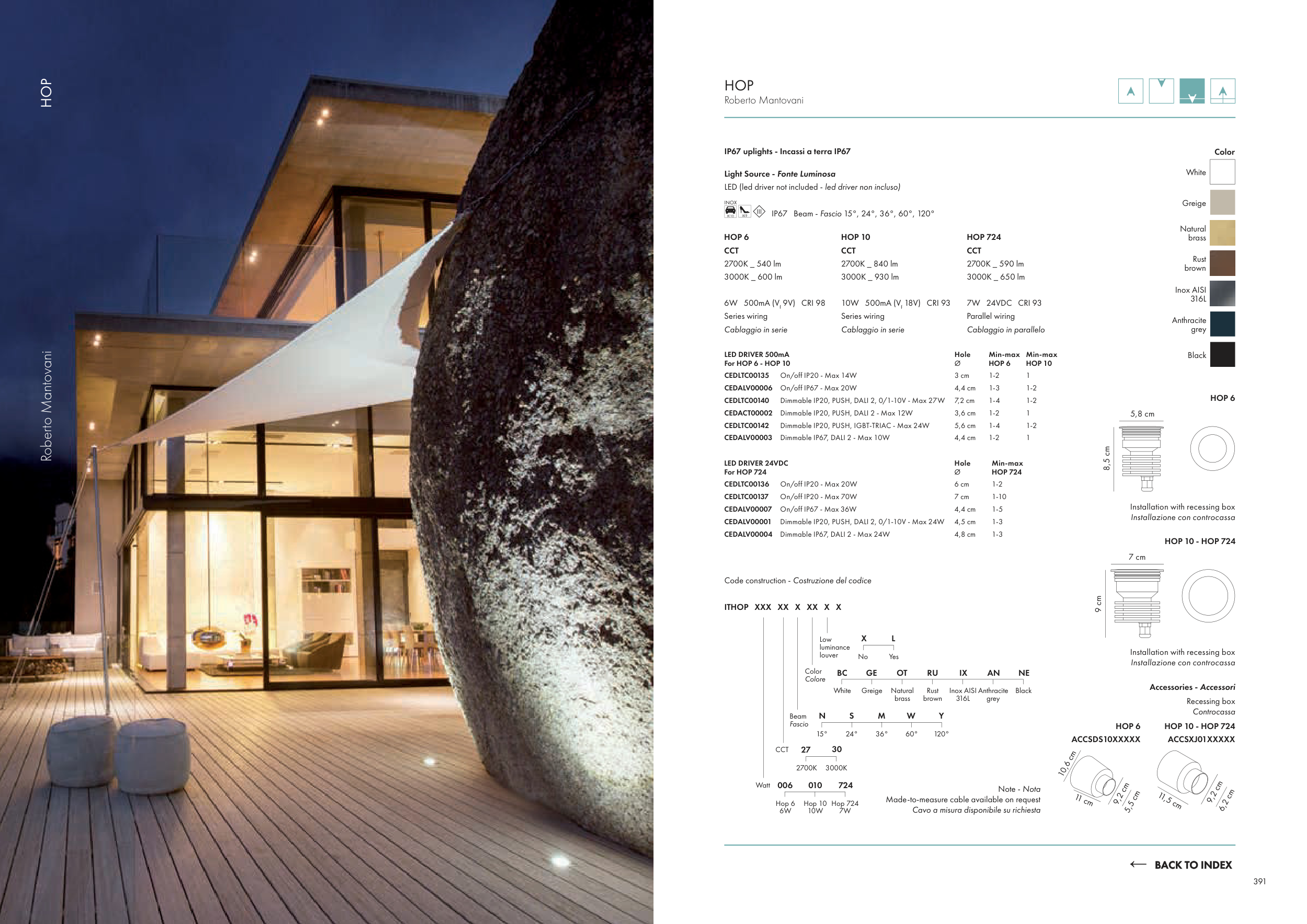

HOP
Roberto Mantovani
HOP
Roberto Mantovani
Light Source - Fonte Luminosa
LED (led driver not included - led driver non incluso)
INOX
IK10
IK9
IP67 Beam - Fascio 15°, 24°, 36°, 60°, 120°
HOP 10
CCT
2700K _ 840 lm
3000K _ 930 lm
10W 500mA (Vf 18V) CRI 93
Series wiring
Cablaggio in serie
HOP 6
CCT
2700K _ 540 lm
3000K _ 600 lm
6W 500mA (Vf 9V) CRI 98
Series wiring
Cablaggio in serie
HOP 724
CCT
2700K _ 590 lm
3000K _ 650 lm
7W 24VDC CRI 93
Parallel wiring
Cablaggio in parallelo
LED DRIVER 500mA
For HOP 6 - HOP 10
Hole
Ø
Min-max
HOP 6
Min-max
HOP 10
CEDLTC00135
On/off IP20 - Max 14W
3 cm
1-2
1
CEDALV00006
On/off IP67 - Max 20W
4,4 cm
1-3
1-2
CEDLTC00140
Dimmable IP20, PUSH, DALI 2, 0/1-10V - Max 27W
7,2 cm
1-4
1-2
CEDACT00002
Dimmable IP20, PUSH, DALI 2 - Max 12W
3,6 cm
1-2
1
CEDLTC00142
Dimmable IP20, PUSH, IGBT-TRIAC - Max 24W
5,6 cm
1-4
1-2
CEDALV00003
Dimmable IP67, DALI 2 - Max 10W
4,4 cm
1-2
1
LED DRIVER 24VDC
For HOP 724
Hole
Ø
Min-max
HOP 724
CEDLTC00136
On/off IP20 - Max 20W
6 cm
1-2
CEDLTC00137
On/off IP20 - Max 70W
7 cm
1-10
CEDALV00007
On/off IP67 - Max 36W
4,4 cm
1-5
CEDALV00001
Dimmable IP20, PUSH, DALI 2, 0/1-10V - Max 24W
4,5 cm
1-3
CEDALV00004
Dimmable IP67, DALI 2 - Max 24W
4,8 cm
1-3
Code construction - Costruzione del codice
ITHOP XXX XX X XX X X
Beam
Fascio
N
24°
36°
60°
120°
15°
S
M
W
Y
27
2700K
3000K
30
CCT
006
Hop 6
6W
Hop 10
10W
Hop 724
7W
010
724
Watt
Color
Colore
HOP 6
HOP 10 - HOP 724
HOP 10 - HOP 724
ACCSXJ01XXXXX
HOP 6
ACCSDS10XXXXX
Accessories - Accessori
Recessing box
Controcassa
Installation with recessing box
Installazione con controcassa
9 cm
7 cm
Installation with recessing box
Installazione con controcassa
5,8 cm
8,5 cm
11 cm
5,5 cm
9,2 cm
10,6 cm
11,5 cm
9,2 cm
6,2 cm
Note - Nota
Made-to-measure cable available on request
Cavo a misura disponibile su richiesta
Low
luminance
louver
X
No
Yes
L
Color
Greige
White
Inox AISI
316L
Anthracite
grey
Black
Natural
brass
Rust
brown
BC
White
Natural
brass
Greige
Rust
brown
Inox AISI
316L
Anthracite
grey
Black
OT
GE
RU
IX
AN
NE
IP67 uplights - Incassi a terra IP67
391
