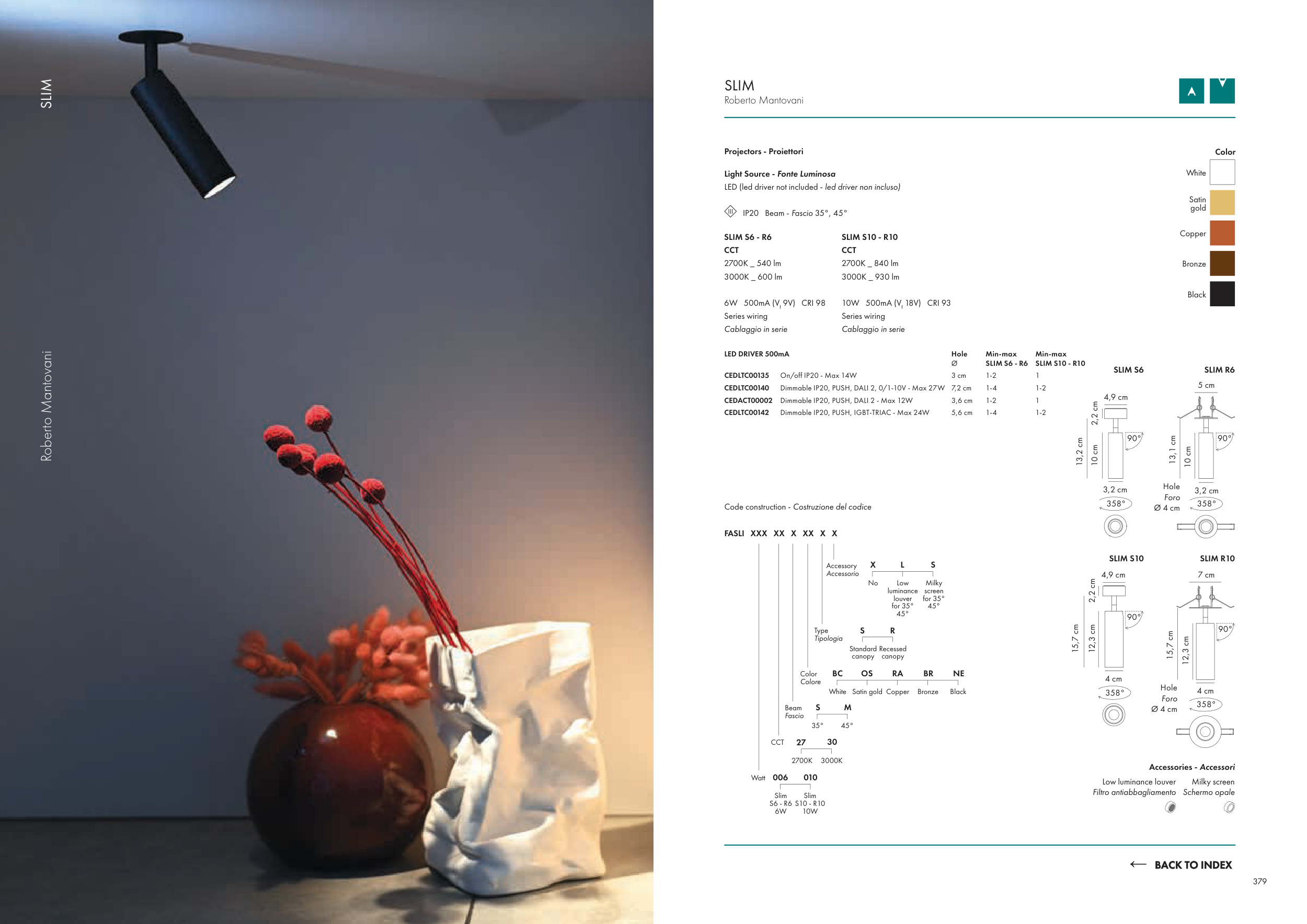

SLIM
Roberto Mantovani
SLIM
Roberto Mantovani
Light Source - Fonte Luminosa
LED (led driver not included - led driver non incluso)
IP20 Beam - Fascio 35°, 45°
SLIM S10 - R10
CCT
2700K _ 840 lm
3000K _ 930 lm
10W 500mA (Vf 18V) CRI 93
Series wiring
Cablaggio in serie
SLIM S6 - R6
CCT
2700K _ 540 lm
3000K _ 600 lm
6W 500mA (Vf 9V) CRI 98
Series wiring
Cablaggio in serie
LED DRIVER 500mA
Hole
Ø
Min-max
SLIM S6 - R6
Min-max
SLIM S10 - R10
CEDLTC00135
On/off IP20 - Max 14W
3 cm
1-2
1
CEDLTC00140
Dimmable IP20, PUSH, DALI 2, 0/1-10V - Max 27W
7,2 cm
1-4
1-2
CEDACT00002
Dimmable IP20, PUSH, DALI 2 - Max 12W
3,6 cm
1-2
1
CEDLTC00142
Dimmable IP20, PUSH, IGBT-TRIAC - Max 24W
5,6 cm
1-4
1-2
Accessories - Accessori
Milky screen
Schermo opale
Low luminance louver
Filtro antiabbagliamento
SLIM R10
4 cm
7 cm
12,3 cm
15,7 cm
358°
Hole
Foro
Ø 4 cm
90°
SLIM R6
Hole
Foro
Ø 4 cm
3,2 cm
13,1 cm
10 cm
5 cm
358°
90°
Code construction - Costruzione del codice
FASLI XXX XX X XX X X
Beam
Fascio
35°
45°
S
M
27
2700K
3000K
30
CCT
006
Slim
S6 - R6
6W
Slim
S10 - R10
10W
010
Watt
Color
Colore
BC
White Satin gold Copper
Bronze
Black
OS
RA
BR
NE
Color
Satin
gold
White
Copper
Bronze
Black
SLIM S6
3,2 cm
10 cm
2,2 cm
4,9 cm
13,2 cm
358°
90°
SLIM S10
4,9 cm
4 cm
12,3 cm
2,2 cm
15,7 cm
358°
90°
Accessory
Accessorio
X
No
Low
luminance
louver
for 35°
45°
Milky
screen
for 35°
45°
L
S
Type
Tipologia
S
R
Standard
canopy
Recessed
canopy
Projectors - Proiettori
379
