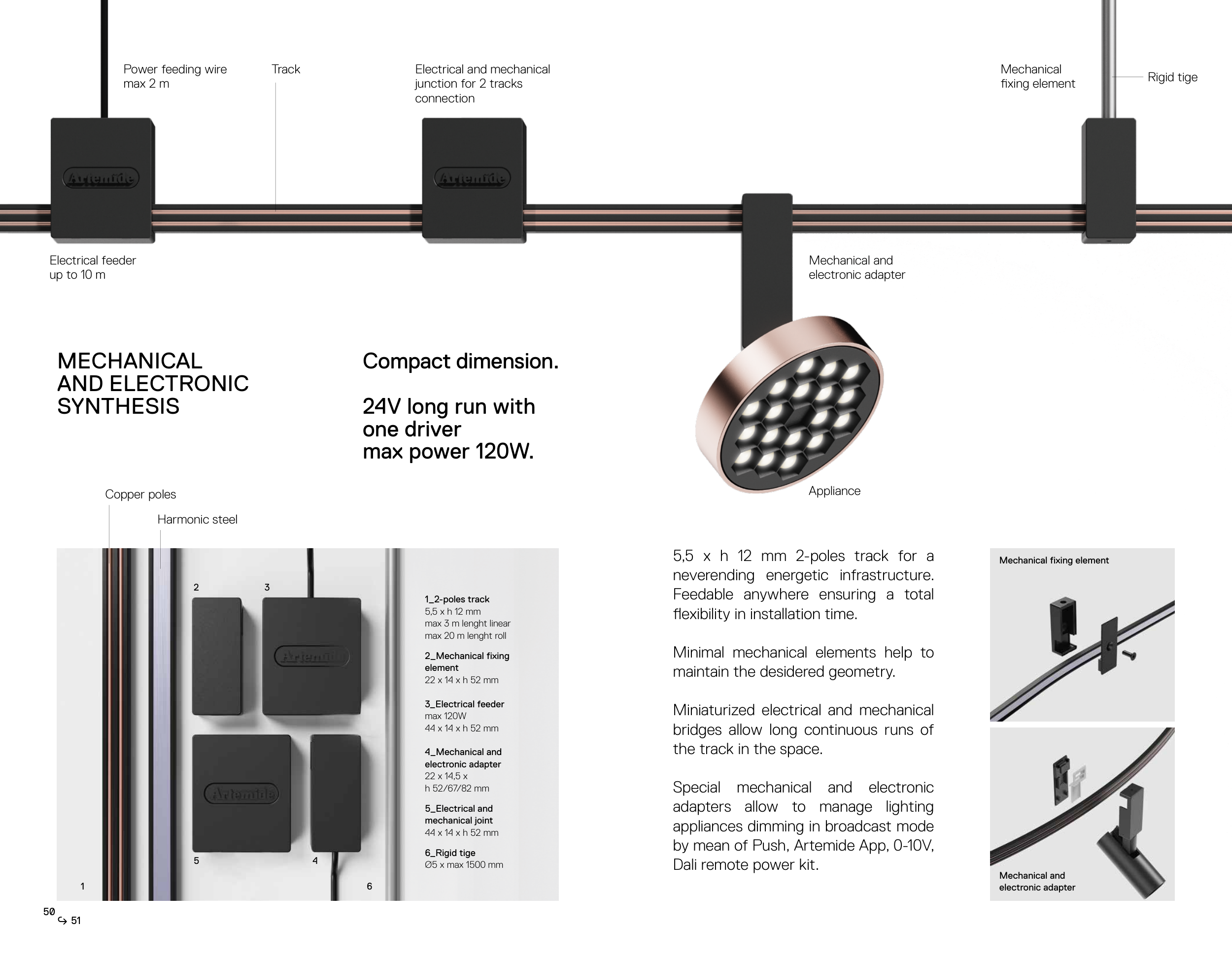

Power feeding wire
max 2 m
Electrical feeder
up to 10 m
Mechanical and
electronic adapter
Appliance
Mechanical
fixing element
Rigid tige
Track
Electrical and mechanical
junction for 2 tracks
connection
Copper poles
Harmonic steel
50
51
1_2-poles track
5,5 x h 12 mm
max 3 m lenght linear
max 20 m lenght roll
2_Mechanical fixing
element
22 x 14 x h 52 mm
3_Electrical feeder
max 120W
44 x 14 x h 52 mm
4_Mechanical and
electronic adapter
22 x 14,5 x
h 52/67/82 mm
5_Electrical and
mechanical joint
44 x 14 x h 52 mm
6_Rigid tige
Ø5 x max 1500 mm
1
4
2
3
5
6
Mechanical fixing element
Mechanical and
electronic adapter
Compact dimension.
24V long run with
one driver
max power 120W.
5,5 x h 12 mm 2-poles track for a
neverending energetic infrastructure.
Feedable anywhere ensuring a total
flexibility in installation time.
Minimal mechanical elements help to
maintain the desidered geometry.
Miniaturized electrical and mechanical
bridges allow long continuous runs of
the track in the space.
Special mechanical and electronic
adapters allow to manage lighting
appliances dimming in broadcast mode
by mean of Push, Artemide App, 0-10V,
Dali remote power kit.
MECHANICAL
AND ELECTRONIC
SYNTHESIS
