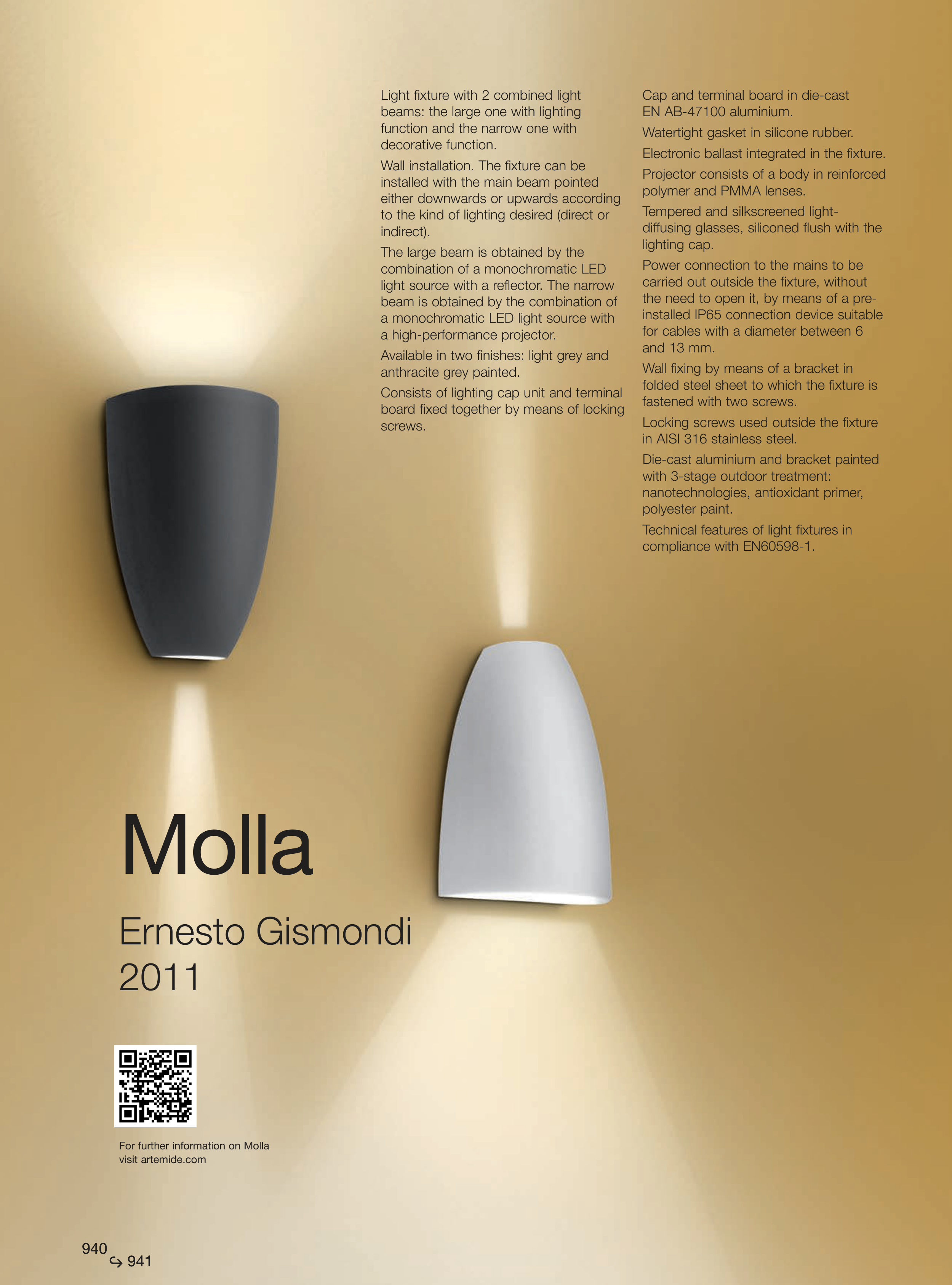

Molla
Ernesto Gismondi
2011
Light fixture with 2 combined light
beams: the large one with lighting
function and the narrow one with
decorative function.
Wall installation. The fixture can be
installed with the main beam pointed
either downwards or upwards according
to the kind of lighting desired (direct or
indirect).
The large beam is obtained by the
combination of a monochromatic LED
light source with a reflector. The narrow
beam is obtained by the combination of
a monochromatic LED light source with
a high-performance projector.
Available in two finishes: light grey and
anthracite grey painted.
Consists of lighting cap unit and terminal
board fixed together by means of locking
screws.
Cap and terminal board in die-cast
EN AB-47100 aluminium.
Watertight gasket in silicone rubber.
Electronic ballast integrated in the fixture.
Projector consists of a body in reinforced
polymer and PMMA lenses.
Tempered and silkscreened light-
diffusing glasses, siliconed flush with the
lighting cap.
Power connection to the mains to be
carried out outside the fixture, without
the need to open it, by means of a pre-
installed IP65 connection device suitable
for cables with a diameter between 6
and 13 mm.
Wall fixing by means of a bracket in
folded steel sheet to which the fixture is
fastened with two screws.
Locking screws used outside the fixture
in AISI 316 stainless steel.
Die-cast aluminium and bracket painted
with 3-stage outdoor treatment:
nanotechnologies, antioxidant primer,
polyester paint.
Technical features of light fixtures in
compliance with EN60598-1.
