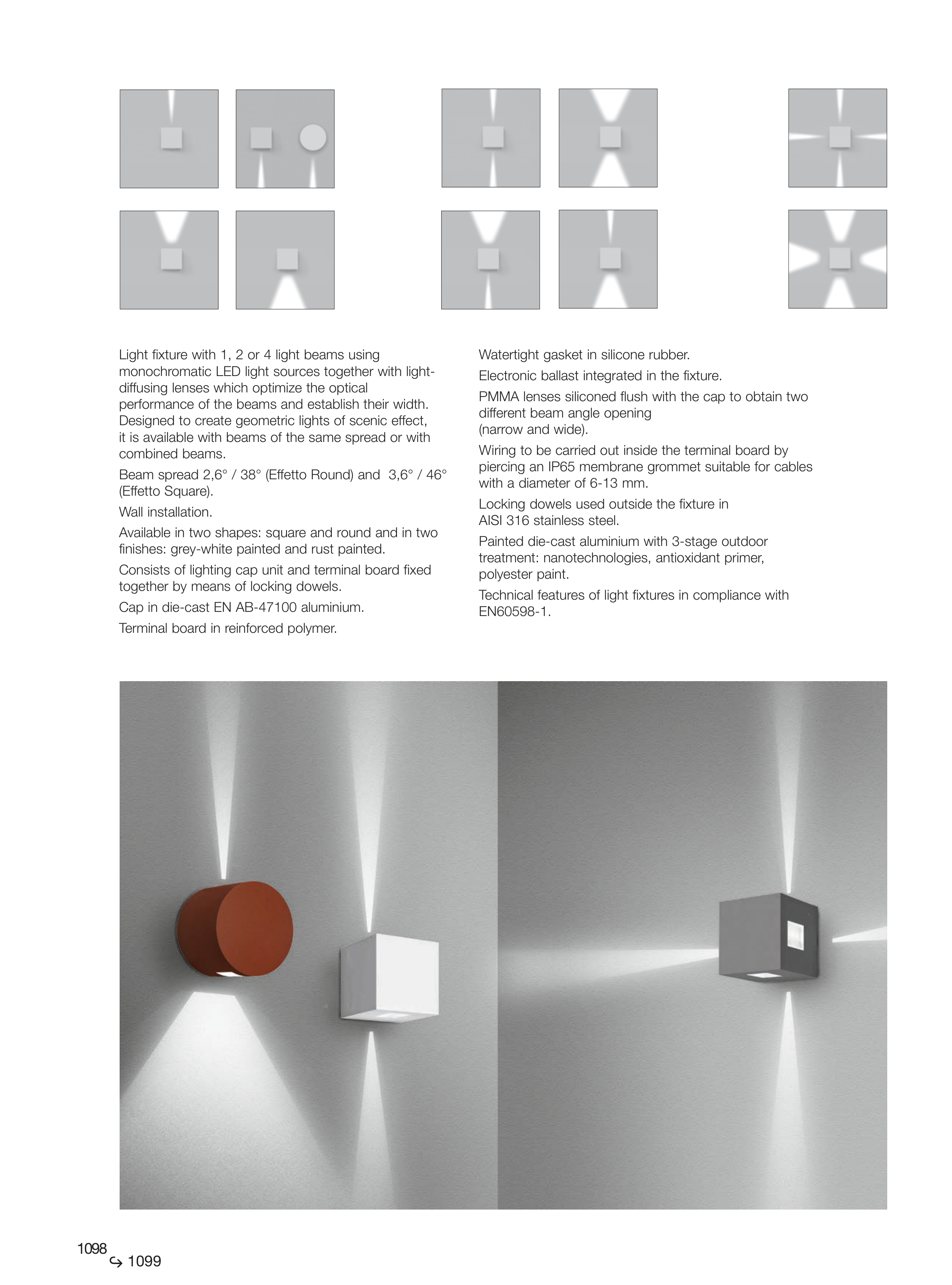

Light fixture with 1, 2 or 4 light beams using
monochromatic LED light sources together with light-
diffusing lenses which optimize the optical
performance of the beams and establish their width.
Designed to create geometric lights of scenic effect,
it is available with beams of the same spread or with
combined beams.
Beam spread 2,6° / 38° (Effetto Round) and 3,6° / 46°
(Effetto Square).
Wall installation.
Available in two shapes: square and round and in two
finishes: grey-white painted and rust painted.
Consists of lighting cap unit and terminal board fixed
together by means of locking dowels.
Cap in die-cast EN AB-47100 aluminium.
Terminal board in reinforced polymer.
Watertight gasket in silicone rubber.
Electronic ballast integrated in the fixture.
PMMA lenses siliconed flush with the cap to obtain two
different beam angle opening
(narrow and wide).
Wiring to be carried out inside the terminal board by
piercing an IP65 membrane grommet suitable for cables
with a diameter of 6-13 mm.
Locking dowels used outside the fixture in
AISI 316 stainless steel.
Painted die-cast aluminium with 3-stage outdoor
treatment: nanotechnologies, antioxidant primer,
polyester paint.
Technical features of light fixtures in compliance with
EN60598-1.
