INSTALLATION

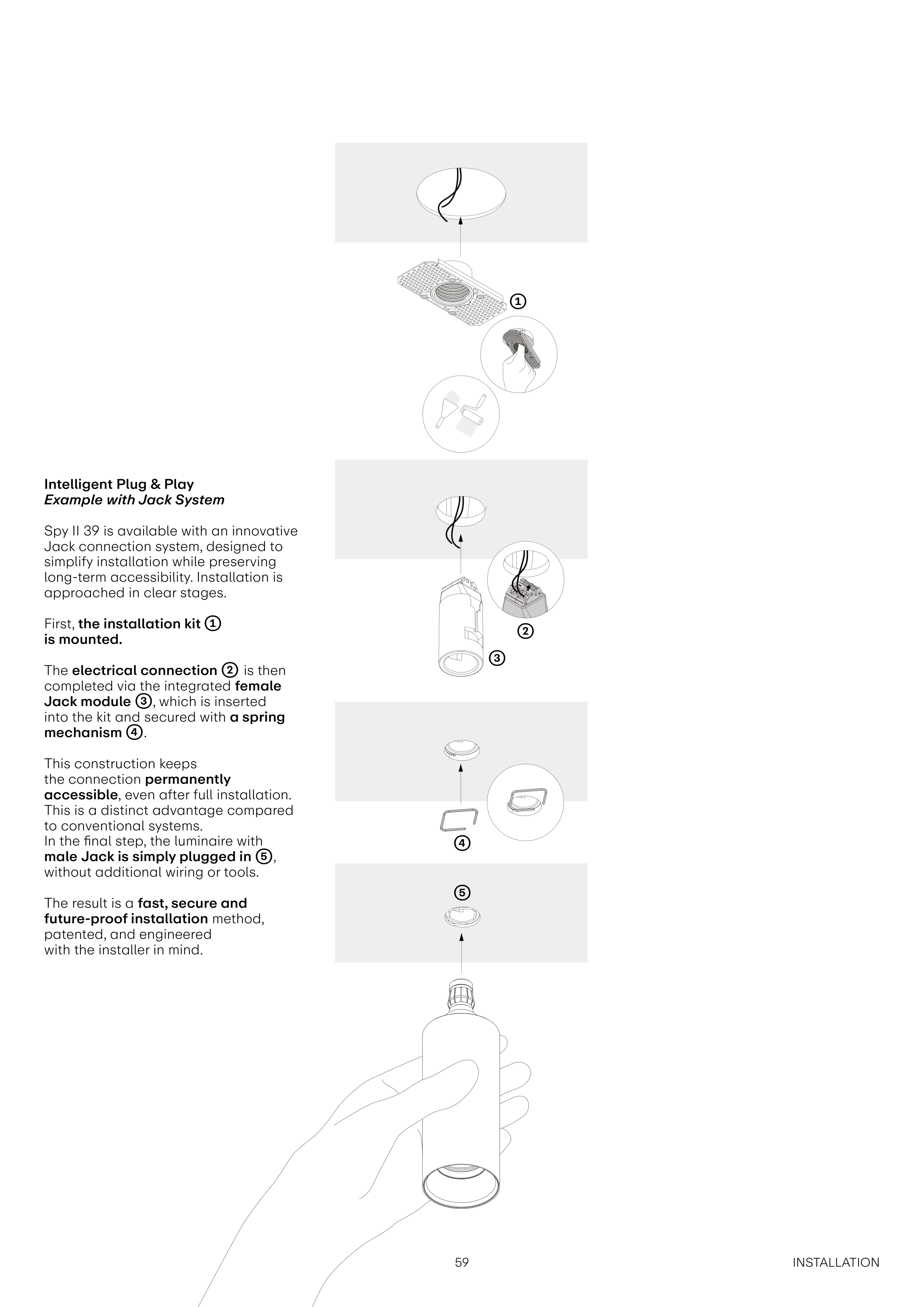

Intelligent Plug & Play
Example with Jack System
Spy II 39 is available with an innovative
Jack connection system, designed to
simplify installation while preserving
long-term accessibility. Installation is
approached in clear stages.
First, the installation kit1
is mounted.
The electrical connection 2 is then
completed via the integrated female
Jack module 3, which is inserted
into the kit and secured with a spring
mechanism 4.
This construction keeps
the connection permanently
accessible, even after full installation.
This is a distinct advantage compared
to conventional systems.
In the final step, the luminaire with
male Jack is simply plugged in 5,
without additional wiring or tools.
The result is a fast, secure and
future-proof installation method,
patented, and engineered
with the installer in mind.
-
1
2
3
4
5
