PORTFOLIO
33
Jack provides an elegant plug-in
mounting solution designed for fast
installation and easy repositioning.
Once the ceiling feed is prepared,
the luminaire simply clicks into place,
reducing onsite handling and enabling
flexible future adjustments. Jack is
available in semi-recessed, with trim or
trimless variants, as well as
a rod version.

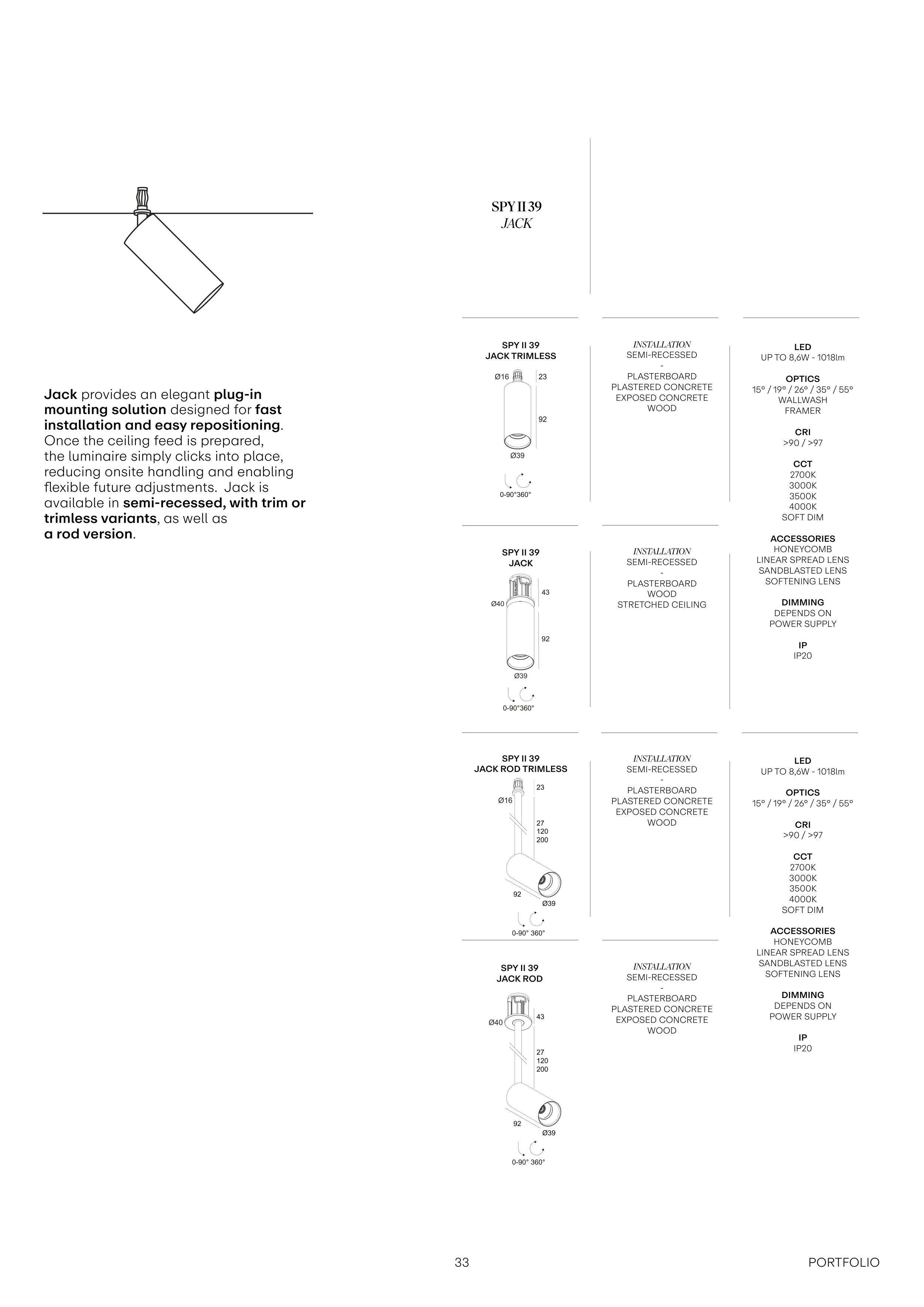

SPY II 39
JACK
SPY II 39
JACK TRIMLESS
SPY II 39
JACK
SPY II 39
JACK ROD TRIMLESS
SPY II 39
JACK ROD
LED
UP TO 8,6W - 1018lm
OPTICS
15° / 19° / 26° / 35° / 55°
WALLWASH
FRAMER
CRI
>90 / >97
CCT
2700K
3000K
3500K
4000K
SOFT DIM
ACCESSORIES
HONEYCOMB
LINEAR SPREAD LENS
SANDBLASTED LENS
SOFTENING LENS
DIMMING
DEPENDS ON
POWER SUPPLY
IP
IP20
LED
UP TO 8,6W - 1018lm
OPTICS
15° / 19° / 26° / 35° / 55°
CRI
>90 / >97
CCT
2700K
3000K
3500K
4000K
SOFT DIM
ACCESSORIES
HONEYCOMB
LINEAR SPREAD LENS
SANDBLASTED LENS
SOFTENING LENS
DIMMING
DEPENDS ON
POWER SUPPLY
IP
IP20
INSTALLATION
SEMI-RECESSED
-
PLASTERBOARD
PLASTERED CONCRETE
EXPOSED CONCRETE
WOOD
INSTALLATION
SEMI-RECESSED
-
PLASTERBOARD
WOOD
STRETCHED CEILING
INSTALLATION
SEMI-RECESSED
-
PLASTERBOARD
PLASTERED CONCRETE
EXPOSED CONCRETE
WOOD
INSTALLATION
SEMI-RECESSED
-
PLASTERBOARD
PLASTERED CONCRETE
EXPOSED CONCRETE
WOOD
Ø39
92
Ø16
23
0-90°360°
92
43
Ø39
Ø40
0-90°360°
Ø16
27
120
200
23
92
Ø39
0-90° 360°
Ø40
27
120
200
43
92
Ø39
0-90° 360°
