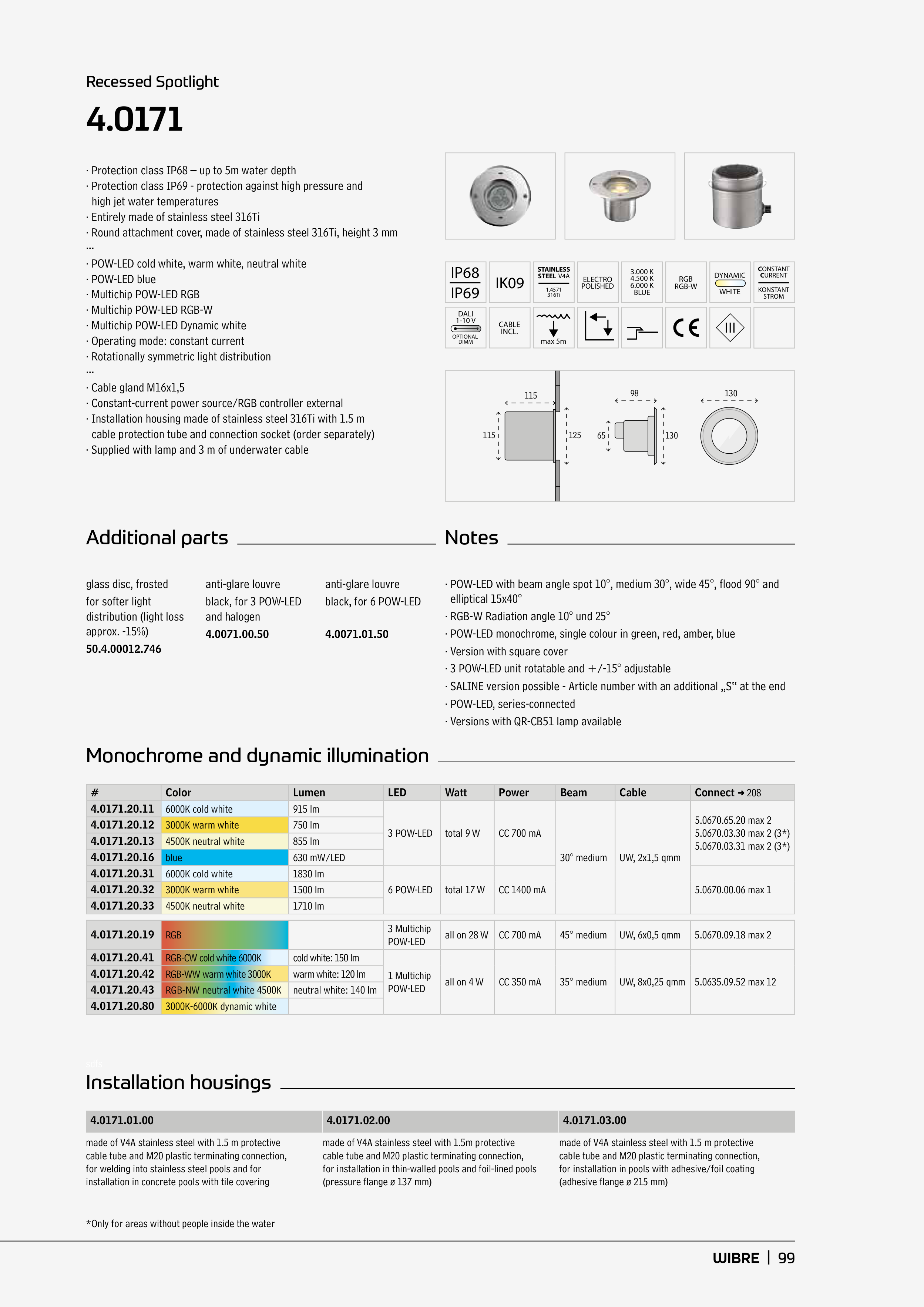

Recessed Spotlight
Monochrome and dynamic illumination
· Protection class IP68 – up to 5m water depth
· Protection class IP69 - protection against high pressure and
high jet water temperatures
· Entirely made of stainless steel 316Ti
· Round attachment cover, made of stainless steel 316Ti, height 3 mm
···
· POW-LED cold white, warm white, neutral white
· POW-LED blue
· Multichip POW-LED RGB
· Multichip POW-LED RGB-W
· Multichip POW-LED Dynamic white
· Operating mode: constant current
· Rotationally symmetric light distribution
···
· Cable gland M16x1,5
· Constant-current power source/RGB controller external
· Installation housing made of stainless steel 316Ti with 1.5 m
cable protection tube and connection socket (order separately)
· Supplied with lamp and 3 m of underwater cable
130
65
115
125
98
130
115
Additional parts
glass disc, frosted
for softer light
distribution (light loss
approx. -15%)
50.4.00012.746
anti-glare louvre
black, for 3 POW-LED
and halogen
4.0071.00.50
anti-glare louvre
black, for 6 POW-LED
4.0071.01.50
4.0171
IP68
IP69
IK09
STAINLESS
STEEL V4A
1.4571
316Ti
ELECTRO
POLISHED
3.000 K
4.500 K
6.000 K
BLUE
RGB
RGB-W
DYNAMIC
WHITE
CABLE
INCL.
max 5m
CONSTANT
CURRENT
KONSTANT
STROM
DALI
1-10 V
OPTIONAL
DIMM
Notes
· POW-LED with beam angle spot 10°, medium 30°, wide 45°, flood 90° and
elliptical 15x40°
· RGB-W Radiation angle 10° und 25°
· POW-LED monochrome, single colour in green, red, amber, blue
· Version with square cover
· 3 POW-LED unit rotatable and +/-15° adjustable
· SALINE version possible - Article number with an additional „S“ at the end
· POW-LED, series-connected
· Versions with QR-CB51 lamp available
#
Color
Lumen
LED
Watt
Power
Beam
Cable
Connect ➜ 208
4.0171.20.11
6000K cold white
915 lm
3 POW-LED
total 9 W
CC 700 mA
30° medium
UW, 2x1,5 qmm
5.0670.65.20 max 2
5.0670.03.30 max 2 (3*)
5.0670.03.31 max 2 (3*)
4.0171.20.12
3000K warm white
750 lm
4.0171.20.13
4500K neutral white
855 lm
4.0171.20.16
blue
630 mW/LED
4.0171.20.31
6000K cold white
1830 lm
6 POW-LED
total 17 W
CC 1400 mA
5.0670.00.06 max 1
4.0171.20.32
3000K warm white
1500 lm
4.0171.20.33
4500K neutral white
1710 lm
4.0171.20.19
RGB
3 Multichip
POW-LED
all on 28 W
CC 700 mA
45° medium
UW, 6x0,5 qmm
5.0670.09.18 max 2
4.0171.20.41
RGB-CW cold white 6000K
cold white: 150 lm
1 Multichip
POW-LED
all on 4 W
CC 350 mA
35° medium
UW, 8x0,25 qmm
5.0635.09.52 max 12
4.0171.20.42
RGB-WW warm white 3000K
warm white: 120 lm
4.0171.20.43
RGB-NW neutral white 4500K
neutral white: 140 lm
4.0171.20.80
3000K-6000K dynamic white
sdfs
Installation housings
4.0171.01.00
4.0171.02.00
4.0171.03.00
made of V4A stainless steel with 1.5 m protective
cable tube and M20 plastic terminating connection,
for welding into stainless steel pools and for
installation in concrete pools with tile covering
made of V4A stainless steel with 1.5m protective
cable tube and M20 plastic terminating connection,
for installation in thin-walled pools and foil-lined pools
(pressure flange ø 137 mm)
made of V4A stainless steel with 1.5 m protective
cable tube and M20 plastic terminating connection,
for installation in pools with adhesive/foil coating
(adhesive flange ø 215 mm)
*Only for areas without people inside the water
