| 83
Monochrome illumination

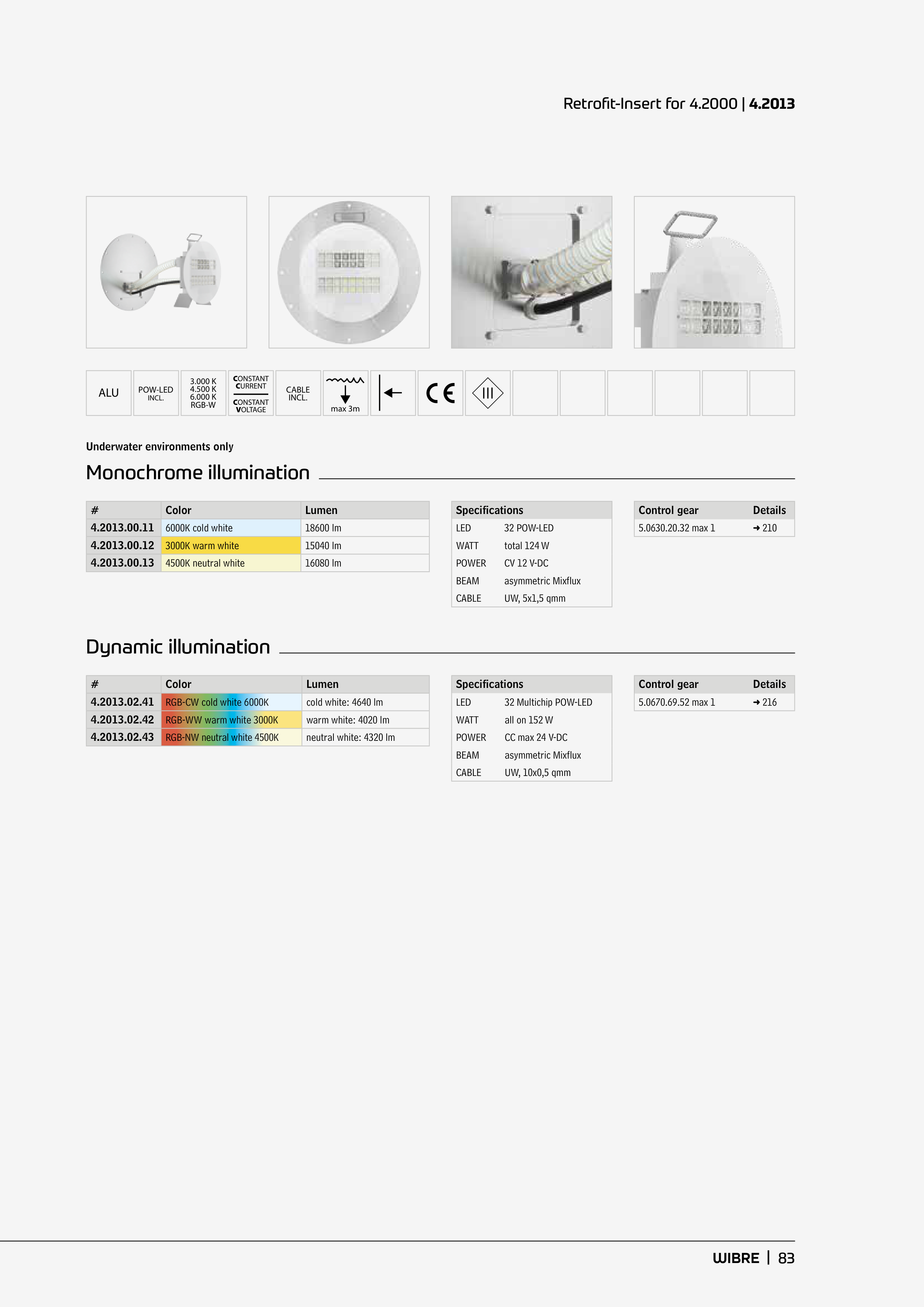

Retrofit-Insert for 4.2000 | 4.2013
ALU
POW-LED
INCL.
3.000 K
4.500 K
6.000 K
RGB-W
CONSTANT
CURRENT
CONSTANT
VOLTAGE
CABLE
INCL.
max 3m
Dynamic illumination
Specifications
LED
32 Multichip POW-LED
WATT
all on 152 W
POWER
CC max 24 V-DC
BEAM
asymmetric Mixflux
CABLE
UW, 10x0,5 qmm
Control gear
Details
5.0670.69.52 max 1
➜ 216
#
Color
Lumen
4.2013.02.41
RGB-CW cold white 6000K
cold white: 4640 lm
4.2013.02.42
RGB-WW warm white 3000K
warm white: 4020 lm
4.2013.02.43
RGB-NW neutral white 4500K
neutral white: 4320 lm
Specifications
LED
32 POW-LED
WATT
total 124 W
POWER
CV 12 V-DC
BEAM
asymmetric Mixflux
CABLE
UW, 5x1,5 qmm
Control gear
Details
5.0630.20.32 max 1
➜ 210
#
Color
Lumen
4.2013.00.11
6000K cold white
18600 lm
4.2013.00.12
3000K warm white
15040 lm
4.2013.00.13
4500K neutral white
16080 lm
Underwater environments only
