Up to 18600 lumen –
Sustainable replacement
for 400 Watt HIT
· Retrofit insertion for installation in existing spotlights 4.2000
· For retrofitting halogen to LED
· Entirely made of high-quality anodised aluminium
···
· POW-LED cold white, warm white, neutral white
· Multichip POW-LED RGB-W
· Operating mode mono: constant voltage
· Operating mode RGB-W: constant current
· Temperature controlled (onboard)
· Surge protection
· Light distribution especially for swimming pool lighting „asymmetric Mixflux“
···
· Delivered ready for connection
· Incl. end cover with integrated access port for easy installation
· Constant-voltage power source/RGB-W controller ordered separately
· Supplied with 2 m of special underwater cable
Typical applications
This retrofit insert is intended for existing 4.2000 type spotlights, which are primarily installed
in sports pools. The insert has everything for a hassle-free change to LED. Better lighting power,
considerably less consumption, long service life, safety and sophisticated temperature manage-
ment. The latter is important in order to put the spotlight back into operation in accordance with
regulations, namely as a closed unit with a cover plate.

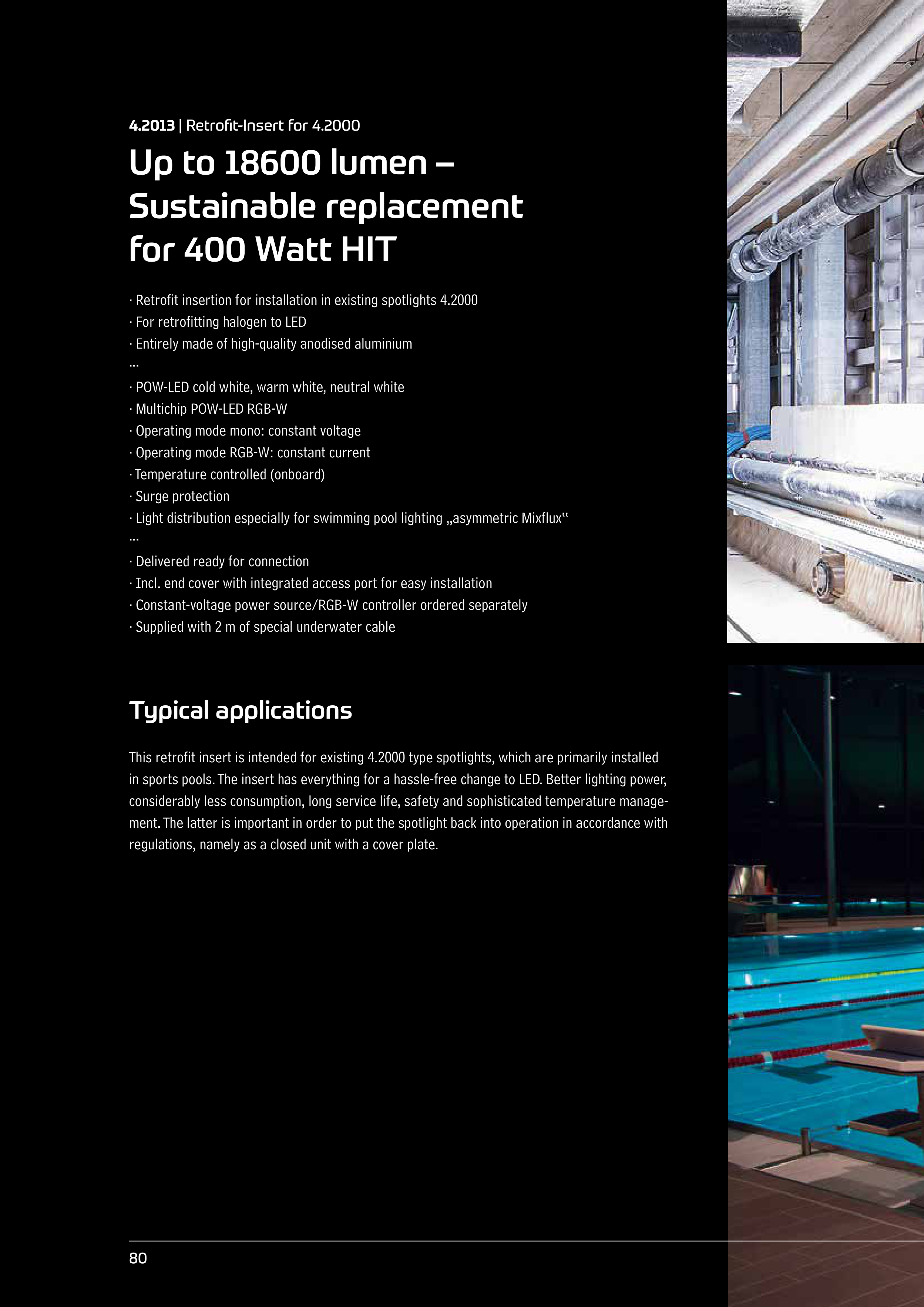

4.2013 | Retrofit-Insert for 4.2000
