60

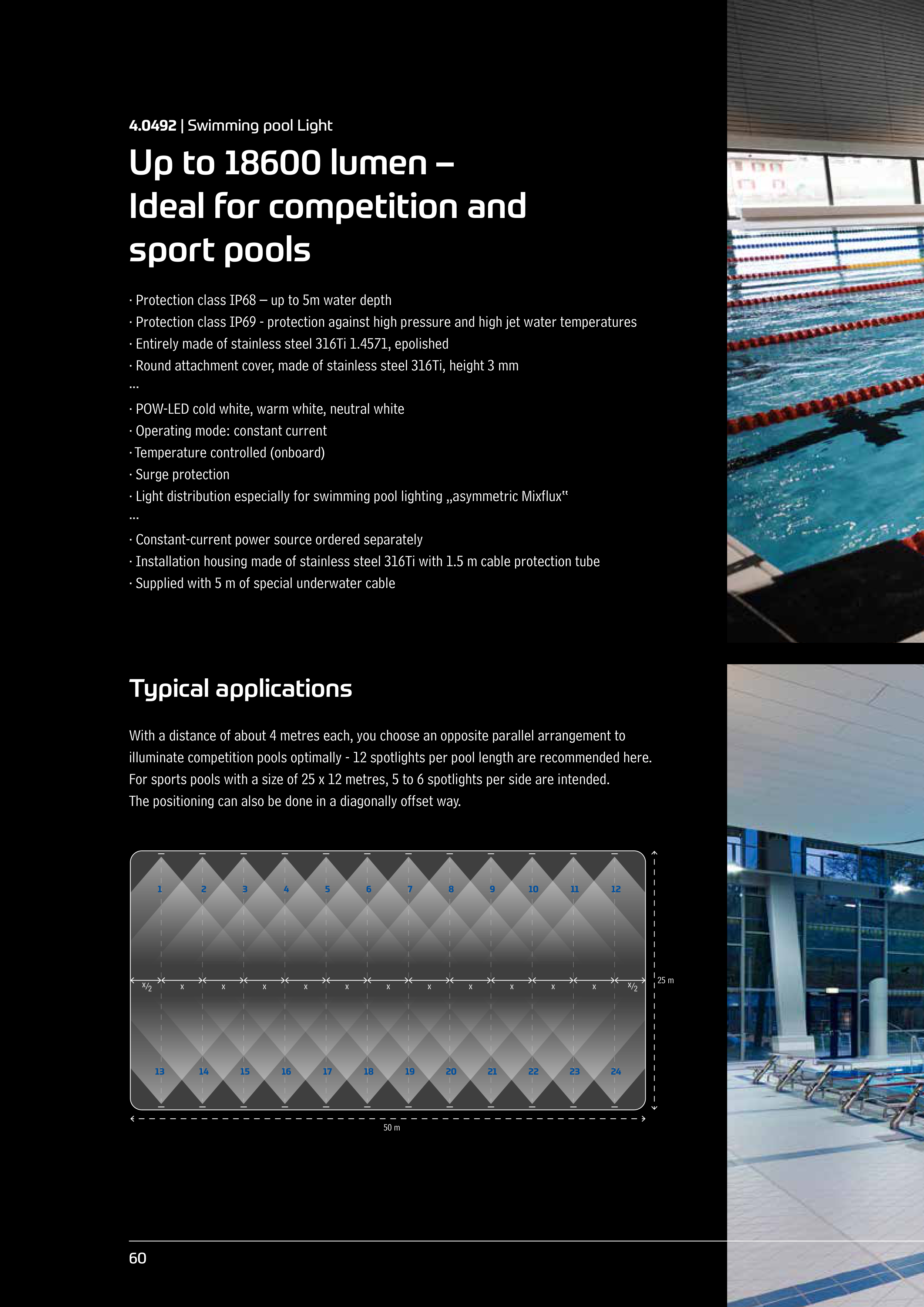

Up to 18600 lumen –
Ideal for competition and
sport pools
· Protection class IP68 – up to 5m water depth
· Protection class IP69 - protection against high pressure and high jet water temperatures
· Entirely made of stainless steel 316Ti 1.4571, epolished
· Round attachment cover, made of stainless steel 316Ti, height 3 mm
···
· POW-LED cold white, warm white, neutral white
· Operating mode: constant current
· Temperature controlled (onboard)
· Surge protection
· Light distribution especially for swimming pool lighting „asymmetric Mixflux“
···
· Constant-current power source ordered separately
· Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube
· Supplied with 5 m of special underwater cable
Typical applications
With a distance of about 4 metres each, you choose an opposite parallel arrangement to
illuminate competition pools optimally - 12 spotlights per pool length are recommended here.
For sports pools with a size of 25 x 12 metres, 5 to 6 spotlights per side are intended.
The positioning can also be done in a diagonally offset way.
50 m
25 m
x/2
x/2
x
x
x
x
x
x
x
x
x
x
x
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
4.0492 | Swimming pool Light
