IP68
IP69
IK11
STAINLESS
STEEL V4A
1.4571
316Ti
3.000 K
4.500 K
6.000 K
BLUE
RGB-W
CONSTANT
CURRENT
KONSTANT
STROM
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
max 5m
| 51
Monochrome illumination
Dynamic illumination
Installation housings
Concrete pools
with tile covering
Stainless steel pools
Facing concrete pools
Foil-lined pools
(pressure flange)
Thin-walled pools
(pressure flange)
Pools with adhesive/
foil coating
(adhesive flange)
4.0292.01.00
4.0292.02.00
4.0292.03.00
made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic
terminating connection, for welding into stainless steel pools and for installation in
concrete pools with tile covering
made of V4A stainless steel with 1.5m protective cable
tube and M20 plastic terminating connection, for instal-
lation in thin-walled pools and foil-lined pools (pressure
flange ø 244 mm)
made of V4A stainless
steel with 1.5 m protec-
tive cable tube and M20
plastic terminating con-
nection, for installation
in pools with adhesive/
foil coating (adhesive
flange ø 350 mm)

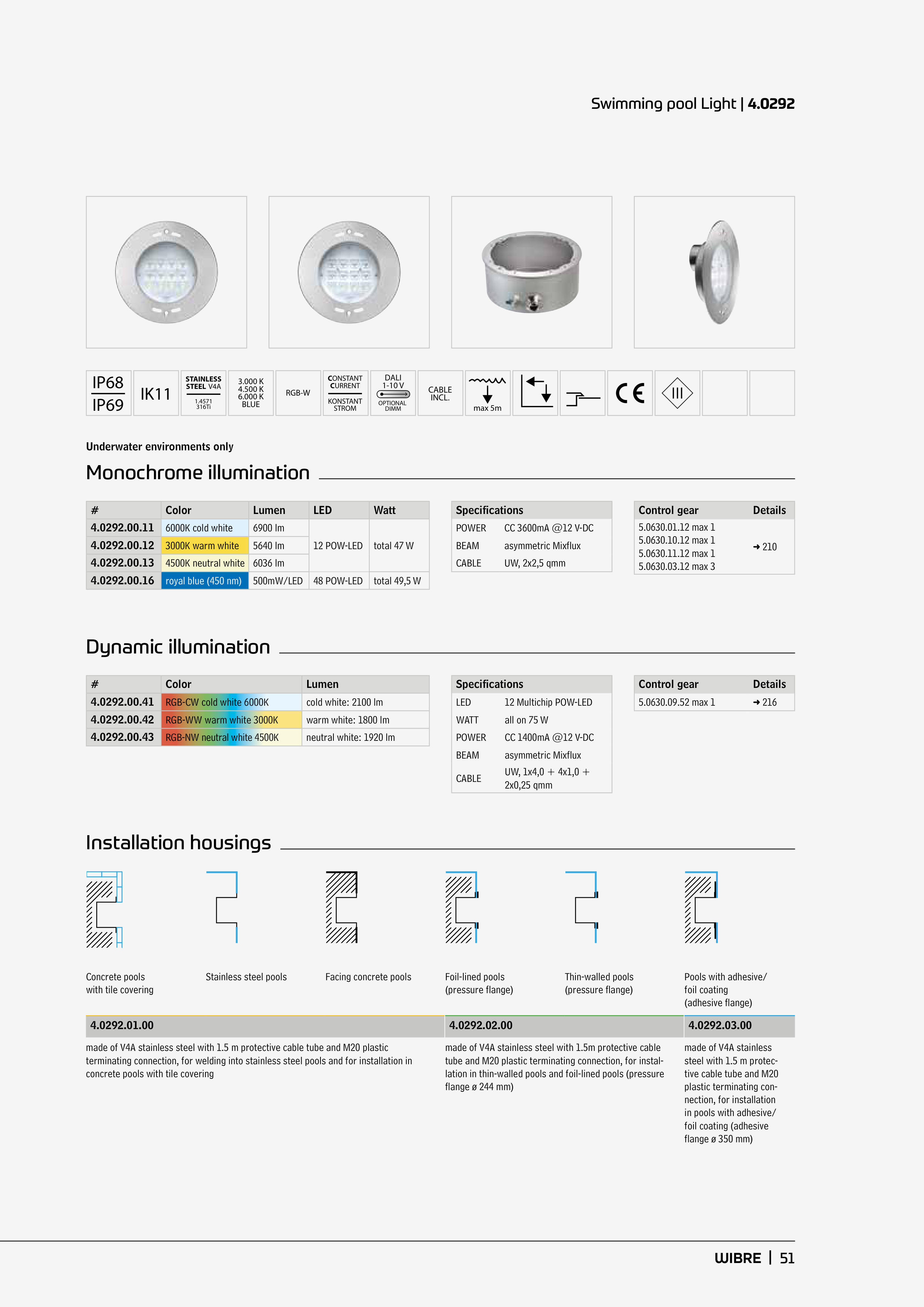

Swimming pool Light | 4.0292
Specifications
LED
12 Multichip POW-LED
WATT
all on 75 W
POWER
CC 1400mA @12 V-DC
BEAM
asymmetric Mixflux
CABLE
UW, 1x4,0 + 4x1,0 +
2x0,25 qmm
Control gear
Details
5.0630.09.52 max 1
➜ 216
#
Color
Lumen
4.0292.00.41
RGB-CW cold white 6000K
cold white: 2100 lm
4.0292.00.42
RGB-WW warm white 3000K
warm white: 1800 lm
4.0292.00.43
RGB-NW neutral white 4500K
neutral white: 1920 lm
Specifications
POWER
CC 3600mA @12 V-DC
BEAM
asymmetric Mixflux
CABLE
UW, 2x2,5 qmm
Control gear
Details
5.0630.01.12 max 1
5.0630.10.12 max 1
5.0630.11.12 max 1
5.0630.03.12 max 3
➜ 210
#
Color
Lumen
LED
Watt
4.0292.00.11
6000K cold white
6900 lm
12 POW-LED
total 47 W
4.0292.00.12
3000K warm white
5640 lm
4.0292.00.13
4500K neutral white 6036 lm
4.0292.00.16
royal blue (450 nm)
500mW/LED
48 POW-LED
total 49,5 W
Underwater environments only
