IP68
IP69
IK09
STAINLESS
STEEL V4A
1.4571
316Ti
ELECTRO
POLISHED
3.000 K
4.500 K
6.000 K
RGB-W
DYNAMIC
WHITE
CABLE
INCL.
max 5m
DALI
1-10 V
OPTIONAL
DIMM
CONSTANT
CURRENT
KONSTANT
STROM
| 39
Monochrome illumination
Dynamic illumination
Installation housings
Concrete pools
with tile covering
Stainless steel pools
Facing concrete pools
Foil-lined pools
(pressure flange)
Thin-walled pools
(pressure flange)
Pools with adhesive/
foil coating
(adhesive flange)
4.0102.01.00
4.0102.02.00
4.0102.02.40
4.0102.03.00
for round and squared cover, made of V4A stainless steel with 1.5 m protective cable
tube and M20 plastic terminating connection, for welding into stainless steel pools
and for installation in concrete pools with tile covering
for round cover, made of
V4A stainless steel with
1.5m protective cable
tube and M20 plastic
terminating connection,
for installation in thin-
walled pools and foil-lined
pools (pressure flange
ø 155 mm)
for squared cover, made
of V4A stainless steel
with 1.5m protective cable
tube and M20 plastic
terminating connection,
for installation in thin-
walled pools and foil-lined
pools (pressure flange
155 x 155 mm)
for round and squared
cover, made of V4A
stainless steel with
1.5 m protective cable
tube and M20 plastic
terminating connection,
for installation in pools
with adhesive/foil
coating (adhesive flange
ø 250 mm)
Specifications
LED
4 POW-LED
Watt
total 18 W
POWER
CC 1200mA @12 V-DC
BEAM
25° medium
CABLE
UW, 2x1,5 qmm
Specifications
LED
4 Multichip POW-LED
WATT
all on 17 W
POWER
CC 350mA @12 V-DC
BEAM
25° medium
CABLE
UW, 8x0,25 qmm
Control gear
Details
5.0630.10.04 max 1
5.0630.00.04 max 1
(without mounting housing)
➜ 210
Control gear
Details
5.0635.19.52 max 2 (4*)
➜ 216
Cover
#
Color
Lumen
Round Cover
4.0102.20.11
6000K cold white
2300 lm
4.0102.20.12
3000K warm white
1880 lm
4.0102.20.13
4500K neutral white
2010 lm
4.0102.20.16
royal blue (450 nm)
500mW/LED
Square Cover
4.0102.40.11
6000K cold white
2300 lm
4.0102.40.12
3000K warm white
1880 lm
4.0102.40.13
4500K neutral white
2010 lm
4.0102.40.16
royal blue (450 nm)
500mW/LED
Cover
#
Color
Lumen
Round Cover
4.0102.20.41
RGB-CW cold white 6000K
cold white: 580 lm
4.0102.20.42
RGB-WW warm white 3000K warm white: 500 lm
4.0102.20.43
RGB-NW neutral white 4500K neutral white: 540 lm
4.0102.20.80
3000K-6000K dynamic white
1000-1160 lm
Square Cover
4.0102.40.41
RGB-CW cold white 6000K
cold white: 580 lm
4.0102.40.42
RGB-WW warm white 3000K warm white: 500 lm
4.0102.40.43
RGB-NW neutral white 4500K neutral white: 540 lm
4.0102.40.80
3000K-6000K dynamic white
1000-1160 lm

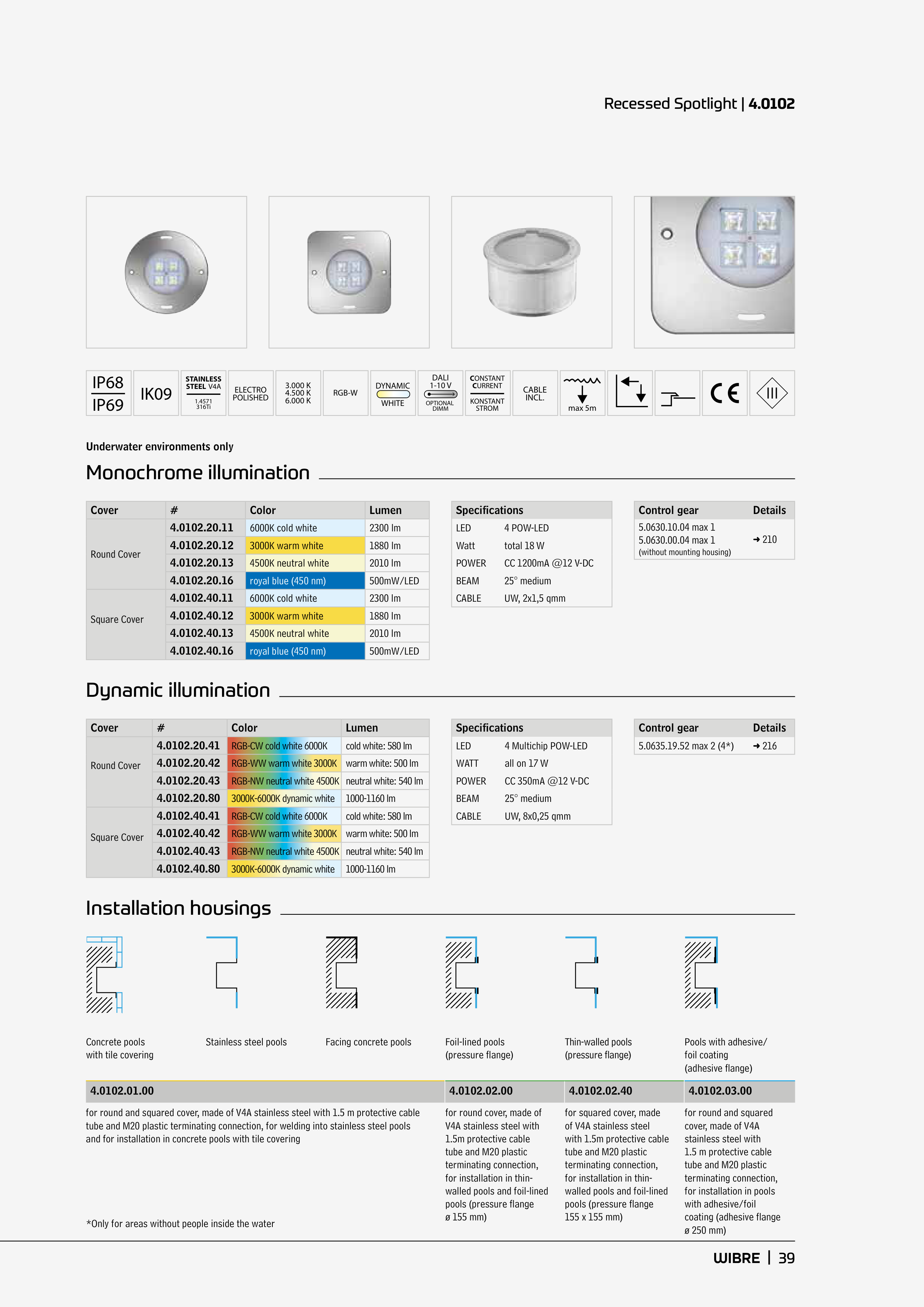

Recessed Spotlight | 4.0102
*Only for areas without people inside the water
Underwater environments only
