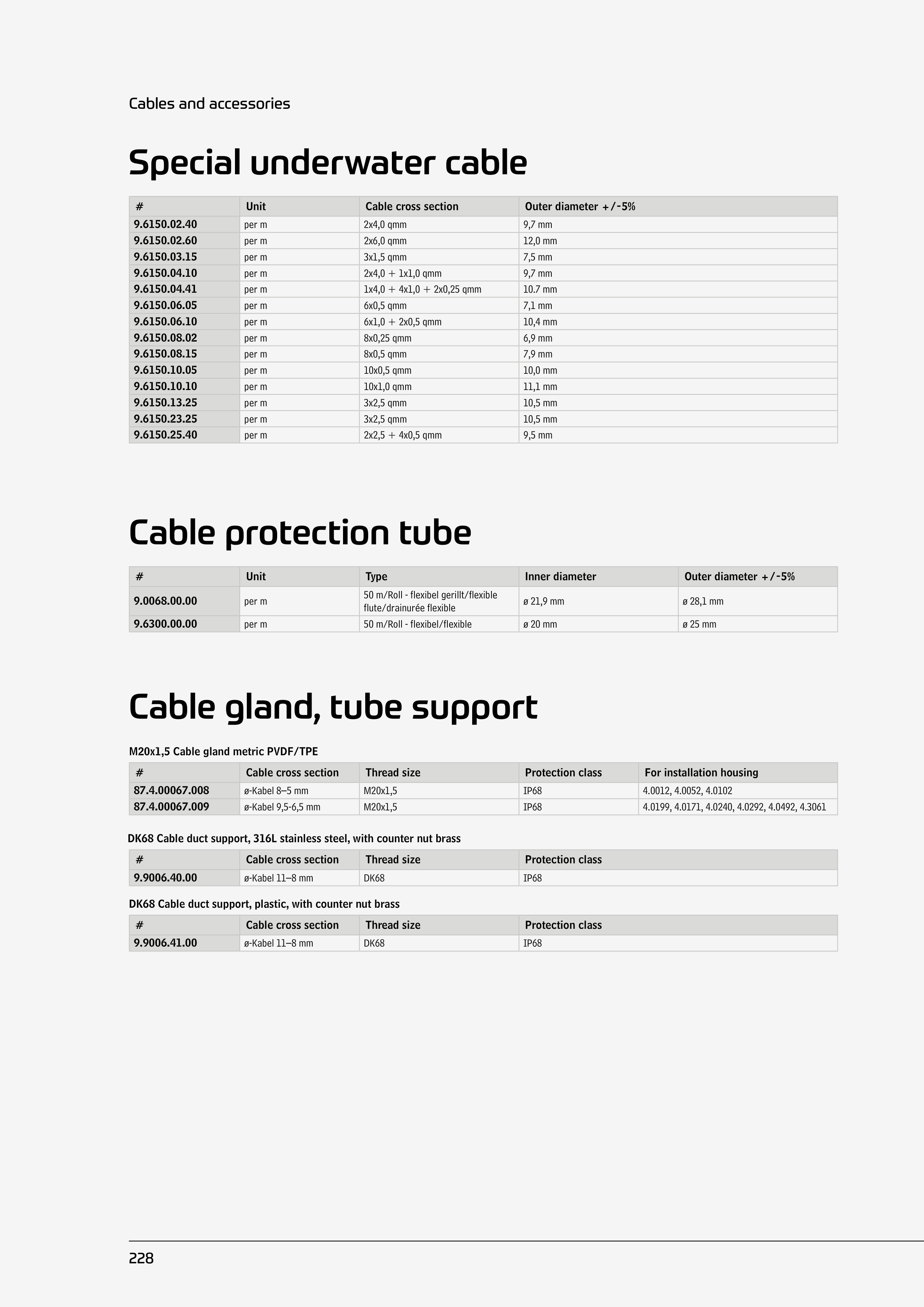

228
M20x1,5 Cable gland metric PVDF/TPE
DK68 Cable duct support, 316L stainless steel, with counter nut brass
DK68 Cable duct support, plastic, with counter nut brass
#
Unit
Cable cross section
Outer diameter +/-5%
9.6150.02.40
per m
2x4,0 qmm
9,7 mm
9.6150.02.60
per m
2x6,0 qmm
12,0 mm
9.6150.03.15
per m
3x1,5 qmm
7,5 mm
9.6150.04.10
per m
2x4,0 + 1x1,0 qmm
9,7 mm
9.6150.04.41
per m
1x4,0 + 4x1,0 + 2x0,25 qmm
10.7 mm
9.6150.06.05
per m
6x0,5 qmm
7,1 mm
9.6150.06.10
per m
6x1,0 + 2x0,5 qmm
10,4 mm
9.6150.08.02
per m
8x0,25 qmm
6,9 mm
9.6150.08.15
per m
8x0,5 qmm
7,9 mm
9.6150.10.05
per m
10x0,5 qmm
10,0 mm
9.6150.10.10
per m
10x1,0 qmm
11,1 mm
9.6150.13.25
per m
3x2,5 qmm
10,5 mm
9.6150.23.25
per m
3x2,5 qmm
10,5 mm
9.6150.25.40
per m
2x2,5 + 4x0,5 qmm
9,5 mm
#
Unit
Type
Inner diameter
Outer diameter +/-5%
9.0068.00.00
per m
50 m/Roll - flexibel gerillt/flexible
flute/drainurée flexible
ø 21,9 mm
ø 28,1 mm
9.6300.00.00
per m
50 m/Roll - flexibel/flexible
ø 20 mm
ø 25 mm
#
Cable cross section
Thread size
Protection class
For installation housing
87.4.00067.008
ø-Kabel 8–5 mm
M20x1,5
IP68
4.0012, 4.0052, 4.0102
87.4.00067.009
ø-Kabel 9,5-6,5 mm
M20x1,5
IP68
4.0199, 4.0171, 4.0240, 4.0292, 4.0492, 4.3061
#
Cable cross section
Thread size
Protection class
9.9006.40.00
ø-Kabel 11–8 mm
DK68
IP68
#
Cable cross section
Thread size
Protection class
9.9006.41.00
ø-Kabel 11–8 mm
DK68
IP68
Special underwater cable
Cable protection tube
Cable gland, tube support
Cables and accessories
