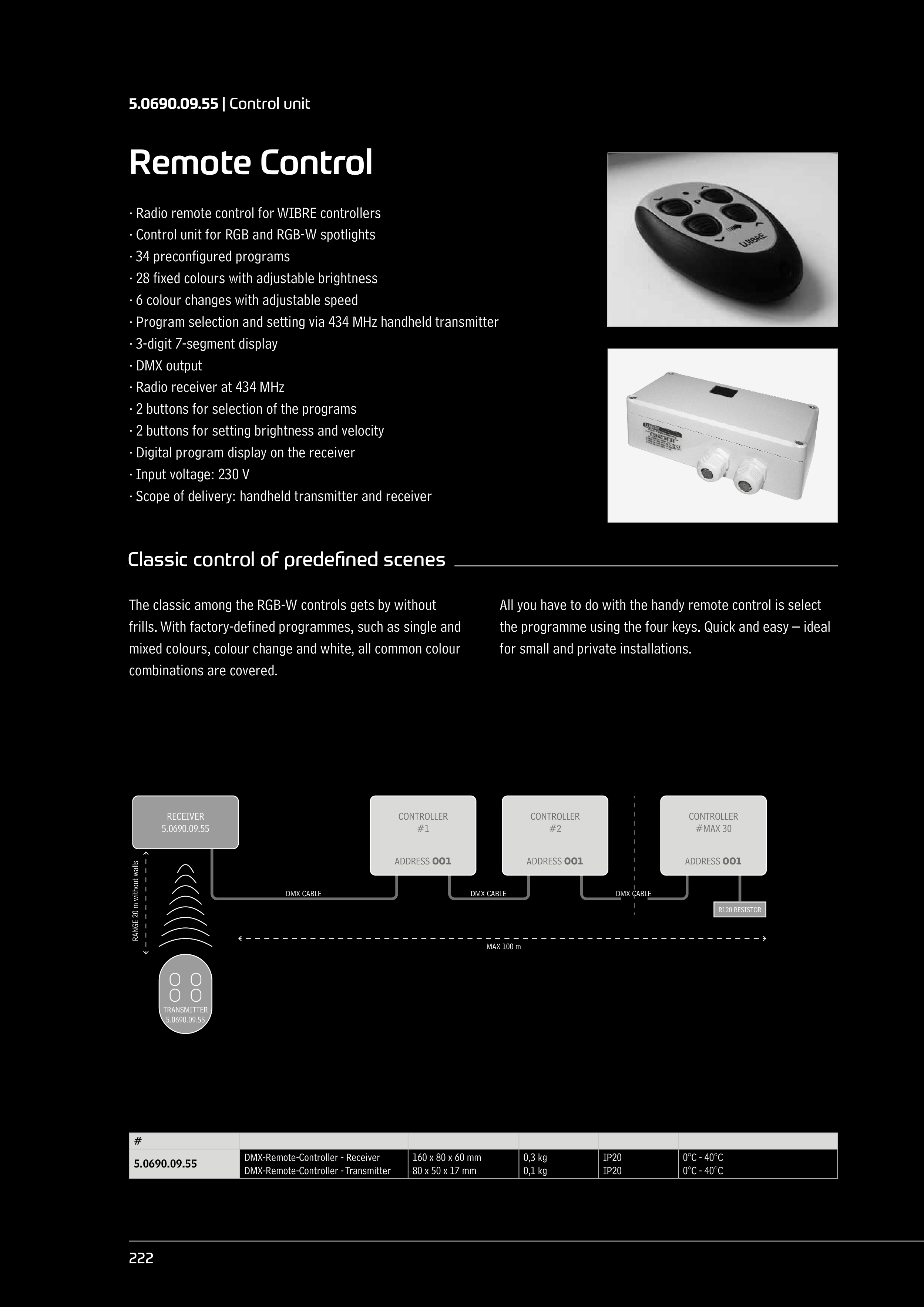

Remote Control
· Radio remote control for WIBRE controllers
· Control unit for RGB and RGB-W spotlights
· 34 preconfigured programs
· 28 fixed colours with adjustable brightness
· 6 colour changes with adjustable speed
· Program selection and setting via 434 MHz handheld transmitter
· 3-digit 7-segment display
· DMX output
· Radio receiver at 434 MHz
· 2 buttons for selection of the programs
· 2 buttons for setting brightness and velocity
· Digital program display on the receiver
· Input voltage: 230 V
· Scope of delivery: handheld transmitter and receiver
#
5.0690.09.55
DMX-Remote-Controller - Receiver
DMX-Remote-Controller - Transmitter
160 x 80 x 60 mm
80 x 50 x 17 mm
0,3 kg
0,1 kg
IP20
IP20
0°C - 40°C
0°C - 40°C
5.0690.09.55 | Control unit
Classic control of predefined scenes
The classic among the RGB-W controls gets by without
frills. With factory-defined programmes, such as single and
mixed colours, colour change and white, all common colour
combinations are covered.
All you have to do with the handy remote control is select
the programme using the four keys. Quick and easy – ideal
for small and private installations.
RANGE 20 m without walls
MAX 100 m
DMX CABLE
DMX CABLE
DMX CABLE
TRANSMITTER
5.0690.09.55
R120 RESISTOR
CONTROLLER
#MAX 30
ADDRESS 001
CONTROLLER
#1
ADDRESS 001
CONTROLLER
#2
ADDRESS 001
RECEIVER
5.0690.09.55
