· Constant current and constant voltage power supplies for POW-LED modules
· Controlled constant output current
· SELV
· Over temperature and short circuit protection
· Overload and overvoltage protection
· Identification of polarity: +/-
· Safety: EN 61347
· Radio Interferences: EN 55015
· Harmonics: EN 61000-3-2
· Immunity: EN 61547
· POW-LED modules on constant-current power supply units may only be operated in series connection
· POW-LED modules on constant-voltage power supply units may only be operated in parallel connection
· For detailed information and connection diagrams, please refer to the respective installation manual

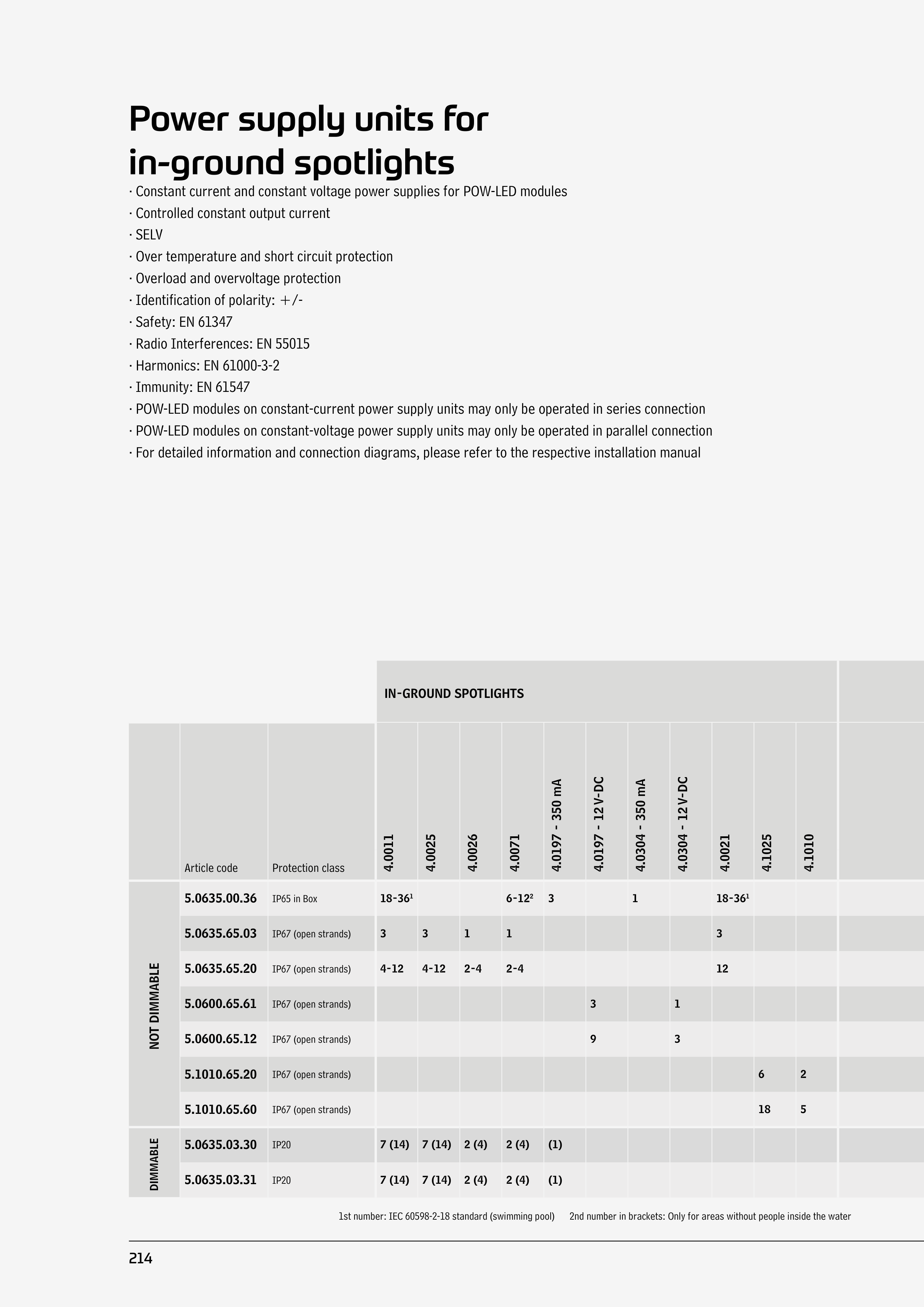

Power supply units for
in-ground spotlights
IN-GROUND SPOTLIGHTS
TECHNICAL DETAILS
Article code
Protection class
4.0011
4.0025
4.0026
4.0071
4.0197 - 350 mA
4.0197 - 12 V-DC
4.0304 - 350 mA
4.0304 - 12 V-DC
4.0021
4.1025
4.1010
Modus
VDE protection
specification
Input voltage
Input current
max.
Frequency
Output current
max.
Output power
max.
Efficiency
Secondary voltage
Ambient temperature
ta max.
Automatic circuit breakers
max. devices per type B16
Type of dimming
Dimensions LxWxH
Weight
DIN rail mounting
Mounting box IP65
[SELV]
[V AC]
[A AC
@230V]
[Hz]
[mA]
[W]
[%]
[V DC]
[°C]
[mm]
[kg]
NOT DIMMABLE
5.0635.00.36
IP65 in Box
18-361
6-122
3
1
18-361
CC
SELV
90-254
0,3
50-60
3x350
10-55
82
14-48
45
Ð
254x180x120
1,8
Ð
5.0635.65.03
IP67 (open strands)
3
3
1
1
3
CC
SELV
90-264
0,1
47-63
350
3
72
3-12
40
157
Ð
52x30x23
0,45
Ð
on request
5.0635.65.20
IP67 (open strands)
4-12
4-12
2-4
2-4
12
CC
Class II
90-264
0,35
47-63
350
16,8
83
9-48
35
8
Ð
118x35x26
0,22
Ð
9.0630.65.30
5.0600.65.61
IP67 (open strands)
3
1
CV
SELV
90-305
0,4
47-63
5000
60
86
12
50
8
Ð
150x53x35
0,5
Ð
on request
5.0600.65.12
IP67 (open strands)
9
3
CV
SELV
90-305
0,65
47-63
10000
120
89
12
50
4
Ð
191x63x38
0,97
Ð
on request
5.1010.65.20
IP67 (open strands)
6
2
CV
Class II
90-264
0,35
47-63
840
20,2
83
24
50
8
Ð
118x35x26
0,22
Ð
5.1010.65.60
IP67 (open strands)
18
5
CV
SELV
90-264
0,4
47-63
2500
60
87
24
50
12
Ð
196x62x39
0,88
Ð
DIMMABLE
5.0635.03.30
IP20
7 (14)
7 (14)
2 (4)
2 (4)
(1)
CC
SELV
120-250 (ENEC)
120-277 (UL)
0,35
50-60
350
30
85
2-55
50
53
DALI 2
130x72x28
0,286
Ð
9.0630.65.30
5.0635.03.31
IP20
7 (14)
7 (14)
2 (4)
2 (4)
(1)
CC
SELV
120-250 (ENEC)
120-277 (UL)
0,35
50-60
350
30
85
2-55
50
53
0-10 V
130x72x28
0,286
Ð
9.0630.65.30
1st number: IEC 60598-2-18 standard (swimming pool) 2nd number in brackets: Only for areas without people inside the water
