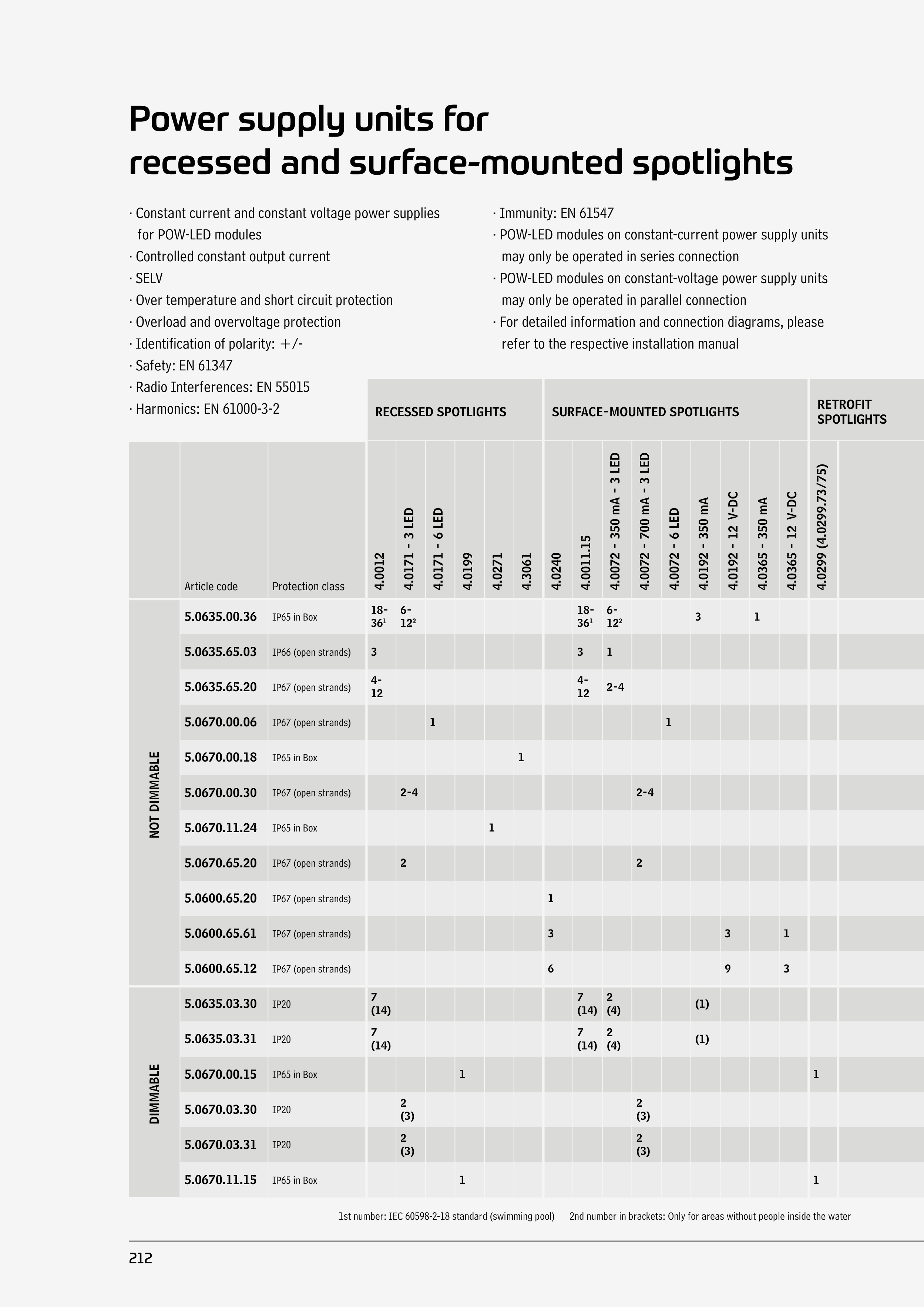

Power supply units for
recessed and surface-mounted spotlights
RECESSED SPOTLIGHTS
SURFACE-MOUNTED SPOTLIGHTS
RETROFIT
SPOTLIGHTS
TECHNICAL DETAILS
Article code
Protection class
4.0012
4.0171 - 3 LED
4.0171 - 6 LED
4.0199
4.0271
4.3061
4.0240
4.0011.15
4.0072 - 350 mA - 3 LED
4.0072 - 700 mA - 3 LED
4.0072 - 6 LED
4.0192 - 350 mA
4.0192 - 12 V-DC
4.0365 - 350 mA
4.0365 - 12 V-DC
4.0299 (4.0299.73/75)
Modus
VDE protection
specification
Input voltage
Input current
max.
Frequency
Output current
max.
Output power
max.
Efficiency
Secondary voltage
Ambient temperature
ta max.
Automatic circuit breakers
max. devices per type B16
Type of dimming
Dimensions LxWxH
Weight
DIN rail mounting
Mounting box IP65
[SELV]
[V AC]
[A AC
@230V]
[Hz]
[mA]
[W]
[%]
[V DC]
[°C]
[mm]
[kg]
NOT DIMMABLE
5.0635.00.36
IP65 in Box
18-
361
6-
122
18-
361
6-
122
3
1
CC
SELV
90-254
0,3
50-60
3x350
10-55
82
14-48
45
Ð
254x180x120
1,8
Ð
5.0635.65.03
IP66 (open strands)
3
3
1
CC
SELV
90-264
0,1
47-63
350
3
72
3-12
40
157
Ð
52x30x23
0,45
Ð
on request
5.0635.65.20
IP67 (open strands)
4-
12
4-
12
2-4
CC
Class II
90-264
0,35
47-63
350
16,8
83
9-48
35
8
Ð
118x35x26
0,22
Ð
9.0630.65.30
5.0670.00.06
IP67 (open strands)
1
1
CC
Class II
90-264
0,7
47-63
1400
33,6
85
9-24
50
4
Ð
148x40x30
0,34
Ð
on request
5.0670.00.18
IP65 in Box
1
CC
SELV
90-254
0,7
50-60
3x700
10-55
82
3-28
45
5
Ð
254x180x120
1,8
Ð
5.0670.00.30
IP67 (open strands)
2-4
2-4
CC
Class II
90-264
0,7
47-63
700
33,6
85
9-48
50
4
Ð
148x40x30
0,34
Ð
Ð
5.0670.11.24
IP65 in Box
1
CC
SELV
90-250
0,4
50-60
2100
85
82
12
45
Ð
254x180x90
2,77
Ð
5.0670.65.20
IP67 (open strands)
2
2
CC
Class II
90-264
0,35
47-63
700
21
83
9-30
40
8
Ð
118x35x26
0,22
Ð
9.0630.65.30
5.0600.65.20
IP67 (open strands)
1
CV
Class II
90-264
0,35
47-63
1670
20
81
12
50
8
Ð
118x35x26
0,22
Ð
on request
5.0600.65.61
IP67 (open strands)
3
3
1
CV
SELV
90-305
0,4
47-63
5000
60
86
12
50
8
Ð
150x53x35
0,5
Ð
on request
5.0600.65.12
IP67 (open strands)
6
9
3
CV
SELV
90-305
0,65
47-63
10000
120
89
12
50
4
Ð
191x63x38
0,97
Ð
on request
DIMMABLE
5.0635.03.30
IP20
7
(14)
7
(14)
2
(4)
(1)
CC
SELV
120-250 (ENEC)
120-277 (UL)
0,35
50-60
350
30
85
2-55
50
53
DALI 2
130x72x28
0,286
Ð
9.0630.65.30
5.0635.03.31
IP20
7
(14)
7
(14)
2
(4)
(1)
CC
SELV
120-250 (ENEC)
120-277 (UL)
0,35
50-60
350
30
85
2-55
50
53
0-10 V
130x72x28
0,286
Ð
9.0630.65.30
5.0670.00.15
IP65 in Box
1
1
CC
SELV
90-264
0,72
50-60
3500
55
80
12
45
01-10 V
180x182x84
0,8
Ð
5.0670.03.30
IP20
2
(3)
2
(3)
CC
SELV
120-250 (ENEC)
120-277 (UL)
0,35
50-60
700
30
85
2-55
50
53
DALI 2
130x72x28
0,286
Ð
9.0630.65.30
5.0670.03.31
IP20
2
(3)
2
(3)
CC
SELV
120-250 (ENEC)
120-277 (UL)
0,35
50-60
700
30
85
2-55
50
53
0-10 V
130x72x28
0,286
Ð
9.0630.65.12
5.0670.11.15
IP65 in Box
1
1
CC
SELV
90-305
0,32
47-63
3500
60
87,5
9-15
50
9
1-10 V
254x180x111
1,0
Ð
· Constant current and constant voltage power supplies
for POW-LED modules
· Controlled constant output current
· SELV
· Over temperature and short circuit protection
· Overload and overvoltage protection
· Identification of polarity: +/-
· Safety: EN 61347
· Radio Interferences: EN 55015
· Harmonics: EN 61000-3-2
· Immunity: EN 61547
· POW-LED modules on constant-current power supply units
may only be operated in series connection
· POW-LED modules on constant-voltage power supply units
may only be operated in parallel connection
· For detailed information and connection diagrams, please
refer to the respective installation manual
1st number: IEC 60598-2-18 standard (swimming pool) 2nd number in brackets: Only for areas without people inside the water
