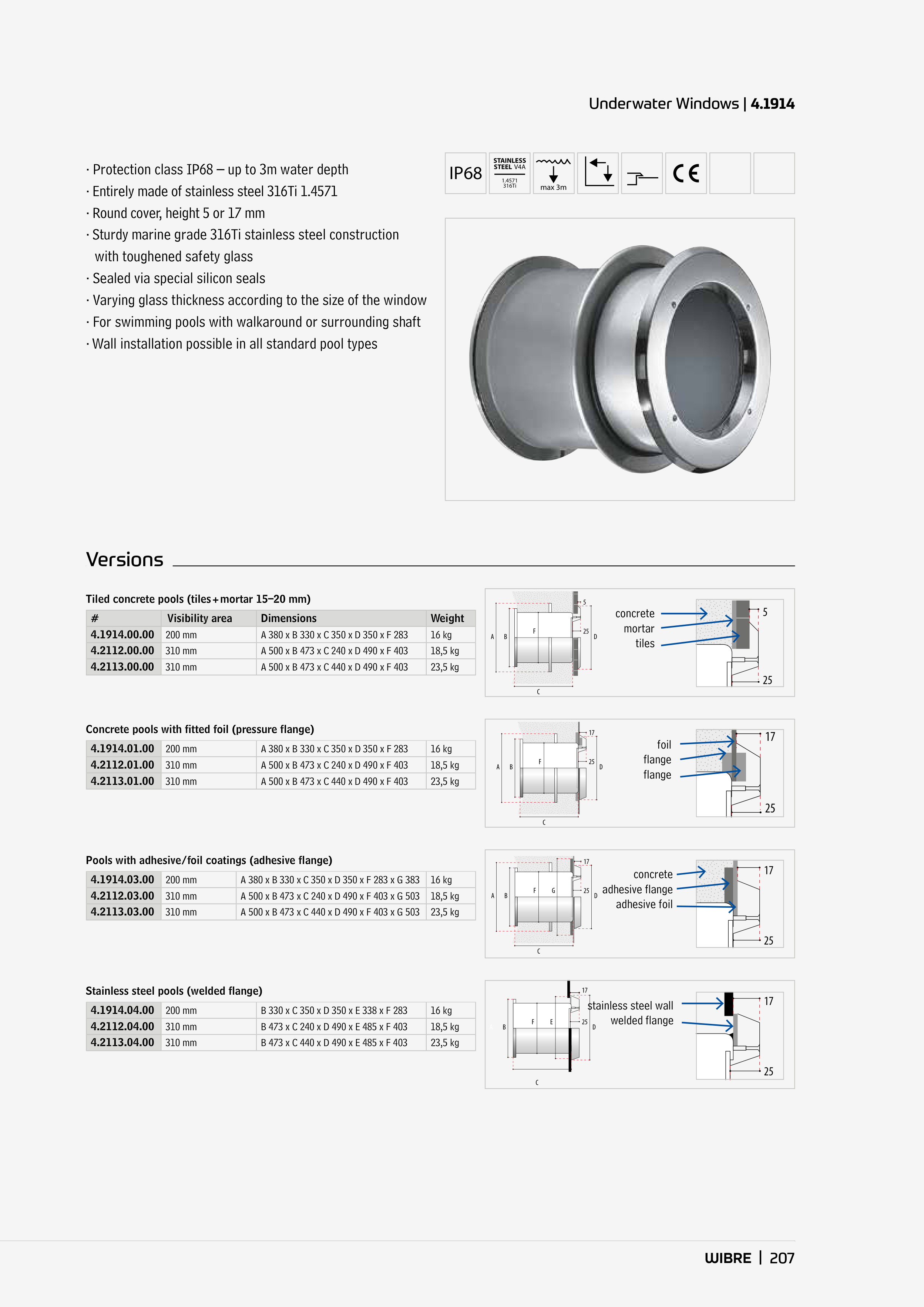

| 207
· Protection class IP68 – up to 3m water depth
· Entirely made of stainless steel 316Ti 1.4571
· Round cover, height 5 or 17 mm
· Sturdy marine grade 316Ti stainless steel construction
with toughened safety glass
· Sealed via special silicon seals
· Varying glass thickness according to the size of the window
· For swimming pools with walkaround or surrounding shaft
· Wall installation possible in all standard pool types
IP68
STAINLESS
STEEL V4A
1.4571
316Ti
max 3m
#
Visibility area
Dimensions
Weight
4.1914.00.00
200 mm
A 380 x B 330 x C 350 x D 350 x F 283
16 kg
4.2112.00.00
310 mm
A 500 x B 473 x C 240 x D 490 x F 403
18,5 kg
4.2113.00.00
310 mm
A 500 x B 473 x C 440 x D 490 x F 403
23,5 kg
4.1914.01.00
200 mm
A 380 x B 330 x C 350 x D 350 x F 283
16 kg
4.2112.01.00
310 mm
A 500 x B 473 x C 240 x D 490 x F 403
18,5 kg
4.2113.01.00
310 mm
A 500 x B 473 x C 440 x D 490 x F 403
23,5 kg
4.1914.03.00
200 mm
A 380 x B 330 x C 350 x D 350 x F 283 x G 383
16 kg
4.2112.03.00
310 mm
A 500 x B 473 x C 240 x D 490 x F 403 x G 503
18,5 kg
4.2113.03.00
310 mm
A 500 x B 473 x C 440 x D 490 x F 403 x G 503
23,5 kg
4.1914.04.00
200 mm
B 330 x C 350 x D 350 x E 338 x F 283
16 kg
4.2112.04.00
310 mm
B 473 x C 240 x D 490 x E 485 x F 403
18,5 kg
4.2113.04.00
310 mm
B 473 x C 440 x D 490 x E 485 x F 403
23,5 kg
Tiled concrete pools (tiles+mortar 15–20 mm)
Concrete pools with fitted foil (pressure flange)
Pools with adhesive/foil coatings (adhesive flange)
Stainless steel pools (welded flange)
25
5
C
A
B
F
D
25
5
concrete
mortar
tiles
25
17
C
A
B
D
F
440
500
25
17
465
foil
flange
flange
25
17
C
A
B
D
G
F
440
500
25
17
465
concrete
adhesive flange
adhesive foil
25
17
C
A
B
D
E
F
440
500
25
17
465
stainless steel wall
welded flange
Versions
Underwater Windows | 4.1914
