| 181
Monochrome illumination
Dynamic illumination

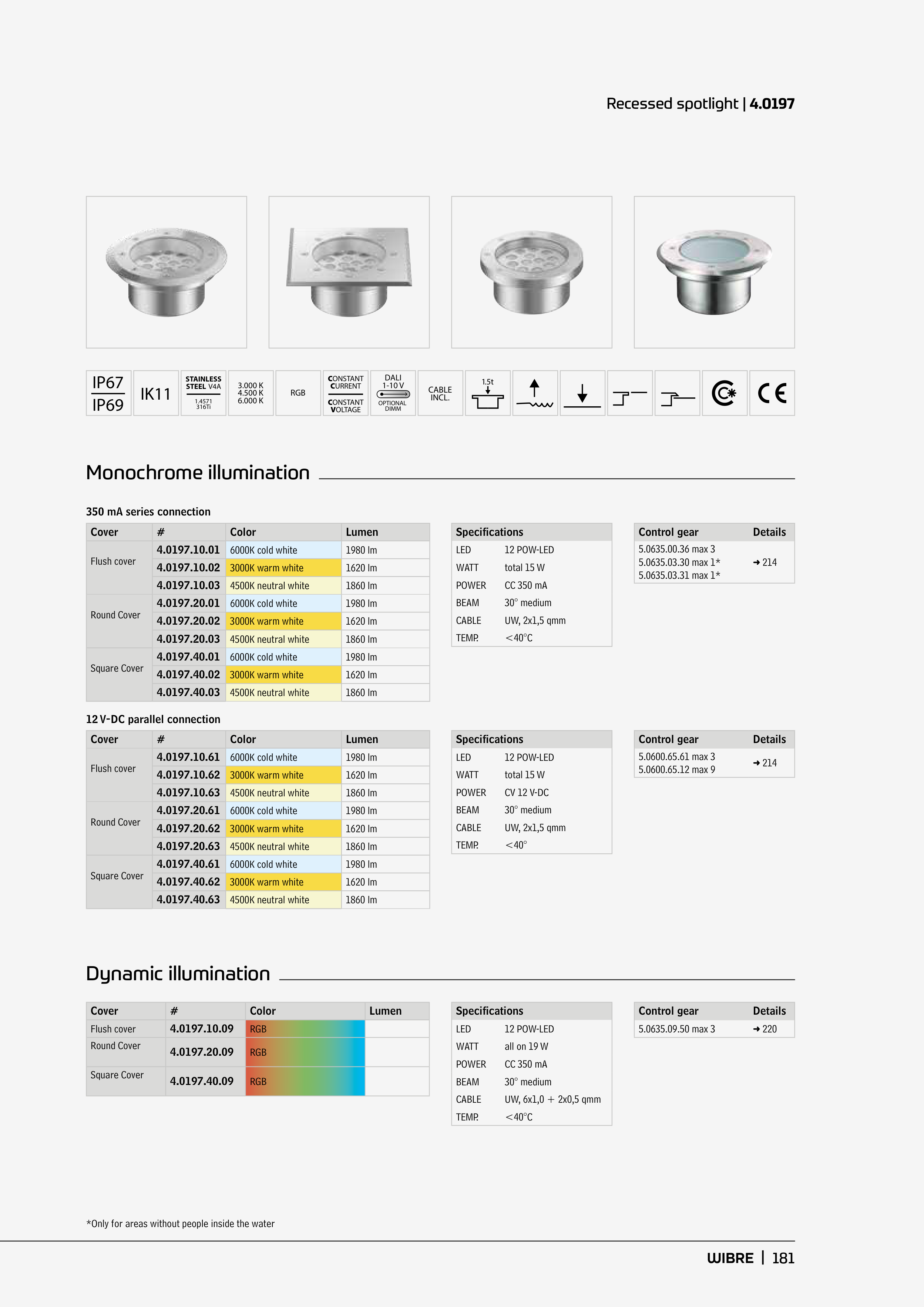

Recessed spotlight | 4.0197
Specifications
LED
12 POW-LED
WATT
all on 19 W
POWER
CC 350 mA
BEAM
30° medium
CABLE
UW, 6x1,0 + 2x0,5 qmm
TEMP.
<40°C
Specifications
LED
12 POW-LED
WATT
total 15 W
POWER
CC 350 mA
BEAM
30° medium
CABLE
UW, 2x1,5 qmm
TEMP.
<40°C
Specifications
LED
12 POW-LED
WATT
total 15 W
POWER
CV 12 V-DC
BEAM
30° medium
CABLE
UW, 2x1,5 qmm
TEMP.
<40°
Control gear
Details
5.0635.09.50 max 3
➜ 220
Control gear
Details
5.0635.00.36 max 3
5.0635.03.30 max 1*
5.0635.03.31 max 1*
➜ 214
Control gear
Details
5.0600.65.61 max 3
5.0600.65.12 max 9
➜ 214
Cover
#
Color
Lumen
Flush cover
4.0197.10.01
6000K cold white
1980 lm
4.0197.10.02
3000K warm white
1620 lm
4.0197.10.03
4500K neutral white
1860 lm
Round Cover
4.0197.20.01
6000K cold white
1980 lm
4.0197.20.02
3000K warm white
1620 lm
4.0197.20.03
4500K neutral white
1860 lm
Square Cover
4.0197.40.01
6000K cold white
1980 lm
4.0197.40.02
3000K warm white
1620 lm
4.0197.40.03
4500K neutral white
1860 lm
Cover
#
Color
Lumen
Flush cover
4.0197.10.61
6000K cold white
1980 lm
4.0197.10.62
3000K warm white
1620 lm
4.0197.10.63
4500K neutral white
1860 lm
Round Cover
4.0197.20.61
6000K cold white
1980 lm
4.0197.20.62
3000K warm white
1620 lm
4.0197.20.63
4500K neutral white
1860 lm
Square Cover
4.0197.40.61
6000K cold white
1980 lm
4.0197.40.62
3000K warm white
1620 lm
4.0197.40.63
4500K neutral white
1860 lm
IP67
IP69
IK11
STAINLESS
STEEL V4A
1.4571
316Ti
3.000 K
4.500 K
6.000 K
RGB
CONSTANT
CURRENT
CONSTANT
VOLTAGE
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
1.5t
Cover
#
Color
Lumen
Flush cover
4.0197.10.09
RGB
Round Cover
4.0197.20.09
RGB
Square Cover
4.0197.40.09
RGB
350 mA series connection
12 V-DC parallel connection
*Only for areas without people inside the water
