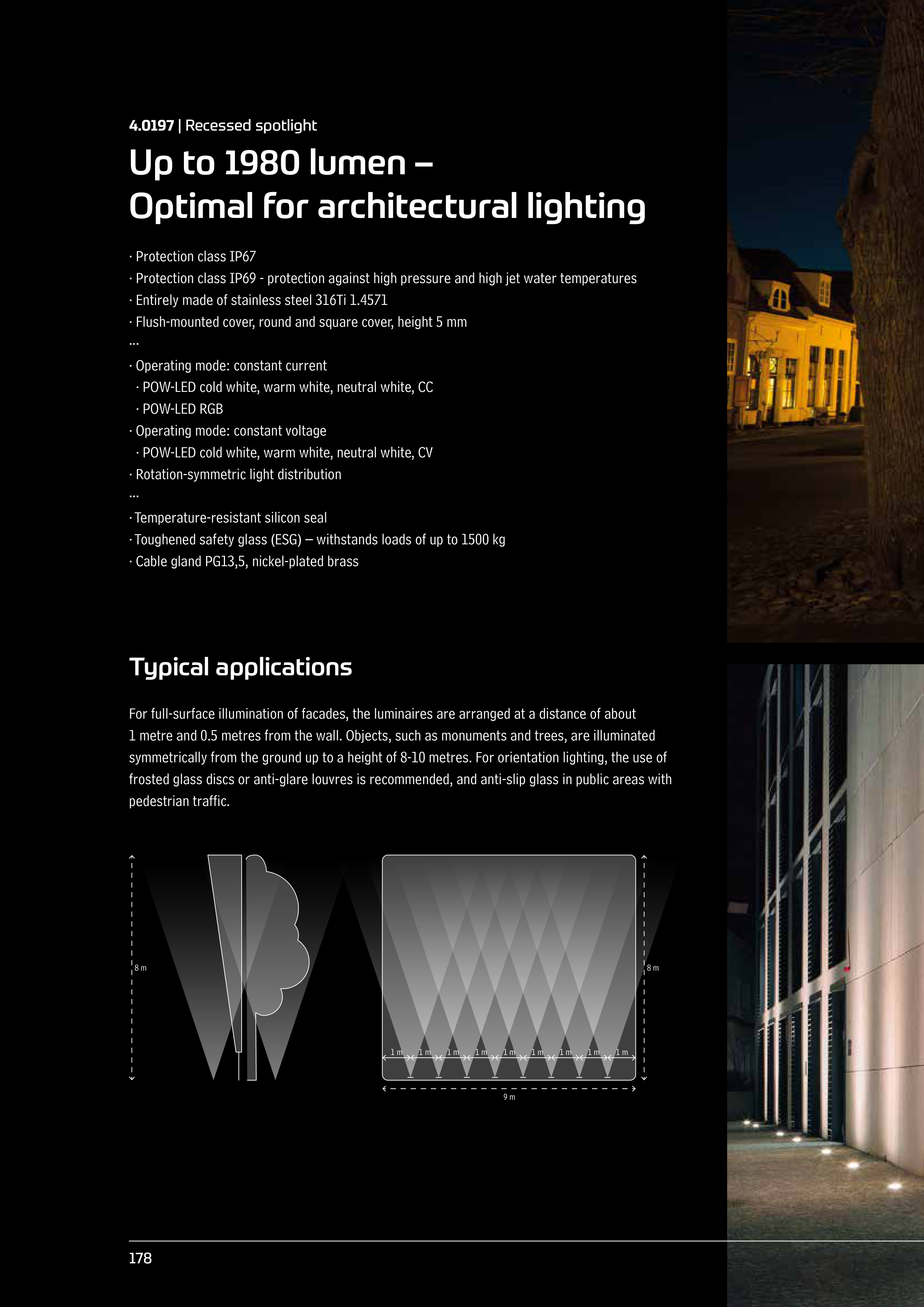

178
Up to 1980 lumen –
Optimal for architectural lighting
· Protection class IP67
· Protection class IP69 - protection against high pressure and high jet water temperatures
· Entirely made of stainless steel 316Ti 1.4571
· Flush-mounted cover, round and square cover, height 5 mm
···
· Operating mode: constant current
· POW-LED cold white, warm white, neutral white, CC
· POW-LED RGB
· Operating mode: constant voltage
· POW-LED cold white, warm white, neutral white, CV
· Rotation-symmetric light distribution
···
· Temperature-resistant silicon seal
· Toughened safety glass (ESG) – withstands loads of up to 1500 kg
· Cable gland PG13,5, nickel-plated brass
Typical applications
For full-surface illumination of facades, the luminaires are arranged at a distance of about
1 metre and 0.5 metres from the wall. Objects, such as monuments and trees, are illuminated
symmetrically from the ground up to a height of 8-10 metres. For orientation lighting, the use of
frosted glass discs or anti-glare louvres is recommended, and anti-slip glass in public areas with
pedestrian traffic.
8 m
8 m
9 m
1 m
1 m
1 m
1 m
1 m
1 m
1 m
1 m
1 m
4.0197 | Recessed spotlight
