| 163

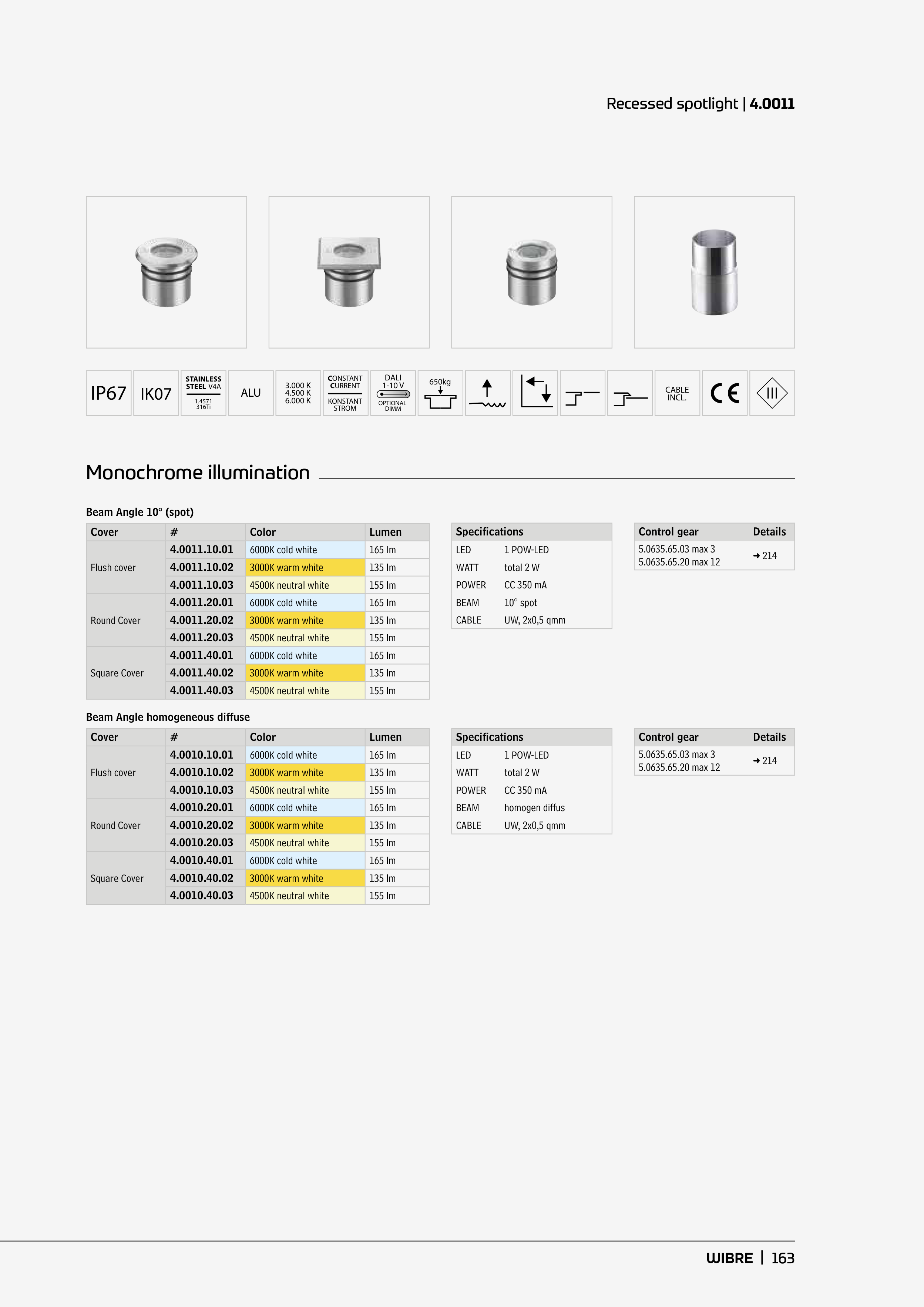

Recessed spotlight | 4.0011
IP67 IK07
STAINLESS
STEEL V4A
1.4571
316Ti
ALU
3.000 K
4.500 K
6.000 K
CONSTANT
CURRENT
KONSTANT
STROM
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
650kg
Monochrome illumination
Specifications
LED
1 POW-LED
WATT
total 2 W
POWER
CC 350 mA
BEAM
10° spot
CABLE
UW, 2x0,5 qmm
Specifications
LED
1 POW-LED
WATT
total 2 W
POWER
CC 350 mA
BEAM
homogen diffus
CABLE
UW, 2x0,5 qmm
Control gear
Details
5.0635.65.03 max 3
5.0635.65.20 max 12
➜ 214
Control gear
Details
5.0635.65.03 max 3
5.0635.65.20 max 12
➜ 214
Beam Angle 10° (spot)
Beam Angle homogeneous diffuse
Cover
#
Color
Lumen
Flush cover
4.0011.10.01
6000K cold white
165 lm
4.0011.10.02
3000K warm white
135 lm
4.0011.10.03
4500K neutral white
155 lm
Round Cover
4.0011.20.01
6000K cold white
165 lm
4.0011.20.02
3000K warm white
135 lm
4.0011.20.03
4500K neutral white
155 lm
Square Cover
4.0011.40.01
6000K cold white
165 lm
4.0011.40.02
3000K warm white
135 lm
4.0011.40.03
4500K neutral white
155 lm
Cover
#
Color
Lumen
Flush cover
4.0010.10.01
6000K cold white
165 lm
4.0010.10.02
3000K warm white
135 lm
4.0010.10.03
4500K neutral white
155 lm
Round Cover
4.0010.20.01
6000K cold white
165 lm
4.0010.20.02
3000K warm white
135 lm
4.0010.20.03
4500K neutral white
155 lm
Square Cover
4.0010.40.01
6000K cold white
165 lm
4.0010.40.02
3000K warm white
135 lm
4.0010.40.03
4500K neutral white
155 lm
