154
Additional parts
double cable gland
made of V4A-stainless
steel
4.0004.40.16
glass disc, frosted
for softer light
distribution (light loss
approx. -15%)
for lock ring
4.0230.01.00
spike
Stainless steel,
395 mm, for mounting
foot 90°
4.0305.50.00

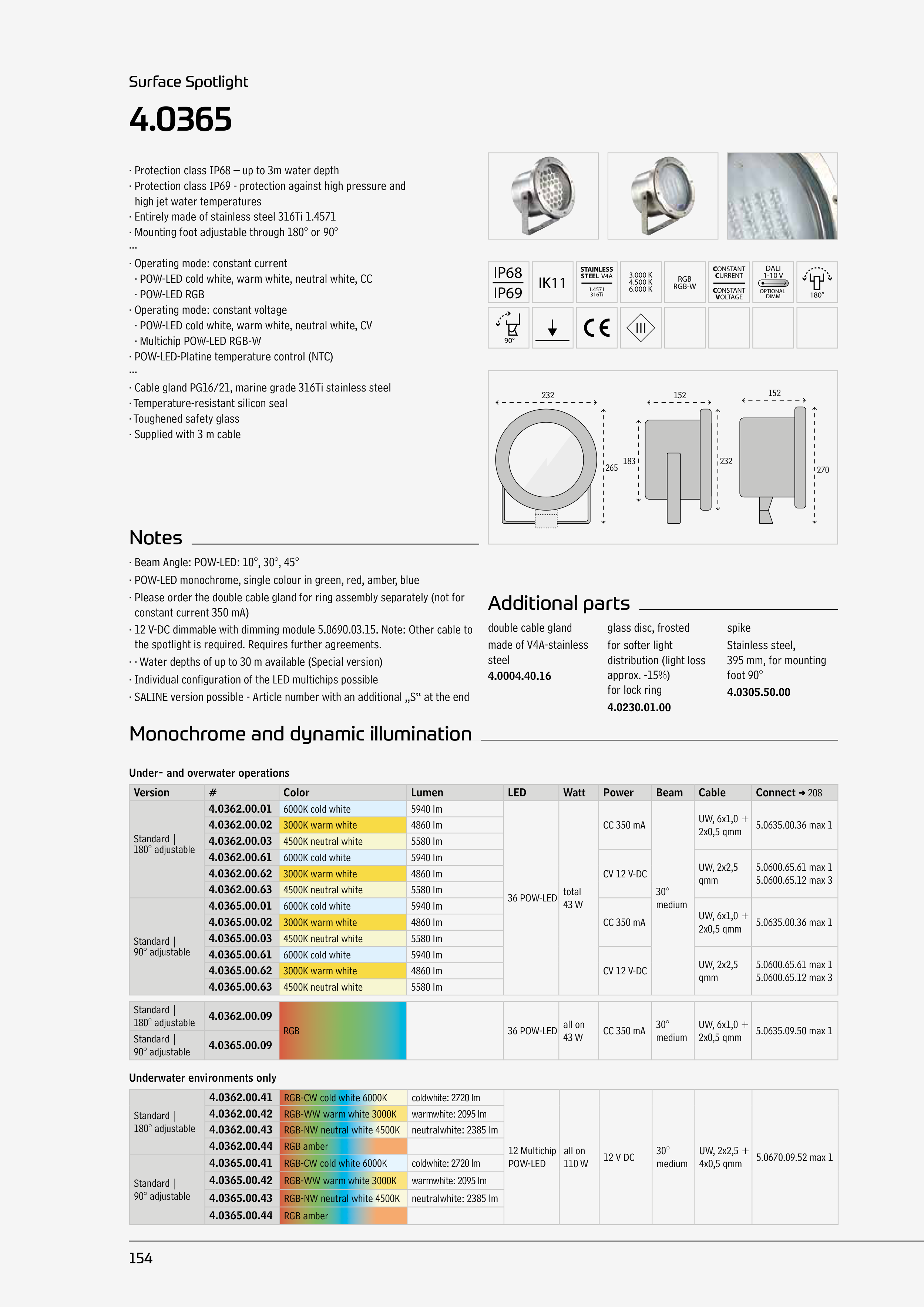

Surface Spotlight
· Protection class IP68 – up to 3m water depth
· Protection class IP69 - protection against high pressure and
high jet water temperatures
· Entirely made of stainless steel 316Ti 1.4571
· Mounting foot adjustable through 180° or 90°
···
· Operating mode: constant current
· POW-LED cold white, warm white, neutral white, CC
· POW-LED RGB
· Operating mode: constant voltage
· POW-LED cold white, warm white, neutral white, CV
· Multichip POW-LED RGB-W
· POW-LED-Platine temperature control (NTC)
···
· Cable gland PG16/21, marine grade 316Ti stainless steel
· Temperature-resistant silicon seal
· Toughened safety glass
· Supplied with 3 m cable
4.0365
265
270
183
232
152
232
152
Monochrome and dynamic illumination
Under- and overwater operations
Version
#
Color
Lumen
LED
Watt
Power
Beam
Cable
Connect ➜ 208
Standard |
180° adjustable
4.0362.00.01
6000K cold white
5940 lm
36 POW-LED total
43 W
CC 350 mA
30°
medium
UW, 6x1,0 +
2x0,5 qmm
5.0635.00.36 max 1
4.0362.00.02
3000K warm white
4860 lm
4.0362.00.03
4500K neutral white
5580 lm
4.0362.00.61
6000K cold white
5940 lm
CV 12 V-DC
UW, 2x2,5
qmm
5.0600.65.61 max 1
5.0600.65.12 max 3
4.0362.00.62
3000K warm white
4860 lm
4.0362.00.63
4500K neutral white
5580 lm
Standard |
90° adjustable
4.0365.00.01
6000K cold white
5940 lm
CC 350 mA
UW, 6x1,0 +
2x0,5 qmm
5.0635.00.36 max 1
4.0365.00.02
3000K warm white
4860 lm
4.0365.00.03
4500K neutral white
5580 lm
4.0365.00.61
6000K cold white
5940 lm
CV 12 V-DC
UW, 2x2,5
qmm
5.0600.65.61 max 1
5.0600.65.12 max 3
4.0365.00.62
3000K warm white
4860 lm
4.0365.00.63
4500K neutral white
5580 lm
Standard |
180° adjustable
4.0362.00.09
RGB
36 POW-LED all on
43 W
CC 350 mA
30°
medium
UW, 6x1,0 +
2x0,5 qmm
5.0635.09.50 max 1
Standard |
90° adjustable
4.0365.00.09
Underwater environments only
Standard |
180° adjustable
4.0362.00.41
RGB-CW cold white 6000K
coldwhite: 2720 lm
12 Multichip
POW-LED
all on
110 W
12 V DC
30°
medium
UW, 2x2,5 +
4x0,5 qmm
5.0670.09.52 max 1
4.0362.00.42
RGB-WW warm white 3000K
warmwhite: 2095 lm
4.0362.00.43
RGB-NW neutral white 4500K
neutralwhite: 2385 lm
4.0362.00.44
RGB amber
Standard |
90° adjustable
4.0365.00.41
RGB-CW cold white 6000K
coldwhite: 2720 lm
4.0365.00.42
RGB-WW warm white 3000K
warmwhite: 2095 lm
4.0365.00.43
RGB-NW neutral white 4500K
neutralwhite: 2385 lm
4.0365.00.44
RGB amber
IP68
IP69
IK11
STAINLESS
STEEL V4A
1.4571
316Ti
3.000 K
4.500 K
6.000 K
RGB
RGB-W
CONSTANT
CURRENT
CONSTANT
VOLTAGE
DALI
1-10 V
OPTIONAL
DIMM
180°
90°
Notes
· Beam Angle: POW-LED: 10°, 30°, 45°
· POW-LED monochrome, single colour in green, red, amber, blue
· Please order the double cable gland for ring assembly separately (not for
constant current 350 mA)
· 12 V-DC dimmable with dimming module 5.0690.03.15. Note: Other cable to
the spotlight is required. Requires further agreements.
· · Water depths of up to 30 m available (Special version)
· Individual configuration of the LED multichips possible
· SALINE version possible - Article number with an additional „S“ at the end
