| 149

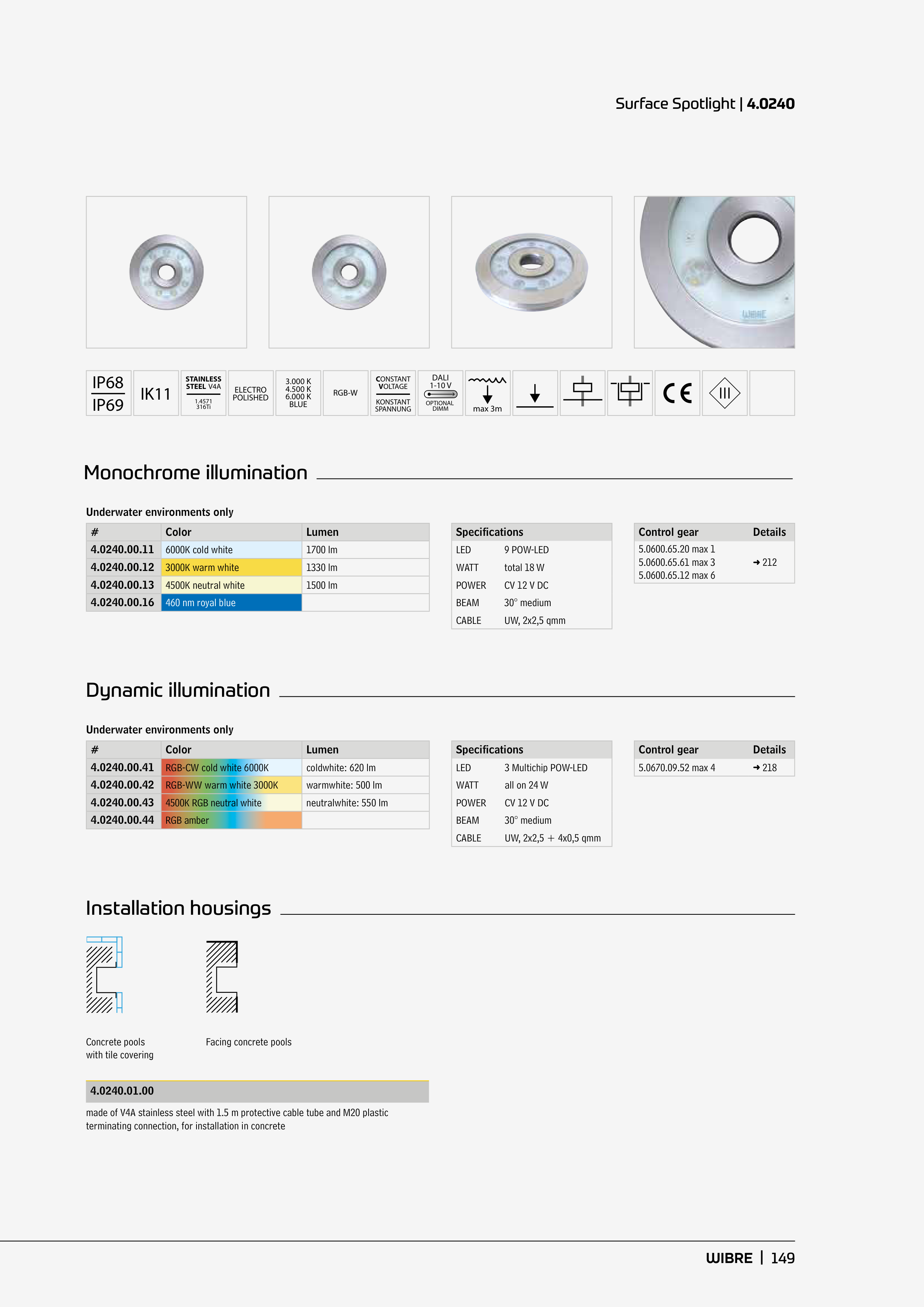

Surface Spotlight | 4.0240
IP68
IP69
IK11
STAINLESS
STEEL V4A
1.4571
316Ti
ELECTRO
POLISHED
3.000 K
4.500 K
6.000 K
BLUE
RGB-W
CONSTANT
VOLTAGE
KONSTANT
SPANNUNG
DALI
1-10 V
OPTIONAL
DIMM
max 3m
Monochrome illumination
Dynamic illumination
Installation housings
Concrete pools
with tile covering
Facing concrete pools
4.0240.01.00
made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic
terminating connection, for installation in concrete
Specifications
LED
3 Multichip POW-LED
WATT
all on 24 W
POWER
CV 12 V DC
BEAM
30° medium
CABLE
UW, 2x2,5 + 4x0,5 qmm
Control gear
Details
5.0670.09.52 max 4
➜ 218
#
Color
Lumen
4.0240.00.41
RGB-CW cold white 6000K
coldwhite: 620 lm
4.0240.00.42
RGB-WW warm white 3000K
warmwhite: 500 lm
4.0240.00.43
4500K RGB neutral white
neutralwhite: 550 lm
4.0240.00.44
RGB amber
Specifications
LED
9 POW-LED
WATT
total 18 W
POWER
CV 12 V DC
BEAM
30° medium
CABLE
UW, 2x2,5 qmm
Control gear
Details
5.0600.65.20 max 1
5.0600.65.61 max 3
5.0600.65.12 max 6
➜ 212
#
Color
Lumen
4.0240.00.11
6000K cold white
1700 lm
4.0240.00.12
3000K warm white
1330 lm
4.0240.00.13
4500K neutral white
1500 lm
4.0240.00.16
460 nm royal blue
Underwater environments only
Underwater environments only
