| 141
Monochrome illumination
Dynamic illumination

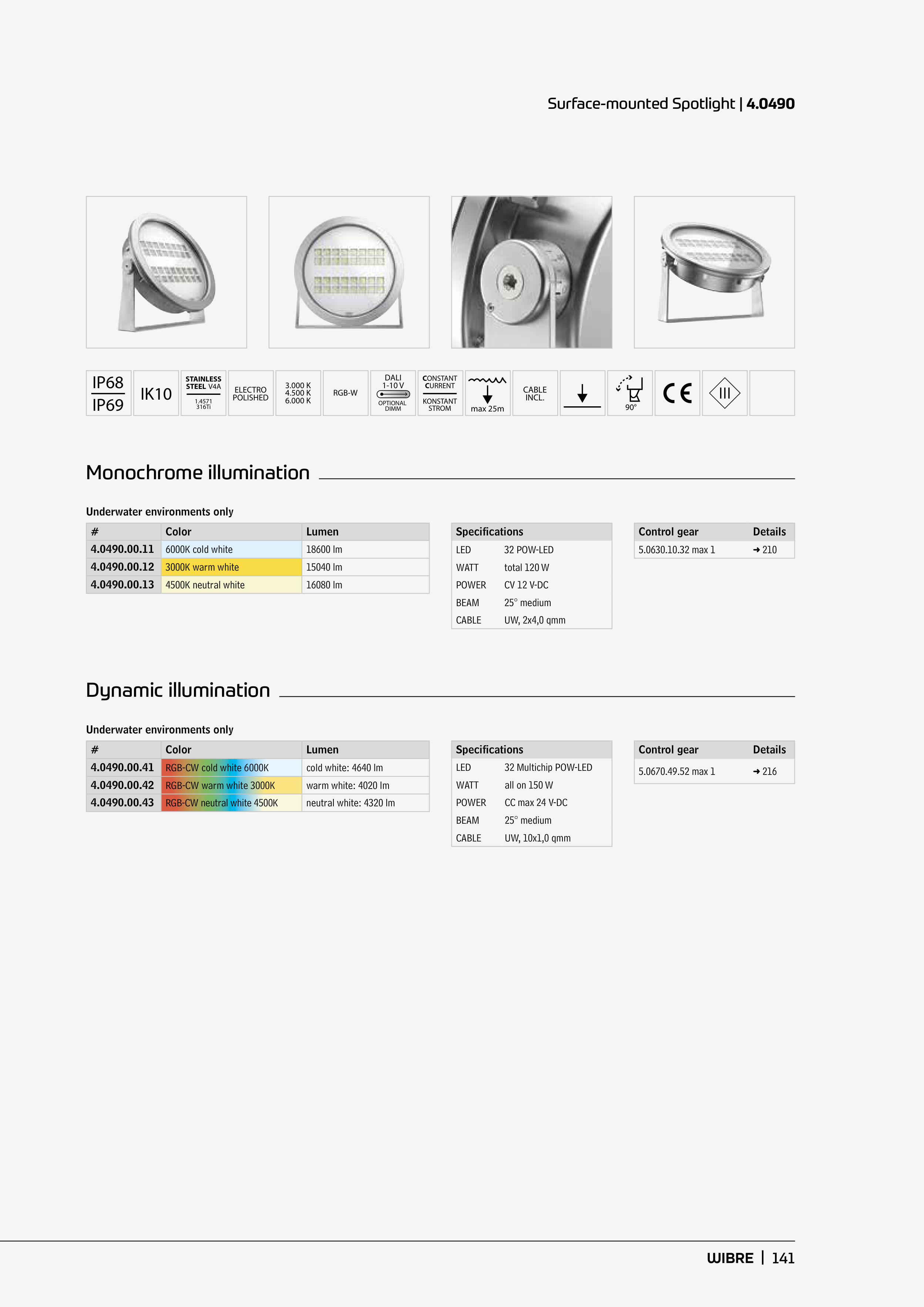

Surface-mounted Spotlight | 4.0490
Specifications
LED
32 POW-LED
WATT
total 120 W
POWER
CV 12 V-DC
BEAM
25° medium
CABLE
UW, 2x4,0 qmm
Control gear
Details
5.0630.10.32 max 1
➜ 210
#
Color
Lumen
4.0490.00.11
6000K cold white
18600 lm
4.0490.00.12
3000K warm white
15040 lm
4.0490.00.13
4500K neutral white
16080 lm
Specifications
LED
32 Multichip POW-LED
WATT
all on 150 W
POWER
CC max 24 V-DC
BEAM
25° medium
CABLE
UW, 10x1,0 qmm
Control gear
Details
5.0670.49.52 max 1
➜ 216
#
Color
Lumen
4.0490.00.41
RGB-CW cold white 6000K
cold white: 4640 lm
4.0490.00.42
RGB-CW warm white 3000K
warm white: 4020 lm
4.0490.00.43
RGB-CW neutral white 4500K
neutral white: 4320 lm
IP68
IP69
IK10
STAINLESS
STEEL V4A
1.4571
316Ti
ELECTRO
POLISHED
3.000 K
4.500 K
6.000 K
RGB-W
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
90°
CONSTANT
CURRENT
KONSTANT
STROM
max 25m
Underwater environments only
Underwater environments only
