| 135

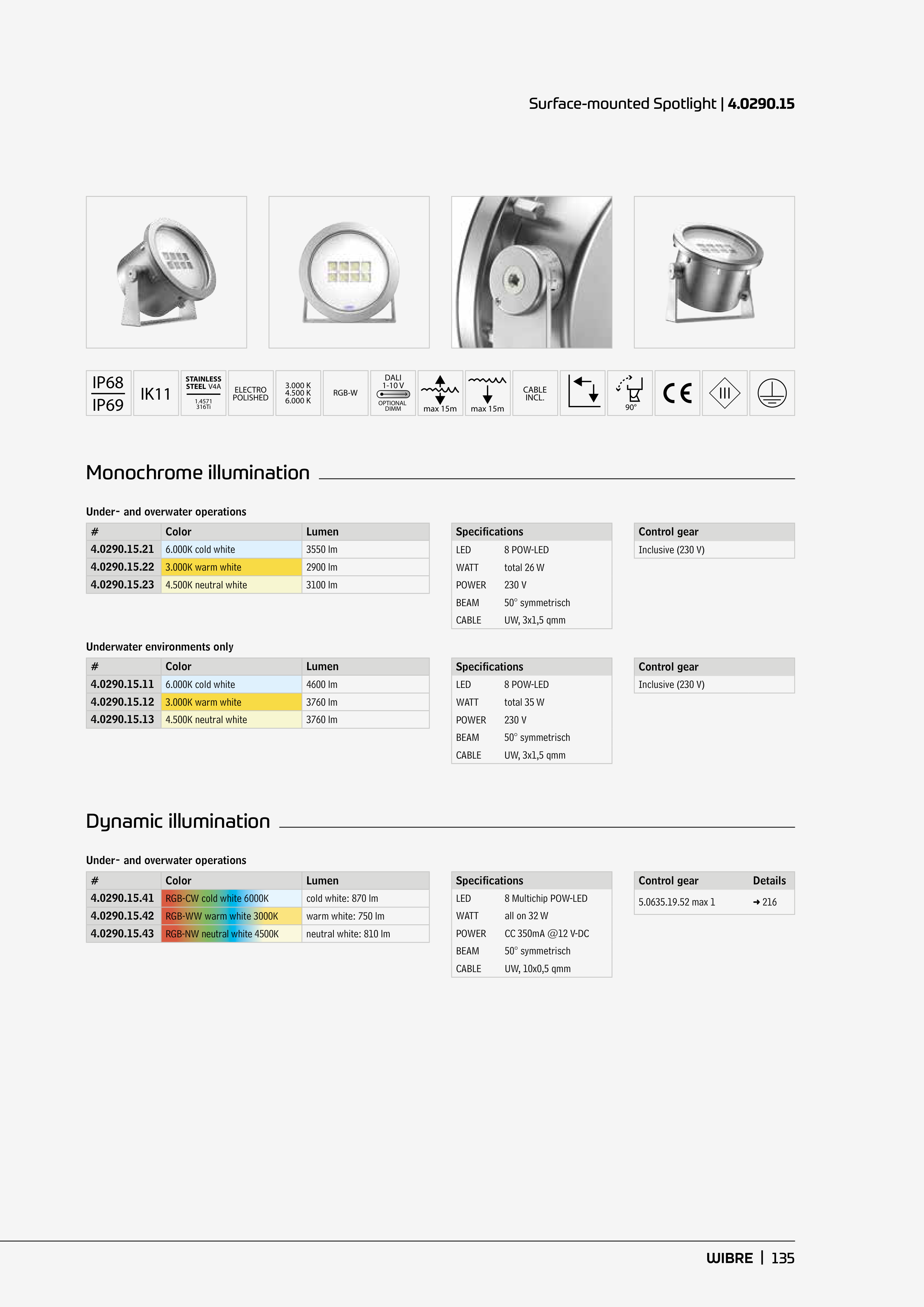

Surface-mounted Spotlight | 4.0290.15
IP68
IP69
IK11
STAINLESS
STEEL V4A
1.4571
316Ti
ELECTRO
POLISHED
3.000 K
4.500 K
6.000 K
RGB-W
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
90°
max 15m
max 15m
Monochrome illumination
Dynamic illumination
Specifications
LED
8 Multichip POW-LED
WATT
all on 32 W
POWER
CC 350mA @12 V-DC
BEAM
50° symmetrisch
CABLE
UW, 10x0,5 qmm
Control gear
Details
5.0635.19.52 max 1
➜ 216
#
Color
Lumen
4.0290.15.41
RGB-CW cold white 6000K
cold white: 870 lm
4.0290.15.42
RGB-WW warm white 3000K
warm white: 750 lm
4.0290.15.43
RGB-NW neutral white 4500K
neutral white: 810 lm
Specifications
LED
8 POW-LED
WATT
total 26 W
POWER
230 V
BEAM
50° symmetrisch
CABLE
UW, 3x1,5 qmm
Control gear
Inclusive (230 V)
#
Color
Lumen
4.0290.15.21
6.000K cold white
3550 lm
4.0290.15.22
3.000K warm white
2900 lm
4.0290.15.23
4.500K neutral white
3100 lm
Specifications
LED
8 POW-LED
WATT
total 35 W
POWER
230 V
BEAM
50° symmetrisch
CABLE
UW, 3x1,5 qmm
Control gear
Inclusive (230 V)
#
Color
Lumen
4.0290.15.11
6.000K cold white
4600 lm
4.0290.15.12
3.000K warm white
3760 lm
4.0290.15.13
4.500K neutral white
3760 lm
Under- and overwater operations
Under- and overwater operations
Underwater environments only
