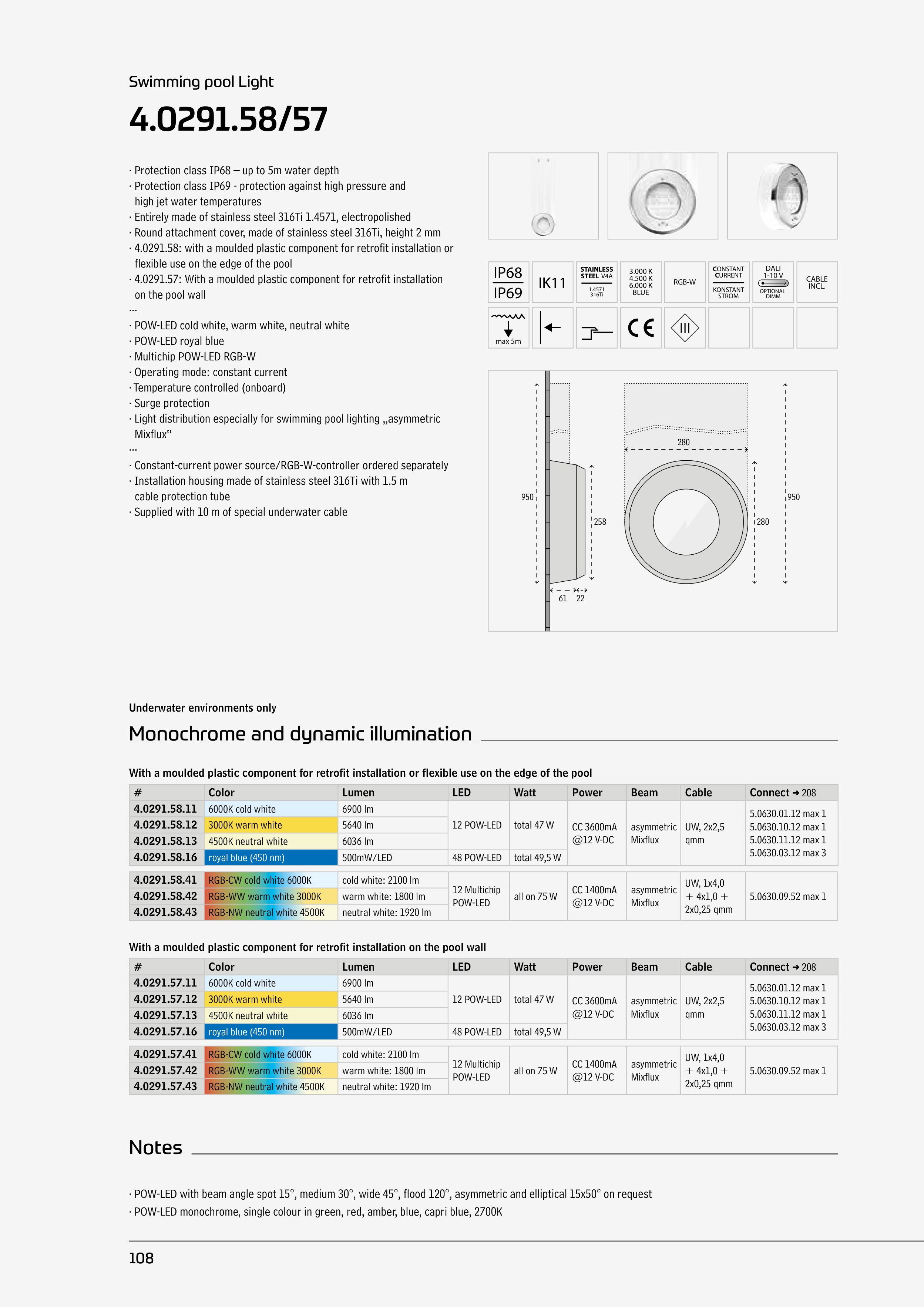

4.0291.58/57
Swimming pool Light
· Protection class IP68 – up to 5m water depth
· Protection class IP69 - protection against high pressure and
high jet water temperatures
· Entirely made of stainless steel 316Ti 1.4571, electropolished
· Round attachment cover, made of stainless steel 316Ti, height 2 mm
· 4.0291.58: with a moulded plastic component for retrofit installation or
flexible use on the edge of the pool
· 4.0291.57: With a moulded plastic component for retrofit installation
on the pool wall
···
· POW-LED cold white, warm white, neutral white
· POW-LED royal blue
· Multichip POW-LED RGB-W
· Operating mode: constant current
· Temperature controlled (onboard)
· Surge protection
· Light distribution especially for swimming pool lighting „asymmetric
Mixflux“
···
· Constant-current power source/RGB-W-controller ordered separately
· Installation housing made of stainless steel 316Ti with 1.5 m
cable protection tube
· Supplied with 10 m of special underwater cable
IP68
IP69
IK11
STAINLESS
STEEL V4A
1.4571
316Ti
3.000 K
4.500 K
6.000 K
BLUE
RGB-W
CONSTANT
CURRENT
KONSTANT
STROM
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
max 5m
950
61
280
258
280
950
22
Monochrome and dynamic illumination
#
Color
Lumen
LED
Watt
Power
Beam
Cable
Connect ➜ 208
4.0291.58.11
6000K cold white
6900 lm
12 POW-LED
total 47 W
CC 3600mA
@12 V-DC
asymmetric
Mixflux
UW, 2x2,5
qmm
5.0630.01.12 max 1
5.0630.10.12 max 1
5.0630.11.12 max 1
5.0630.03.12 max 3
4.0291.58.12
3000K warm white
5640 lm
4.0291.58.13
4500K neutral white
6036 lm
4.0291.58.16
royal blue (450 nm)
500mW/LED
48 POW-LED
total 49,5 W
4.0291.58.41
RGB-CW cold white 6000K
cold white: 2100 lm
12 Multichip
POW-LED
all on 75 W
CC 1400mA
@12 V-DC
asymmetric
Mixflux
UW, 1x4,0
+ 4x1,0 +
2x0,25 qmm
5.0630.09.52 max 1
4.0291.58.42
RGB-WW warm white 3000K
warm white: 1800 lm
4.0291.58.43
RGB-NW neutral white 4500K
neutral white: 1920 lm
With a moulded plastic component for retrofit installation on the pool wall
#
Color
Lumen
LED
Watt
Power
Beam
Cable
Connect ➜ 208
4.0291.57.11
6000K cold white
6900 lm
12 POW-LED
total 47 W
CC 3600mA
@12 V-DC
asymmetric
Mixflux
UW, 2x2,5
qmm
5.0630.01.12 max 1
5.0630.10.12 max 1
5.0630.11.12 max 1
5.0630.03.12 max 3
4.0291.57.12
3000K warm white
5640 lm
4.0291.57.13
4500K neutral white
6036 lm
4.0291.57.16
royal blue (450 nm)
500mW/LED
48 POW-LED
total 49,5 W
4.0291.57.41
RGB-CW cold white 6000K
cold white: 2100 lm
12 Multichip
POW-LED
all on 75 W
CC 1400mA
@12 V-DC
asymmetric
Mixflux
UW, 1x4,0
+ 4x1,0 +
2x0,25 qmm
5.0630.09.52 max 1
4.0291.57.42
RGB-WW warm white 3000K
warm white: 1800 lm
4.0291.57.43
RGB-NW neutral white 4500K
neutral white: 1920 lm
Notes
· POW-LED with beam angle spot 15°, medium 30°, wide 45°, flood 120°, asymmetric and elliptical 15x50° on request
· POW-LED monochrome, single colour in green, red, amber, blue, capri blue, 2700K
With a moulded plastic component for retrofit installation or flexible use on the edge of the pool
