| 107
463
350-500
320
4.2012

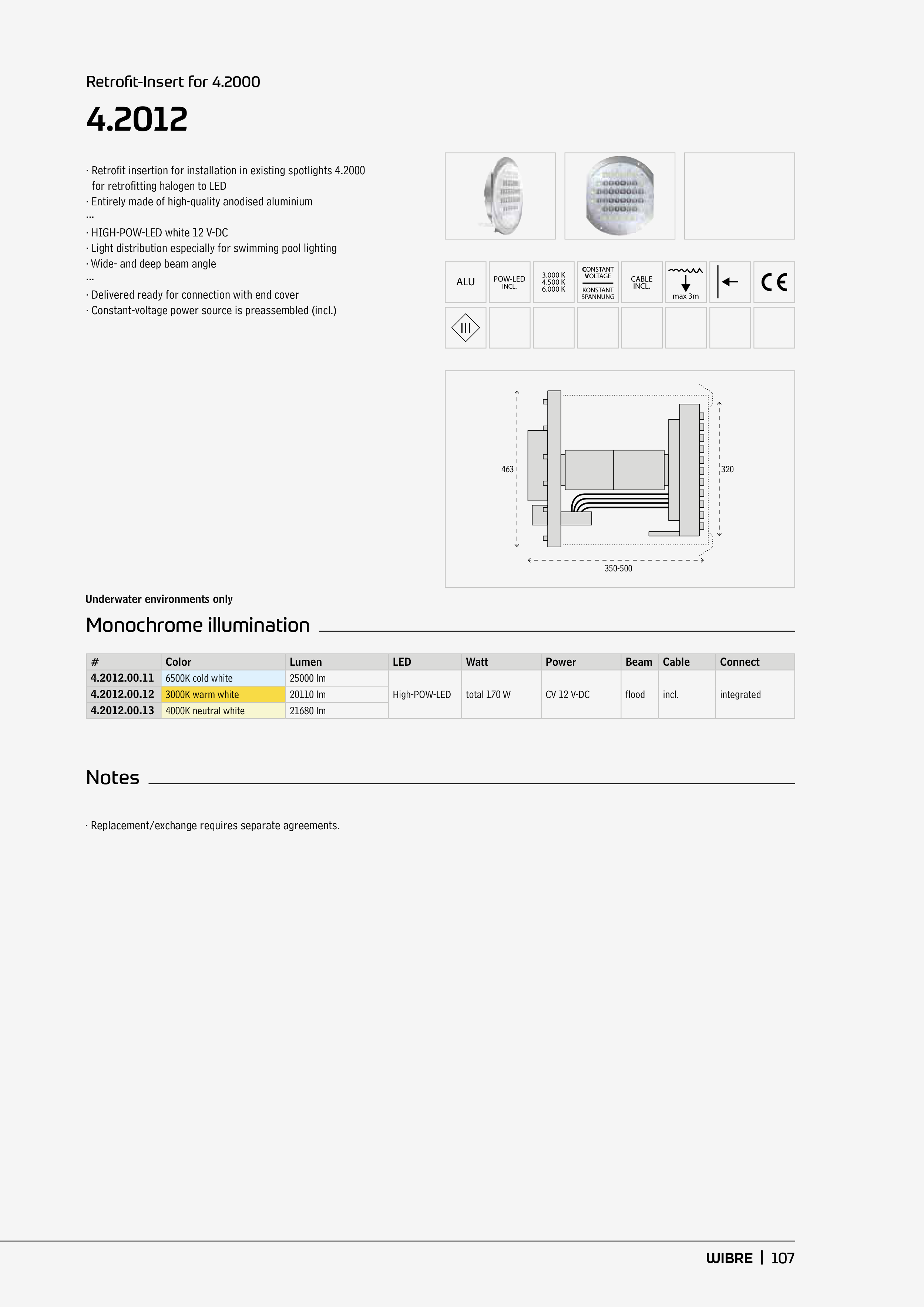

Retrofit-Insert for 4.2000
· Retrofit insertion for installation in existing spotlights 4.2000
for retrofitting halogen to LED
· Entirely made of high-quality anodised aluminium
···
· HIGH-POW-LED white 12 V-DC
· Light distribution especially for swimming pool lighting
· Wide- and deep beam angle
···
· Delivered ready for connection with end cover
· Constant-voltage power source is preassembled (incl.)
#
Color
Lumen
LED
Watt
Power
Beam
Cable
Connect
4.2012.00.11
6500K cold white
25000 lm
High-POW-LED
total 170 W
CV 12 V-DC
flood
incl.
integrated
4.2012.00.12
3000K warm white
20110 lm
4.2012.00.13
4000K neutral white
21680 lm
Monochrome illumination
ALU
POW-LED
INCL.
3.000 K
4.500 K
6.000 K
CONSTANT
VOLTAGE
KONSTANT
SPANNUNG
CABLE
INCL.
max 3m
Notes
· Replacement/exchange requires separate agreements.
Underwater environments only
