100
4.0199

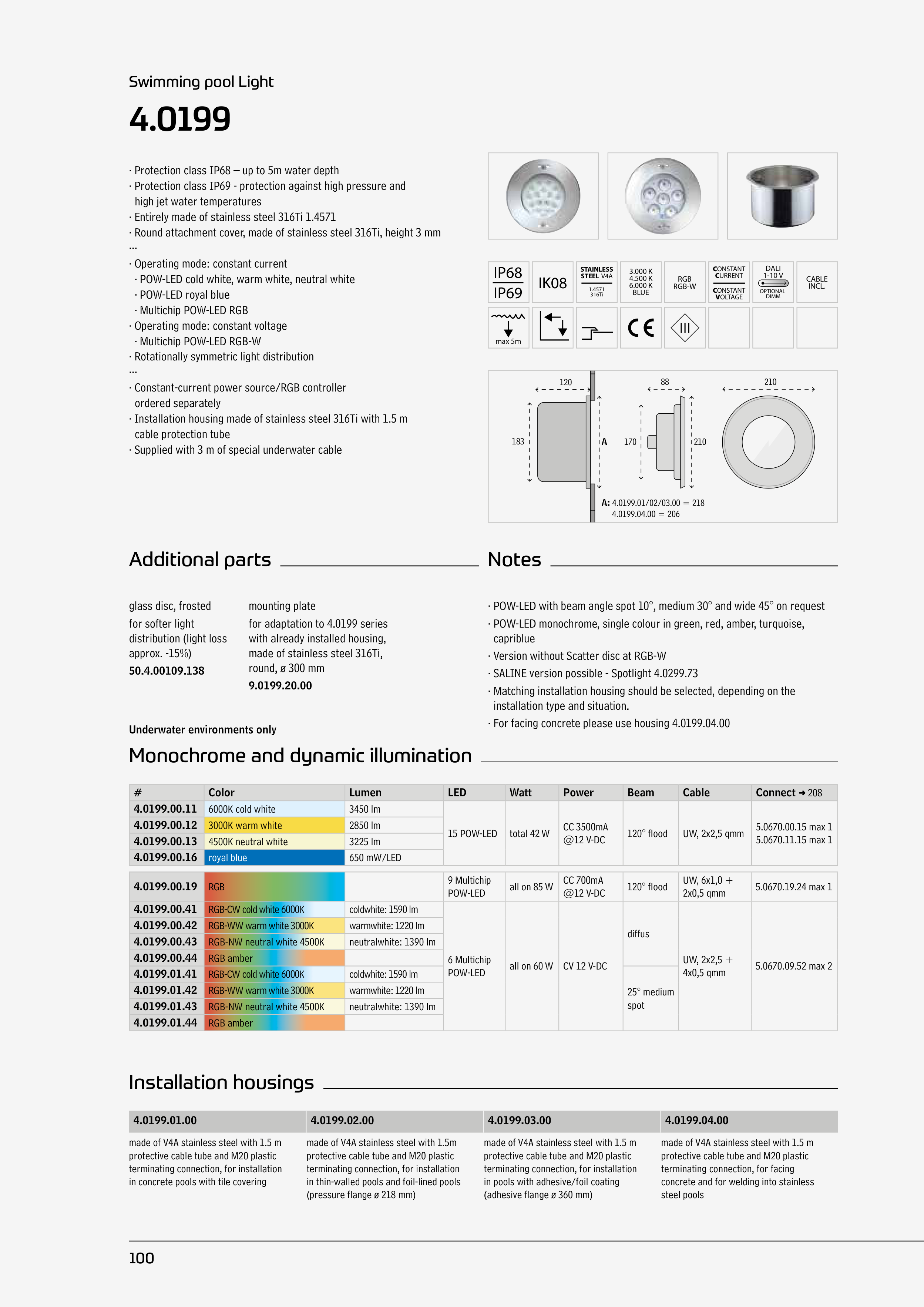

Swimming pool Light
Monochrome and dynamic illumination
Additional parts
glass disc, frosted
for softer light
distribution (light loss
approx. -15%)
50.4.00109.138
mounting plate
for adaptation to 4.0199 series
with already installed housing,
made of stainless steel 316Ti,
round, ø 300 mm
9.0199.20.00
IP68
IP69
IK08
STAINLESS
STEEL V4A
1.4571
316Ti
3.000 K
4.500 K
6.000 K
BLUE
RGB
RGB-W
CONSTANT
CURRENT
CONSTANT
VOLTAGE
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
max 5m
· Protection class IP68 – up to 5m water depth
· Protection class IP69 - protection against high pressure and
high jet water temperatures
· Entirely made of stainless steel 316Ti 1.4571
· Round attachment cover, made of stainless steel 316Ti, height 3 mm
···
· Operating mode: constant current
· POW-LED cold white, warm white, neutral white
· POW-LED royal blue
· Multichip POW-LED RGB
· Operating mode: constant voltage
· Multichip POW-LED RGB-W
· Rotationally symmetric light distribution
···
· Constant-current power source/RGB controller
ordered separately
· Installation housing made of stainless steel 316Ti with 1.5 m
cable protection tube
· Supplied with 3 m of special underwater cable
210
183
170
A
88
210
120
A: 4.0199.01/02/03.00 = 218
4.0199.04.00 = 206
Notes
· POW-LED with beam angle spot 10°, medium 30° and wide 45° on request
· POW-LED monochrome, single colour in green, red, amber, turquoise,
capriblue
· Version without Scatter disc at RGB-W
· SALINE version possible - Spotlight 4.0299.73
· Matching installation housing should be selected, depending on the
installation type and situation.
· For facing concrete please use housing 4.0199.04.00
#
Color
Lumen
LED
Watt
Power
Beam
Cable
Connect ➜ 208
4.0199.00.11
6000K cold white
3450 lm
15 POW-LED
total 42 W
CC 3500mA
@12 V-DC
120° flood
UW, 2x2,5 qmm
5.0670.00.15 max 1
5.0670.11.15 max 1
4.0199.00.12
3000K warm white
2850 lm
4.0199.00.13
4500K neutral white
3225 lm
4.0199.00.16
royal blue
650 mW/LED
4.0199.00.19
RGB
9 Multichip
POW-LED
all on 85 W
CC 700mA
@12 V-DC
120° flood
UW, 6x1,0 +
2x0,5 qmm
5.0670.19.24 max 1
4.0199.00.41
RGB-CW cold white 6000K
coldwhite: 1590 lm
6 Multichip
POW-LED
all on 60 W
CV 12 V-DC
diffus
UW, 2x2,5 +
4x0,5 qmm
5.0670.09.52 max 2
4.0199.00.42
RGB-WW warm white 3000K
warmwhite: 1220 lm
4.0199.00.43
RGB-NW neutral white 4500K
neutralwhite: 1390 lm
4.0199.00.44
RGB amber
4.0199.01.41
RGB-CW cold white 6000K
coldwhite: 1590 lm
25° medium
spot
4.0199.01.42
RGB-WW warm white 3000K
warmwhite: 1220 lm
4.0199.01.43
RGB-NW neutral white 4500K
neutralwhite: 1390 lm
4.0199.01.44
RGB amber
Installation housings
4.0199.01.00
4.0199.02.00
4.0199.03.00
4.0199.04.00
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for installation
in concrete pools with tile covering
made of V4A stainless steel with 1.5m
protective cable tube and M20 plastic
terminating connection, for installation
in thin-walled pools and foil-lined pools
(pressure flange ø 218 mm)
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for installation
in pools with adhesive/foil coating
(adhesive flange ø 360 mm)
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for facing
concrete and for welding into stainless
steel pools
Underwater environments only
