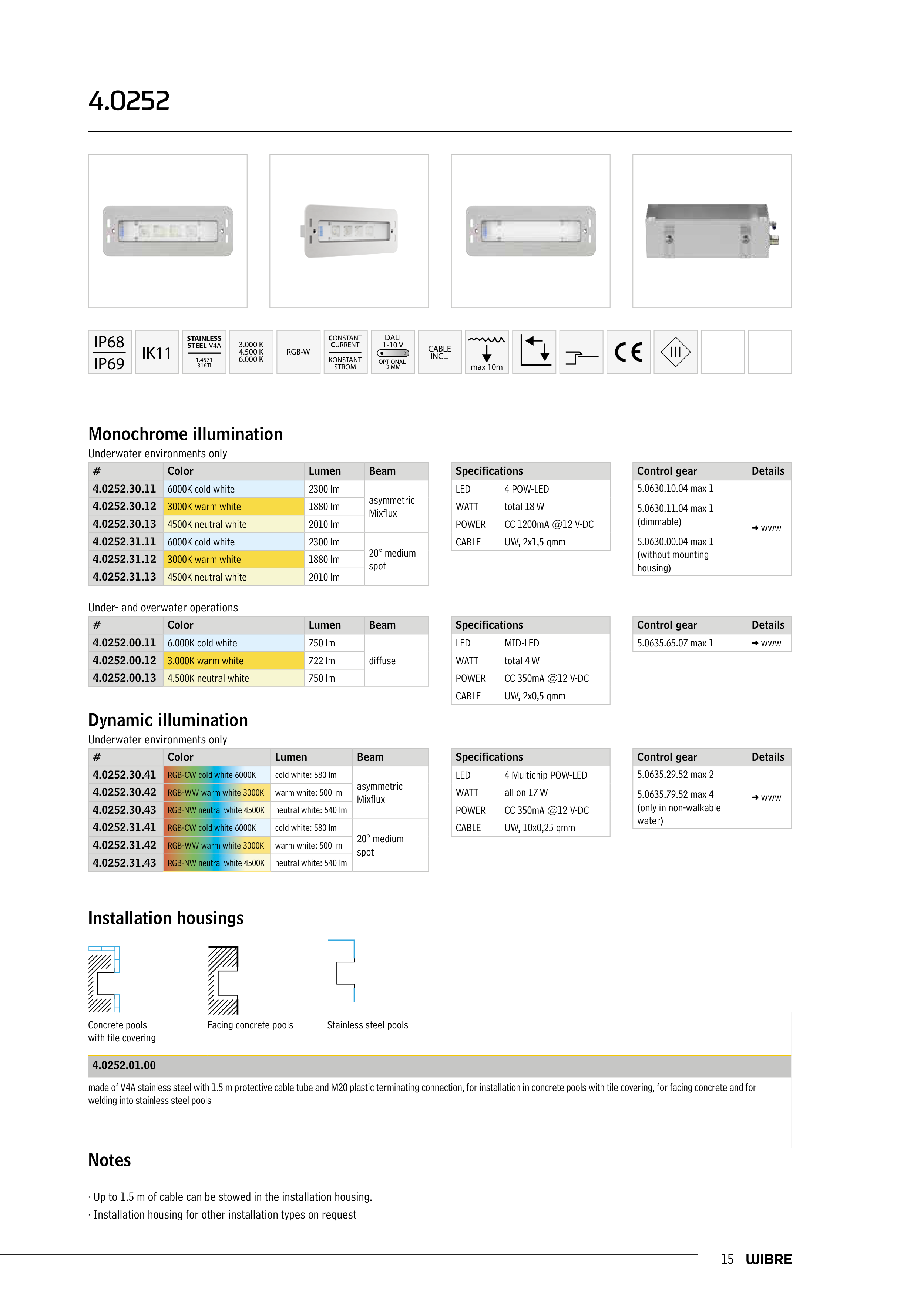

4.0252
IP68
IP69
IK11
STAINLESS
STEEL V4A
1.4571
316Ti
3.000 K
4.500 K
6.000 K
RGB-W
CONSTANT
CURRENT
KONSTANT
STROM
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
max 10m
Monochrome illumination
Dynamic illumination
Notes
· Up to 1.5 m of cable can be stowed in the installation housing.
· Installation housing for other installation types on request
Installation housings
Specifications
LED
4 POW-LED
WATT
total 18 W
POWER
CC 1200mA @12 V-DC
CABLE
UW, 2x1,5 qmm
Specifications
LED
MID-LED
WATT
total 4 W
POWER
CC 350mA @12 V-DC
CABLE
UW, 2x0,5 qmm
Control gear
Details
5.0630.10.04 max 1
5.0630.11.04 max 1
(dimmable)
5.0630.00.04 max 1
(without mounting
housing)
➜ www
Control gear
Details
5.0635.65.07 max 1
➜ www
#
Color
Lumen
Beam
4.0252.30.11
6000K cold white
2300 lm
asymmetric
Mixflux
4.0252.30.12
3000K warm white
1880 lm
4.0252.30.13
4500K neutral white
2010 lm
4.0252.31.11
6000K cold white
2300 lm
20° medium
spot
4.0252.31.12
3000K warm white
1880 lm
4.0252.31.13
4500K neutral white
2010 lm
#
Color
Lumen
Beam
4.0252.00.11
6.000K cold white
750 lm
diffuse
4.0252.00.12
3.000K warm white
722 lm
4.0252.00.13
4.500K neutral white
750 lm
Underwater environments only
Underwater environments only
Under- and overwater operations
Specifications
LED
4 Multichip POW-LED
WATT
all on 17 W
POWER
CC 350mA @12 V-DC
CABLE
UW, 10x0,25 qmm
Control gear
Details
5.0635.29.52 max 2
5.0635.79.52 max 4
(only in non-walkable
water)
➜ www
#
Color
Lumen
Beam
4.0252.30.41
RGB-CW cold white 6000K
cold white: 580 lm
asymmetric
Mixflux
4.0252.30.42
RGB-WW warm white 3000K
warm white: 500 lm
4.0252.30.43
RGB-NW neutral white 4500K
neutral white: 540 lm
4.0252.31.41
RGB-CW cold white 6000K
cold white: 580 lm
20° medium
spot
4.0252.31.42
RGB-WW warm white 3000K
warm white: 500 lm
4.0252.31.43
RGB-NW neutral white 4500K
neutral white: 540 lm
Concrete pools
with tile covering
Facing concrete pools
Stainless steel pools
4.0252.01.00
made of V4A stainless steel with 1.5 m protective cable tube and M20 plastic terminating connection, for installation in concrete pools with tile covering, for facing concrete and for
welding into stainless steel pools
15
