CONFIGURATION
DIMENSIONS
LIGHT COLORS
BEAM ANGLES
ADDITIONAL PARTS
59
56
50
OPTION
OPTION
glass disc, frosted
for softer light distribution (light
loss approx. -15 %)
#50.40050.0003
spike
stainless steel, 205 mm
#9.0050.20.00
anti-glare louver
black, for POW-LED
#35.40050.0001
Extension arm
Stainless steel 316Ti,
length 750 mm
#9.0050.21.20
Anti-glare ring
1/2-Version, Stainless steel
316Ti, ø 57mm, length 70mm
#9.0050.00.70
Anti-glare ring
1/1-Version, Stainless steel
316Ti, ø 57 mm, length 70 mm
#9.0050.10.70
6000K
cold white
STANDARD
OPTION
4500K
neutral white
3000K
warm white
2700K
Dynamic white
3000-6000K
green
red
blue
RGB-6000K
+cold white
RGB-3000K
+warm white
RGB-4500K
+neutral white

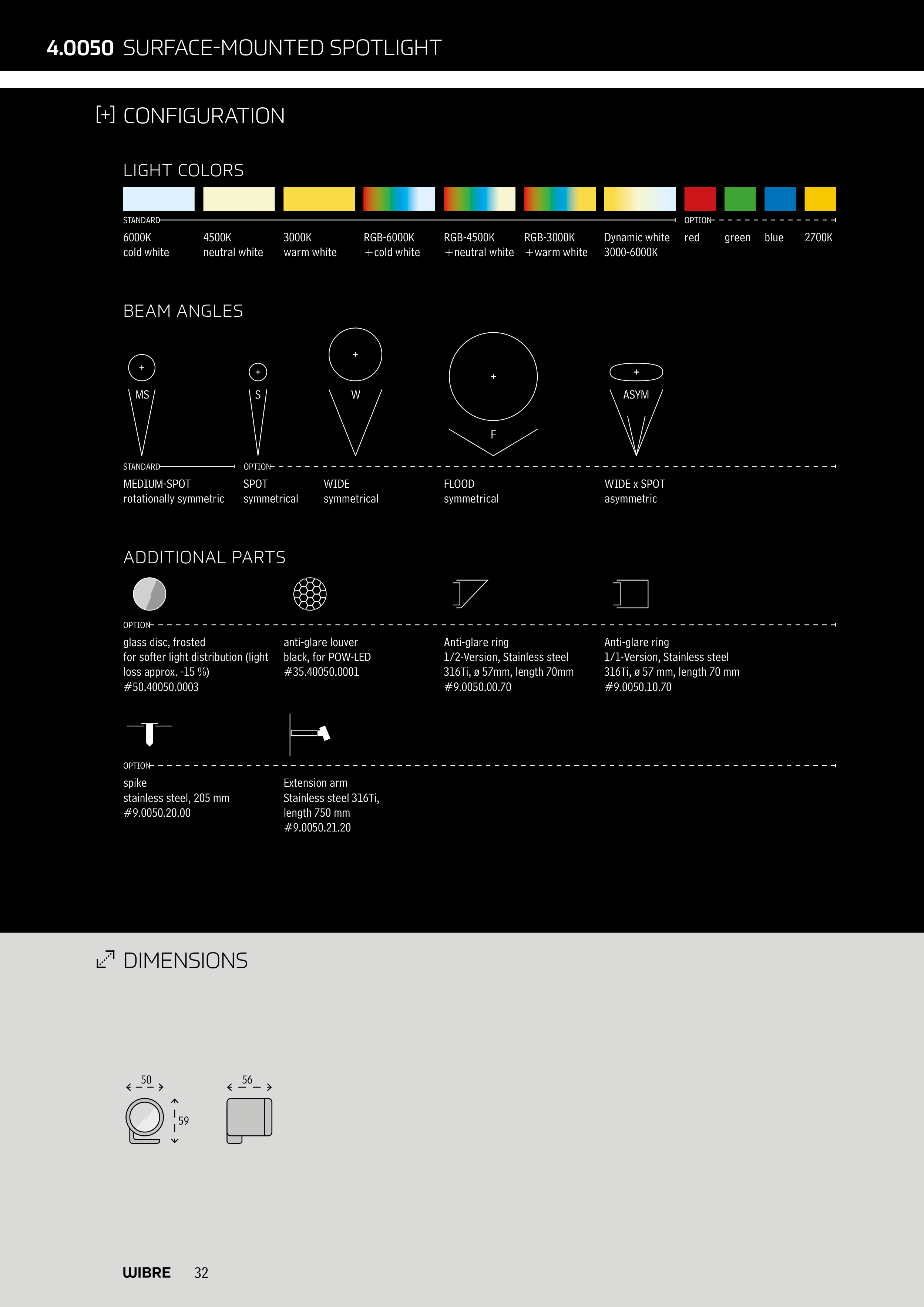

4.0050 SURFACE-MOUNTED SPOTLIGHT
STANDARD
OPTION
MEDIUM-SPOT
rotationally symmetric
SPOT
symmetrical
WIDE
symmetrical
FLOOD
symmetrical
WIDE x SPOT
asymmetric
F
ASYM
W
S
MS
32
