MONOCHROME ILLUMINATION
DYNAMIC ILLUMINATION
INSTALLATION HOUSINGS
USE IN SALT WATER
This spotlight is also available as a salt-water version. Spotlights for salty
water (with a saltwater concentration of up to 3.5 % ) are made of special
V4A stainless steel 904L (1.4539).
# 4.0292.03.00
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for installation in
pools with adhesive/foil coating
(adhesive flange ø 350 mm)
# 4.0292.02.00
made of V4A stainless steel with 1.5m
protective cable tube and M20 plastic
terminating connection, for installation
in thin-walled pools and foil lined pools
(pressure flange ø 244 mm)
# 4.0292.01.00
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for welding into
stainless steel pools and for installation in
concrete pools with tile covering
#
4.0292.00.43
COLOR
RGB-NW neutral white 4500K
LED
12 Multichip POW-LED
LUMEN
neutral white: 1920 lm
WATT
all on 75 W
POWER
CC 1400mA @12 V-DC
BEAM
asymmetrisch Mixflux
CABLE
UW, 1x4,0 + 4x1,0 + 2x0,25
qmm
CONNECT
5.0630.09.52 max 1
#
4.0292.00.42
COLOR
RGB-WW warm white 3000K
LED
12 Multichip POW-LED
LUMEN
warm white: 1800 lm
WATT
all on 75 W
POWER
CC 1400mA @12 V-DC
BEAM
asymmetrisch Mixflux
CABLE
UW, 1x4,0 + 4x1,0 + 2x0,25
qmm
CONNECT
5.0630.09.52 max 1
#
4.0292.00.41
COLOR
RGB-CW cold white 6000K
LED
12 Multichip POW-LED
LUMEN
cold white: 2100 lm
WATT
all on 75 W
POWER
CC 1400mA @12 V-DC
BEAM
asymmetrisch Mixflux
CABLE
UW, 1x4,0 + 4x1,0 + 2x0,25
qmm
CONNECT
5.0630.09.52 max 1
#
4.0292.00.16
COLOR
royal blue (450 nm)
LED
48 POW-LED
LUMEN
500mW/LED
WATT
total 49,5 W
POWER
CC 3600mA @12 V-DC
BEAM
asymmetrisch Mixflux
CABLE
UW, 2x2,5 qmm
CONNECT
5.0630.01.12 max 1
5.0630.03.12 max 3
#
4.0292.00.13
COLOR
4500K neutral white
LED
12 POW-LED
LUMEN
6036 lm
WATT
total 47 W
POWER
CC 3600mA @12 V-DC
BEAM
asymmetrisch Mixflux
CABLE
UW, 2x2,5 qmm
CONNECT
5.0630.01.12 max 1
5.0630.03.12 max 3
#
4.0292.00.12
COLOR
3000K warm white
LED
12 POW-LED
LUMEN
5640 lm
WATT
total 47 W
POWER
CC 3600mA @12 V-DC
BEAM
asymmetrisch Mixflux
CABLE
UW, 2x2,5 qmm
CONNECT
5.0630.01.12 max 1
5.0630.03.12 max 3
#
4.0292.00.11
COLOR
6000K cold white
LED
12 POW-LED
LUMEN
6900 lm
WATT
total 47 W
POWER
CC 3600mA @12 V-DC
BEAM
asymmetrisch Mixflux
CABLE
UW, 2x2,5 qmm
CONNECT
5.0630.01.12 max 1
5.0630.03.12 max 3
IP68
STAINLESS
STEEL V4A
1.4571
316Ti
POW-LED
INCL.
3.000 K
4.500 K
6.000 K
BLUE
RGB-W
CONSTANT
CURRENT
KONSTANT
STROM
DALI
1-10 V
OPTIONAL
DIMM
CABLE
INCL.
max 5m

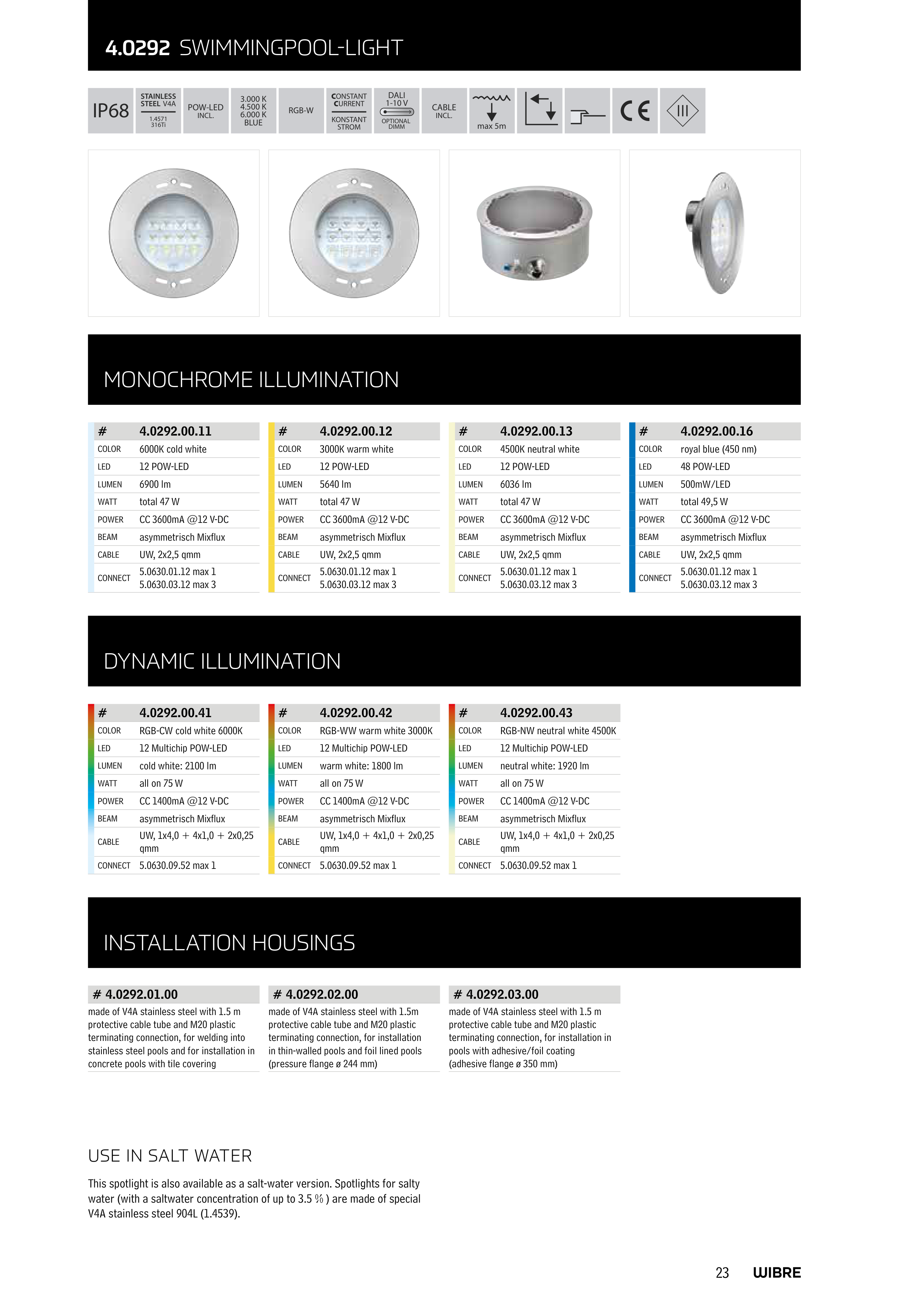

4.0292 SWIMMINGPOOL-LIGHT
23
