CONFIGURATION
DIMENSIONS
LIGHT COLORS
BEAM ANGLES
ADDITIONAL PARTS
INSTALLATION TYPES
concrete pools
with tile covering
foil lined pools
(pressure flange)
thin-walled pools
(pressure flange)
pools with adhesive/
foil coating
(adhesive flange)
stainless steel pools
facing concrete pools
150
150
55
86

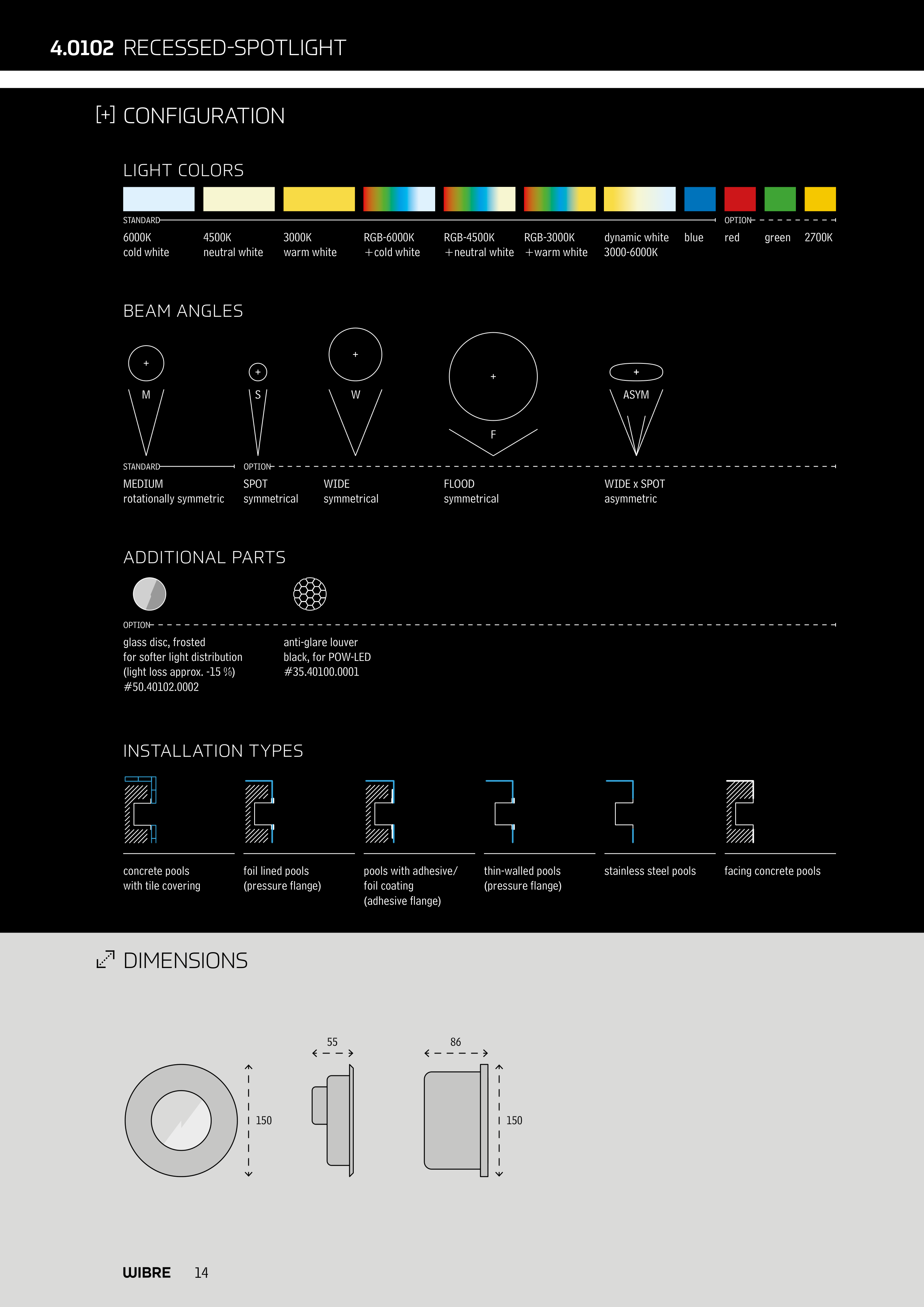

4.0102 RECESSED-SPOTLIGHT
OPTION
glass disc, frosted
for softer light distribution
(light loss approx. -15 %)
#50.40102.0002
anti-glare louver
black, for POW-LED
#35.40100.0001
STANDARD
OPTION
MEDIUM
rotationally symmetric
SPOT
symmetrical
WIDE
symmetrical
FLOOD
symmetrical
WIDE x SPOT
asymmetric
F
ASYM
W
S
M
6000K
cold white
STANDARD
OPTION
4500K
neutral white
3000K
warm white
2700K
dynamic white
3000-6000K
green
red
blue
RGB-6000K
+cold white
RGB-3000K
+warm white
RGB-4500K
+neutral white
14
